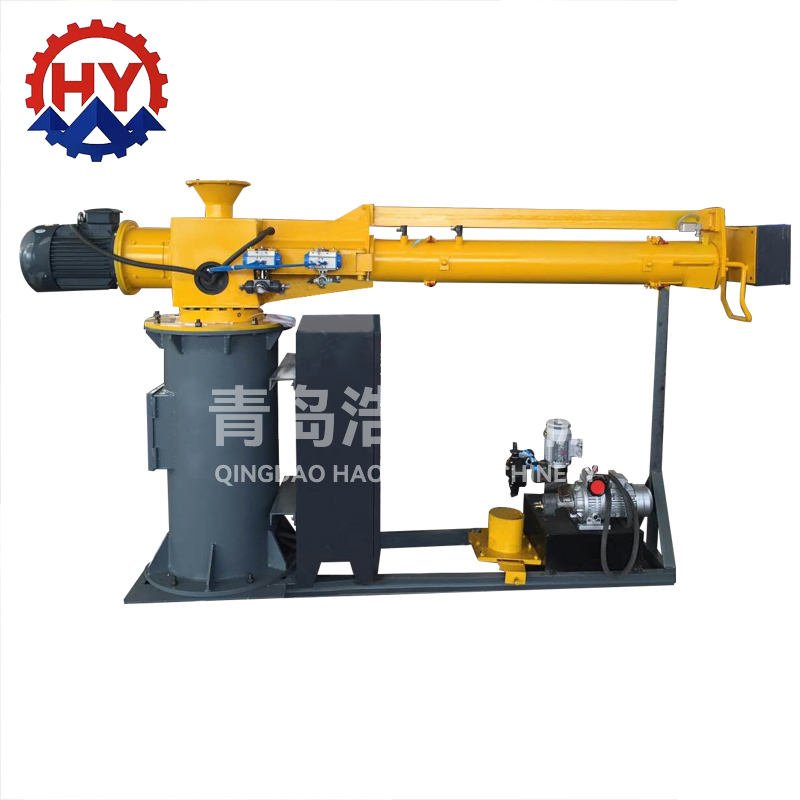

One-Arm Fixed Resin Sand Mixer Automatic Molding Machine Furan Alkali Phenolic Resin Parts Metal Casting

One-Arm Fixed Resin Sand Mixer Automatic Molding Machine Furan Alkali Phenolic Resin Parts Metal Casting

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

It is widely used in the mixing of self hardening sand for large cast iron, cast steel and other castings. The machine is a elevating sand mixer, which is easy to operate and has fullfunctions . It can be adjusted and selected according to diferentcharacteristics of resin sand technology. The machine is mainly composed of sand mixer, electriccontrolsystem,air control system, dust removal system, etc.

Professional resin sand processing equipment

00:07

01:00

Technical Parameter

item	value
weight (kg)	7000
warranty	1 years
place of origin	China
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

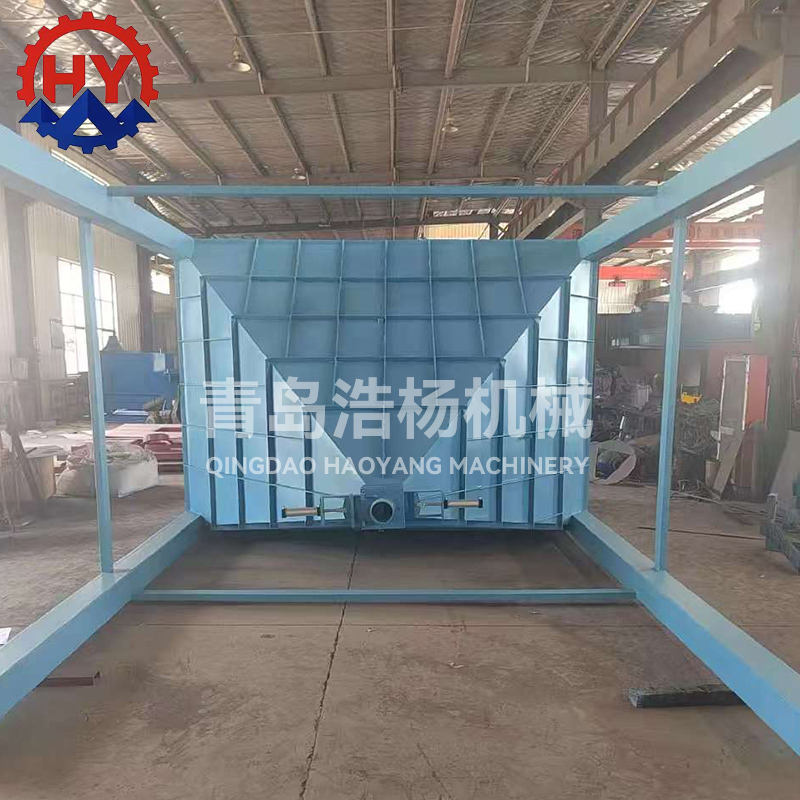

The machine is mainly composed of sand mixer, sand hopper, electriccontrolsystem,air control system, dust removal system, etc

Product Application

It is widely used in the mixing of self hardening sand for large cast ron, cast steel and other castings.

It can be adjusted and selected according to diferentcharacteristics of resin sand technology.

Product Features

The adhesive supply system adopts electric variable diaphragm pump and gear pump, which are lightweight, small in size, compact in
structure, and have stable and reliable flow rate.

Uniform sand mixing effectively ensures the quality of shaping (core making). Short mixing time and minimal loss of head and
tail sand. After the machine is stopped, the material is clean.structure, and have stable and reliable flow rate.

This series of double arm continuous resin sand mixer is mainly used for mixing resin self hardening sand and sodium silicate sand.

Featuring a fully open sand mixing cage wall, it facilitates the cleaning and adjustment of the cage wall and blades. Easy to operate and maintain.The single arm rotating structure is simple and requires less investment in equipment. According to the needs, a new old sand ratio regulator can be configured at the inlet of the sand mixer, which can accurately control the ratio regulator of new and old sand, accurately control the sand output and ratio of new and old sand, and select and
change according to the pre adjusted ratio during the sand mixing process.

Electric Control System

The electronic control system adopts a programmable controller and is equipped with sufficient work display restriction protection
and fault display, ensuring reliable operation.

Advantages of resin sand processing equipment

Sand abrasion groove plate and the blade have less abrasion and the engine temperature is lower and mixing sand is uniform, when sand is being mixed.

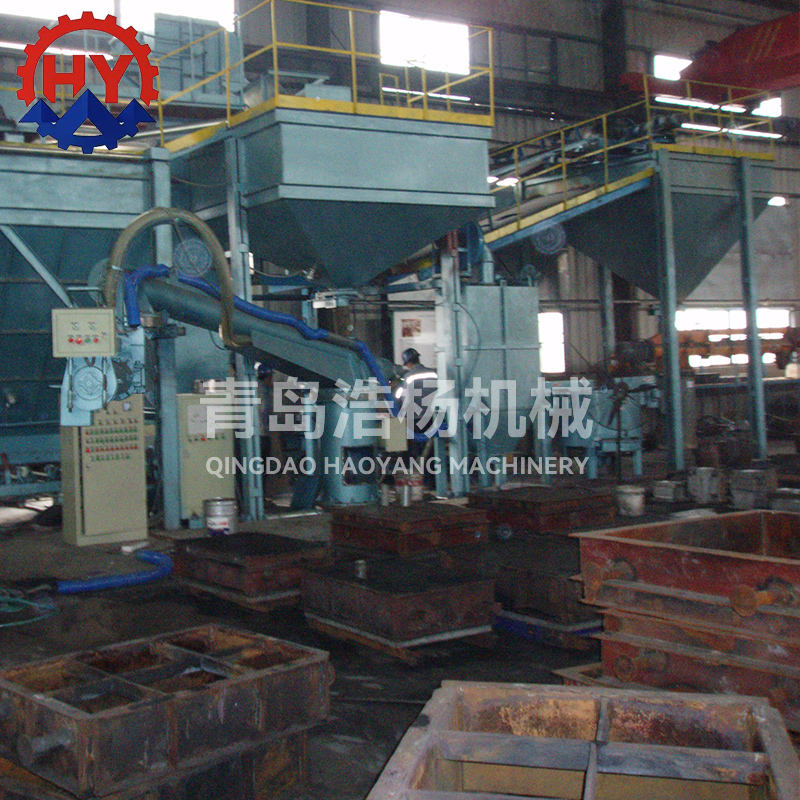

Workshop

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!

Company Profile

Packing & Delivery

FAQ

1. What is the delivery time?

20-40 working day, based on factory’s production order conditions.

2. How to installation shot blasting machine?

We supply overseas service, engineer can go to your place guide installation and debugging.

3. What size machine suit for us?

We design machine following your request, usually based on your workpiece size, weight and efficiency.

4. How long is the guarantee period?

One year warranty

5. How it control for whole work?

PLC control, setup safety interlock device between system

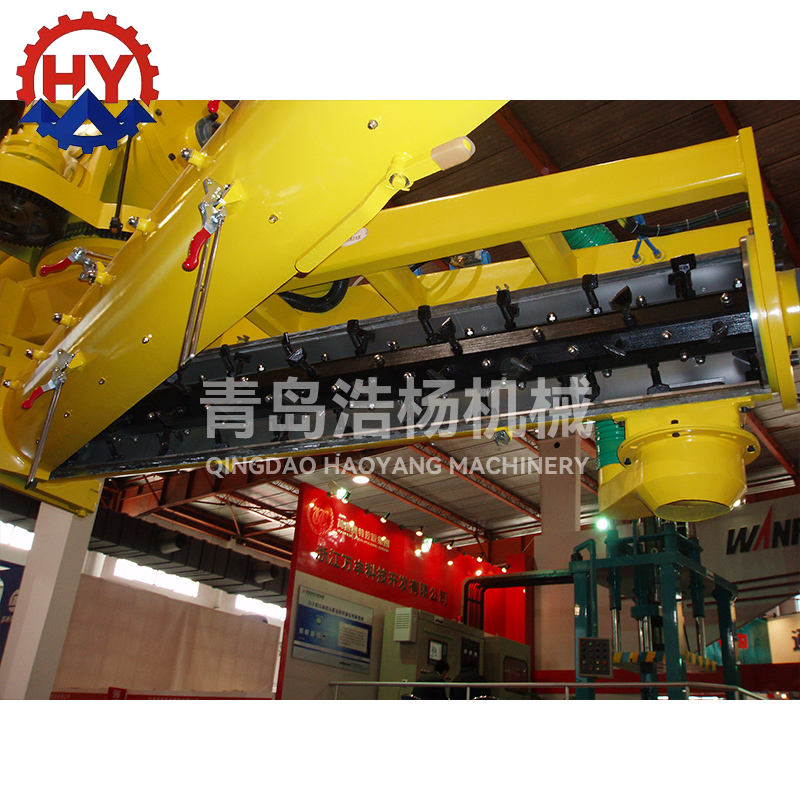

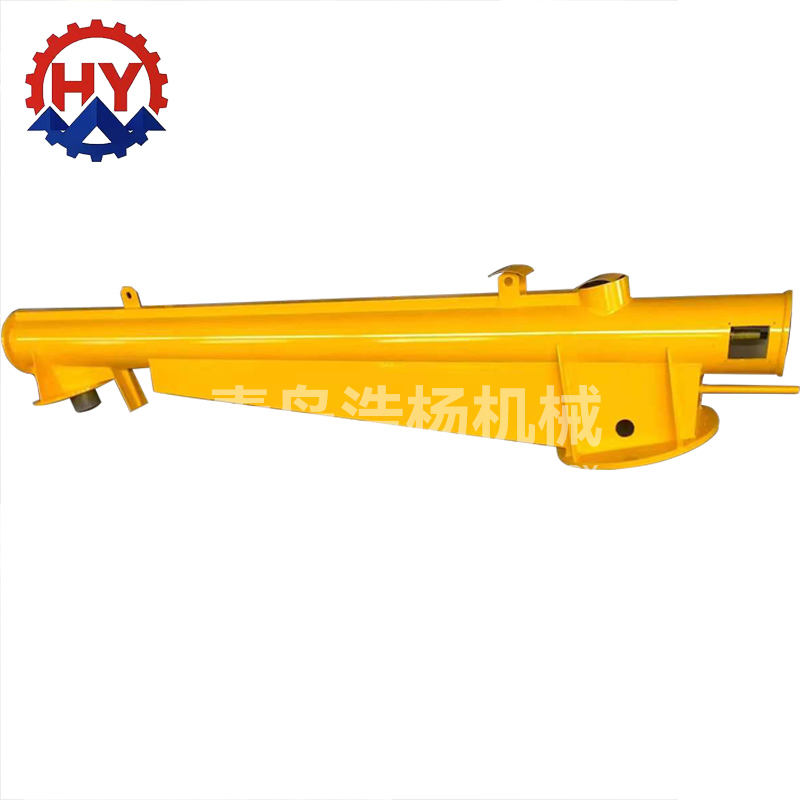

Sand mixing mechanism: The sand mixing mechanism is connected to the base by a rotary support, and the motor drives the mixing cage shaft to rotate through an elastic coupling. The sand that enters quantitatively from the sand inlet is transported forward through the non filtering plate, and the curing agent is added to the proximal control valve in front of the head end cylinder.
The small blades are quickly stirred and pre mixed, and resin is added to the proximal control valve at the back to enter the sand mixing section. The small blades of the sand mixing section are adjustable, which can adjust the gap between the blades and themixing cage wall to compensate for the increased gap caused by wear. The blades can also be adjusted at different angles to the axis to change the direction and speed of sand movement, thereby enhancing the interpenetration ability between sand particles and achieving a more ideal sand mixing effect.

Our service:

1.Machine guarantee one year except damage by human wrong operation caused.

2.Provide installation drawings, pit

design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing

lists...

3.We can go to your factory to guiding installation and train your stuff.
