Doble Wheel Sand Loosening Machine Metal Casting Machinery Broken Sand Processing Crusher Loosening and Crushing Machine

Doble Wheel Sand Loosening Machine Metal Casting Machinery Broken Sand Processing Crusher Loosening and Crushing Machine

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

It is mainly used for conveying new sand, used sand, molding sand, coke, limestone and other materials in foundry workshop, it can also be used in building materials, chemical industry, grain processing and other industries to transport non-corrosive low-temperature blocks, granular bulk materials, compact structure, easy installation and maintenance Strong ability to adjust deviation, when the belt conveyor inclination is greater than 10 ° should be set up backstop.

Professional industrial transport aircraft

00:08

01:00

Technical Parameter

item	value
voltage	380v 60hz, 220V 50HZ
power(w)	7.5KW
machine type	continuous casting machine
warranty	1 Year
weight (kg)	800
place of origin	China
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Bearing, Gearbox, Gear
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
dimension(lwh)	12008001100
key selling points	Easy to Operate, Competitive Price, Long Service Life, Low Noise Level, Low Maintenance Cost, Flexible Manufacturing, High Safety Level

Detail technical data,pls confirm with supplier.

This machine is suitable for loosening various mixed molding sand and core sand, ensuring uniform molding and good flowability ofthe molding sand and core sand. It can improve the compactness and breathability of the mold to meet the needs of high-efficiency and high-quality molding. It is also suitable for crushing old sand clumps that have been cleaned after high-pressure molding, in order to improve the screening and reuse rate of old sand.

Product Application

The driven group of loose grinding wheels then loosens the thrown sand ball again at a speed 15% higher than the power group of loose grinding wheels.

After the loose sand passes through, it is thrown out along the tangential direction by the driven group of loose grinding wheels.

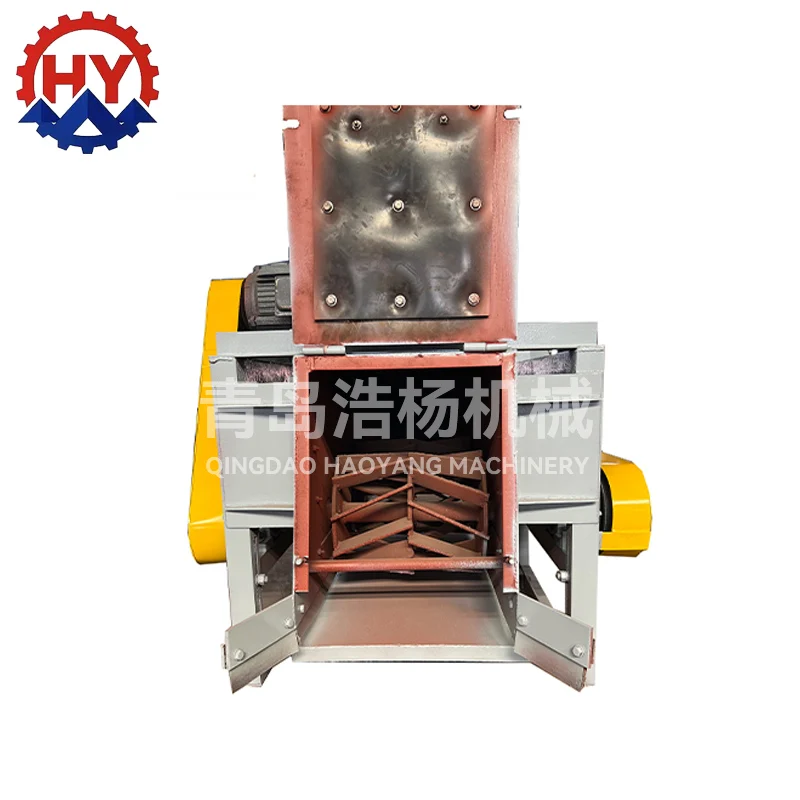

The structure of this machine is simple, reliable to use, and easy to maintain. It mainly consists of several parts such as the shell, transmission device, sand loosening machine, suspension chain, spring support plate, etc. When repairing and disassembling
this machine, open the side cover and loosen the bearing seat screws to remove the loose grinding wheel from the side for welding repair, without the need for lifting equipment or major disassembly.

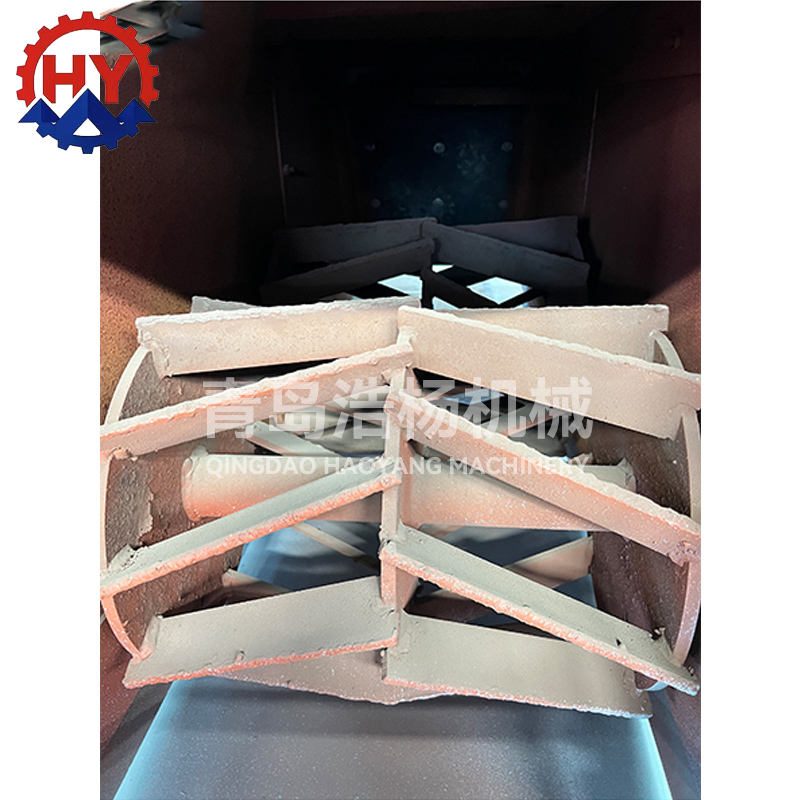

The function of the herringbone arrangement of blade teeth is to drive the ejected sand to the middle part of the conveyor, in
order to prevent sand from sticking to the two side walls.

The herringbone blade tooth surface is welded with carbide hard alloy, greatly extending its service life; The elastic support
plate can prevent the loose grinding wheel from flying iron blocks in and scratching the tape;

Two loose grinding wheels rotate at high speed in the same direction but at different speeds. The blade teeth of the first group (power group) of loose grinding wheels break the sand ball and throw it along the tangential direction to the second group (driven group) of loose grinding wheels.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

The advantages of the conveying type vibrating shakeout machine

The plow type unloader with unloading positions includes double-sided unloading, left side unloading, and right side unloading. According to the driving mode, this series of unloaders has three types: manual, pneumatic, and electric. Both pneumatic and electric can achieve semi-automatic control of unloading.

Workshop

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!
