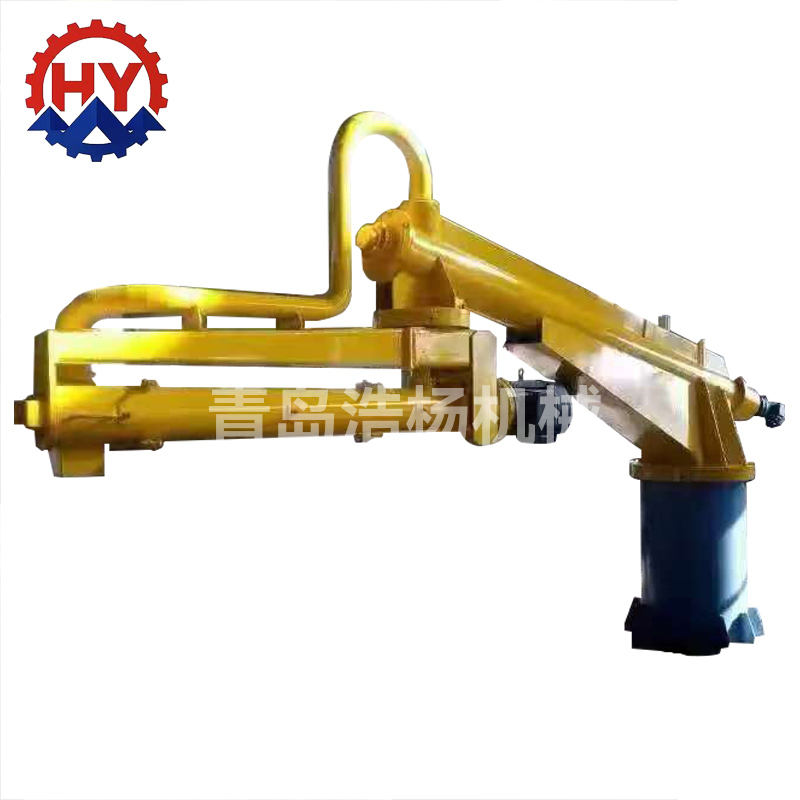

Double-Arm Fixed Resin Sand Furan Resin Sand Mixer Metal Casting Machinery Resin Sand Mixing Casting Chemical Machine

Double-Arm Fixed Resin Sand Furan Resin Sand Mixer Metal Casting Machinery Resin Sand Mixing Casting Chemical Machine

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

It is widely used in the mixing of self hardening sand for large cast iron, cast steel and other castings. The machine is a movableadjustable elevating sand mixer, which is easy to operate and has fullfunctions . It can be adjusted and selected according to diferentcharacteristics of resin sand technology. The machine is mainly composed of sand mixer,traveling mechanism, sand hopper, electriccontrolsystem,air control system, dust removal system, etc.

Professional resin sand processing equipment

00:08

01:00

Technical Parameter

item	value
weight (kg)	7000
warranty	1 years
place of origin	China
brand name	HaoYang
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
turning radius(mm)	5500/5500/5500/5500/5500/7000
Model	S2810/S2815/S2820/S2825/S2830/S2840
height of sand outlet (mm)	1200-2200/1100-3000/700-2400
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

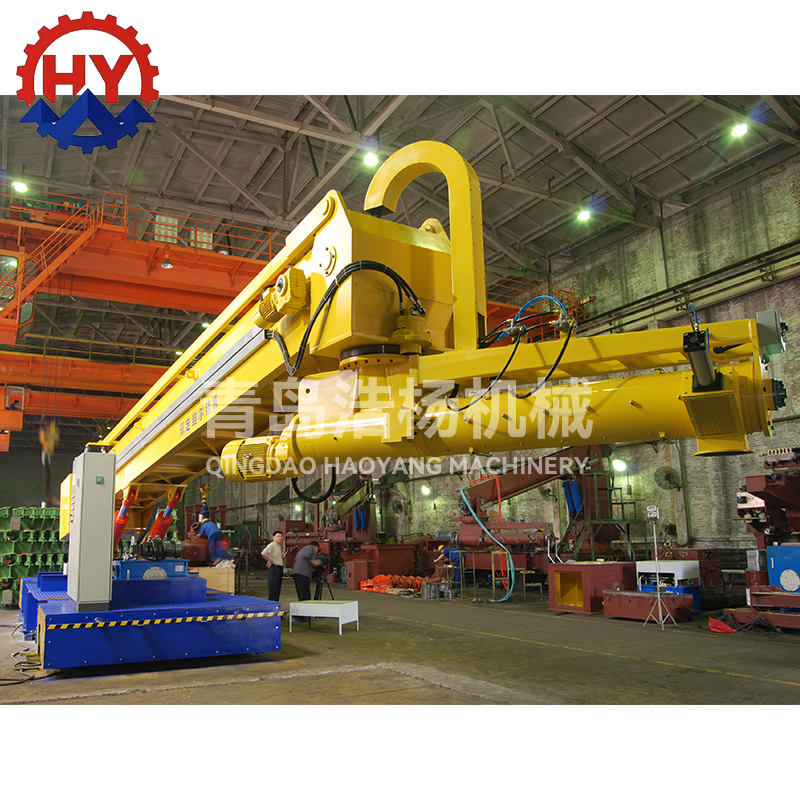

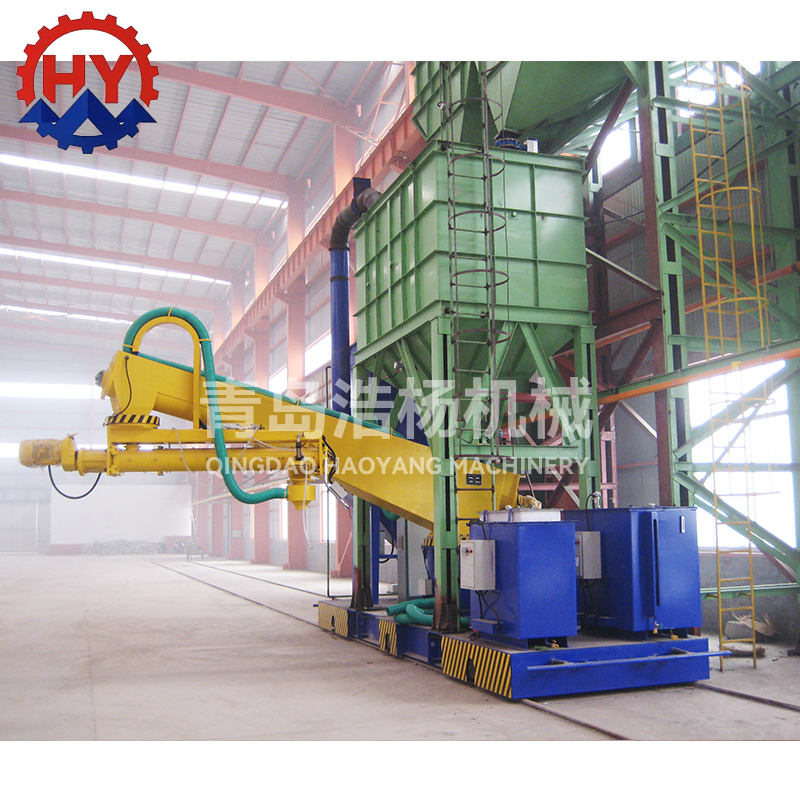

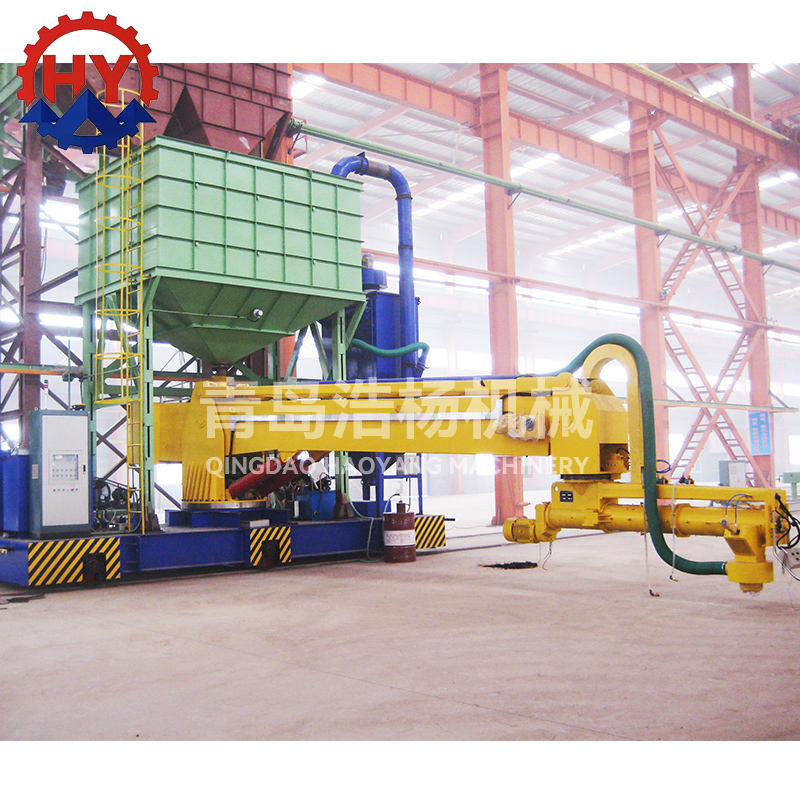

The machine is mainly composed of sand mixer,traveling mechanism, sand hopper, electriccontrolsystem,air control system, dust removal system, etc

Product Application

It is widely used in the mixing of self hardening sand for large cast ron, cast steel and other castings. The machine is a movableadjustable elevating sand mixer, which is easy to operate and has fullfunctions .

It can be adjusted and selected according to diferentcharacteristics of resin sand technology.

Product Features

The large arm of the sand mixer adopts the motorized rotation mode, and the small arm is automatic/ manual. A variety of liquid material adding functions are preset to meet the needs of different proportions ofsurface sand, back sand,new sana and recycled sand.

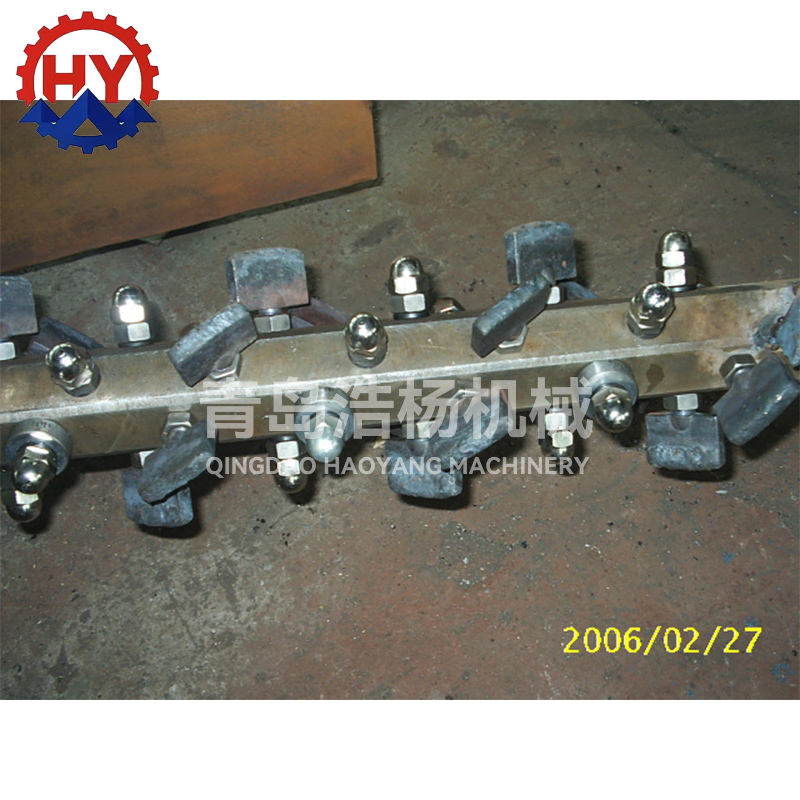

lt adopts split type sand mixing tank with stainless steelinner lining for easy cleaning and maintenance;sand mixing blade is inlaid withhard alloy cutter head for long service life.

The machine head is equipped with head and tail sand control device and odor and dust removal device.

Hydraulic or electric push rod is used for lifting,and the lifting range can be set according to the user's requirements.

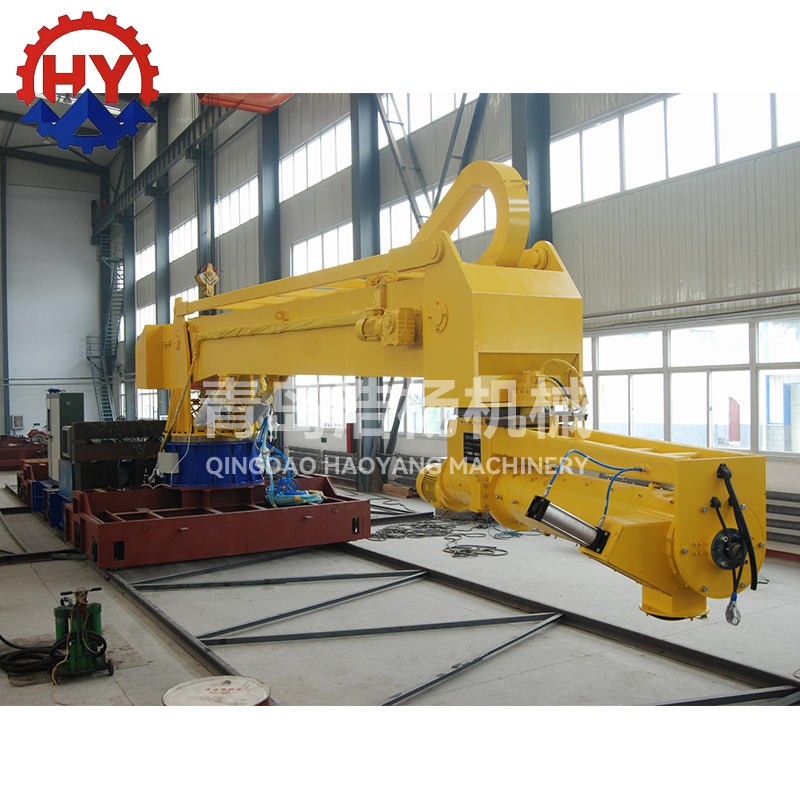

The upper four-bar linkage is adopted to ensure that the boom lifting is always in the horizontal position,and the structure is compactand beautiful The start and stop of the mobile car are controlled by frequency conversion, which can realize fast and slow action; the safety systemis equipped with balance weight, track cleaning and audible and visual alarm devices.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Advantages of medium-speed mixer

Sand abrasion groove plate and the blade have less abrasion and the engine temperature is lower and mixing sand is uniform, when sand is being mixed.

Workshop

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!

Company Profile

Packing & Delivery

FAQ

1. What is the delivery time?

20-40 working day, based on factory’s production order conditions.

2. How to installation shot blasting machine?

We supply overseas service, engineer can go to your place guide installation and debugging.

3. What size machine suit for us?

We design machine following your request, usually based on your workpiece size, weight and efficiency.

4. How to control the quality of shot blasting machine?

One year warranty,and 10 teams QC to check every part from drawing to machine finished.

5. How it control for whole work?

PLC control, setup safety interlock device between system

◆The large arm of the sand mixer adopts the motorized rotation mode, and the small arm is automatic/ manual ◆A variety of liquid material adding functions are preset to meet the needs of different proportions ofsurface sand, back sand,new sana and recycled sand. ◆lt adopts split type sand mixing tank with stainless steelinner lining for easy cleaning and maintenance;sand mixing blade is inlaid withhard alloy cutter head for long service life. ◆The machine head is equipped with head and tail sand control device and odor and dust removal device.0 Hydraulic or electric push rod is used for lifting,and the lifting range can be set according to the user's requirements.O The upper four-bar linkage is adopted to ensure that the boom lifting is always in the horizontal position,and the structure is compactand beautiful. ◆The start and stop of the mobile car are controlled by frequency conversion, which can realize fast and slow action; the safety systemis equipped with balance weight, track cleaning and audible and visual alarm devices.

Our service:

1.Machine guarantee one year except damage by human wrong operation caused.

2.Provide installation drawings, pit

design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing

lists...

3.We can go to your factory to guiding installation and train your stuff.
