You are here: Home » Products » Clay Sand Treatment Equipment » Belt Conveyor Belt Machine Mini Belt Conveyor Other Machine Tools Accessories

Belt Conveyor Belt Machine Mini Belt Conveyor Other Machine Tools Accessories

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

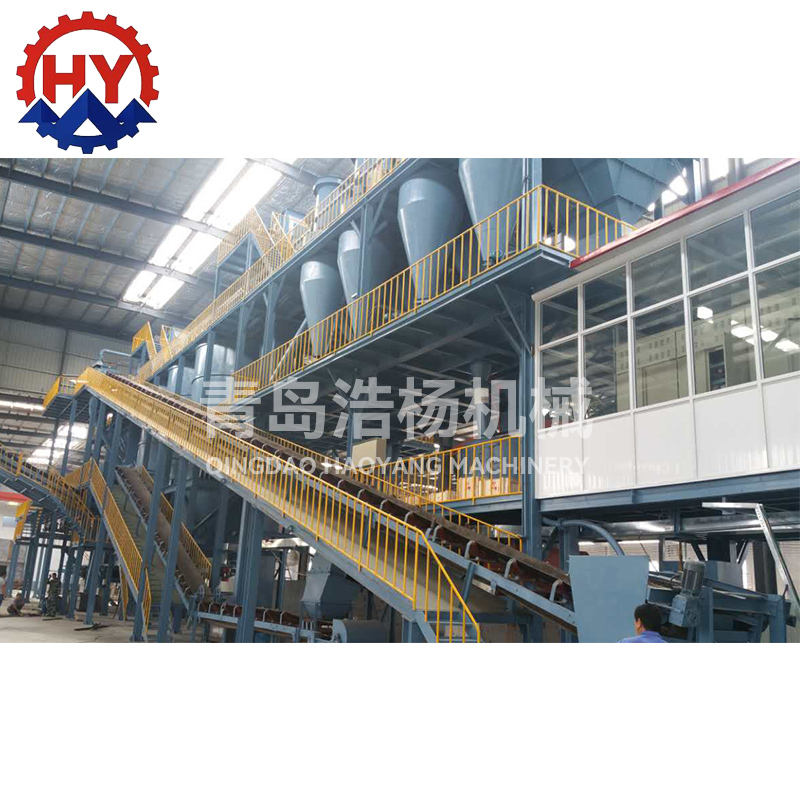

It is mainly used for conveying new sand, used sand, molding sand, coke, limestone and other materials in foundry workshop, it can also be used in building materials, chemical industry, grain processing and other industries to transport non-corrosive low-temperature blocks, granular bulk materials, compact structure, easy installation and maintenance Strong ability to adjust deviation, when the belt conveyor inclination is greater than 10 ° should be set up backstop.

Professional industrial transport aircraft

00:07

01:00

Technical Parameter

item	value
Transportation capacity(m³/h）	35~85/60~140/95~220/140~290/200~350
Bandwidth（mm）	500/650/800/1000/1200
warranty	1 years
place of origin	China
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal / Coil
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

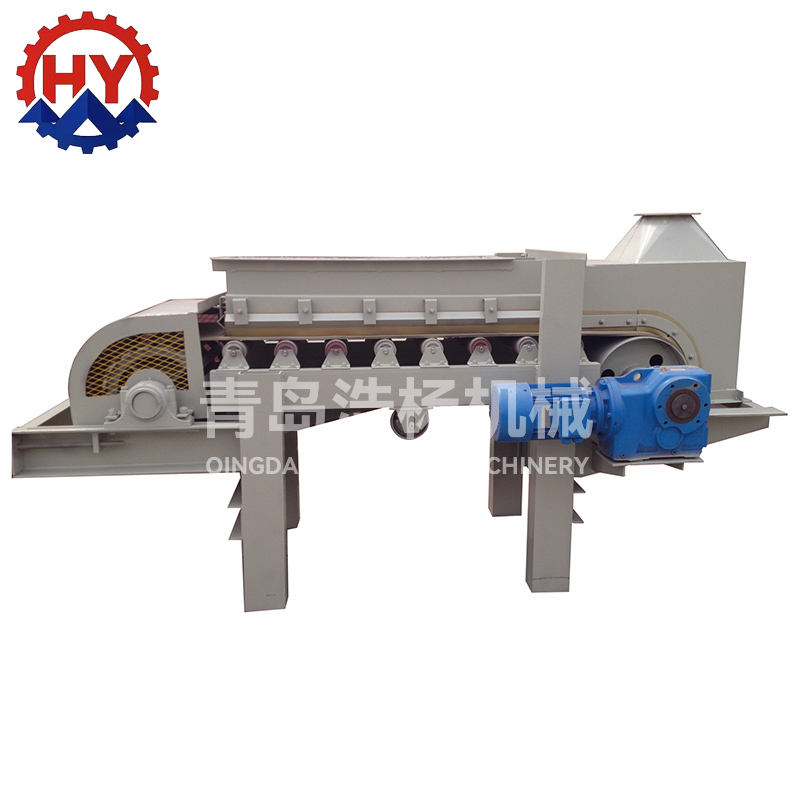

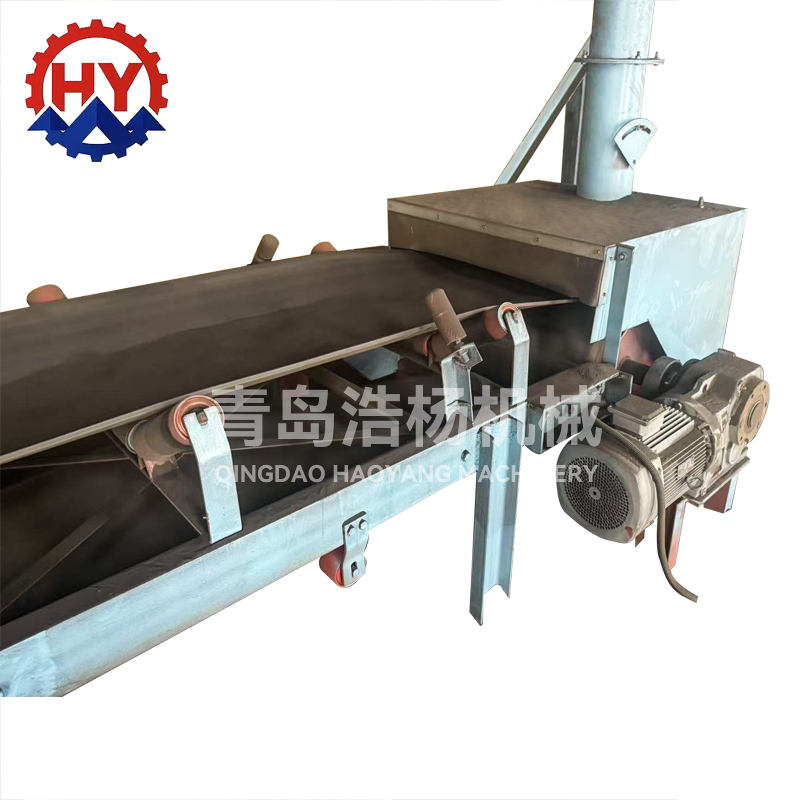

Drive part: the use of shaft-mounted reducer to drive the drum. Roller: sub-drive Roller (including S97 series permanent magnetic pulley) , redirection roller and surface roller. Supporting Roller: levelling supporting roller, groove supporting roller and anti-deviation roller. Unloader: divided into two sides, left or right side unloading; pneumatic, electric and manual three types of drive. Sweeper: the head sweeper is installed under the drive drum, and the empty section sweeper is installed near the rear redirection drum. Dust cover, receiving trough, rack, etc.

Product Application

The casting workshop generally uses lightweight .

There are two types of rollers: steel plate smooth roller and rubber coated roller.

Product Features

If transporting hot new sand with high temperature or hot old sand after falling, heat-resistant rubber belts can be used. The joint of rubber tape can be made by vulcanization or cold bonding method. The cold bonding method has a simple process and low cost, and its joint strength is also higher than that of vulcanization method.

The low-speed shaft of the shaft mounted reducer is a shaft sleeve structure, which is directly fitted onto the shaft head of the drum without the need for a coupling. It has a small axial size, is easy to assemble and disassemble, and does not require a drive bracket. The driving device of the belt conveyor can be installed as left or right transmission according to the layout requirements.

There are two types of rollers: steel plate smooth roller and rubber coated roller. Under general usage conditions, smooth surface rollers are preferred. When the transmission torque is large and friction needs to be increased, rubber surface rollers can be used. When materials require magnetic separation, permanent magnet pulleys can be used as the drive drum for belt conveyors.

The face increasing and tail changing drum adopts a spindle type steel plate drum, which is compact in structure and easy to ensure installation accuracy. The surface roller is installed on the left and right wheel frames, without the need for a separate bracket, and the surface angle can be easily adjusted. The end of the tail turning drum can be equipped with magnetic components for automatic control of safe operation of the belt conveyor.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

The advantages of the conveying type vibrating shakeout machine

The plow type unloader with unloading positions includes double-sided unloading, left side unloading, and right side unloading. According to the driving mode, this series of unloaders has three types: manual, pneumatic, and electric. Both pneumatic and electric can achieve semi-automatic control of unloading.

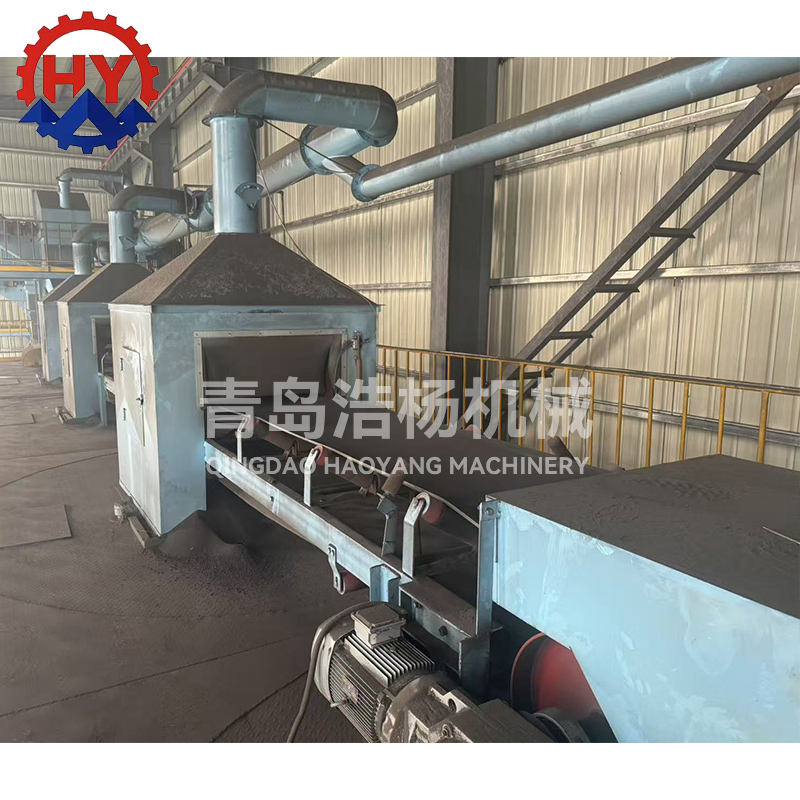

Workshop

Company Profile

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing, installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons

Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to become a manufacturer of high-quality casting machinery and smelting equipment!

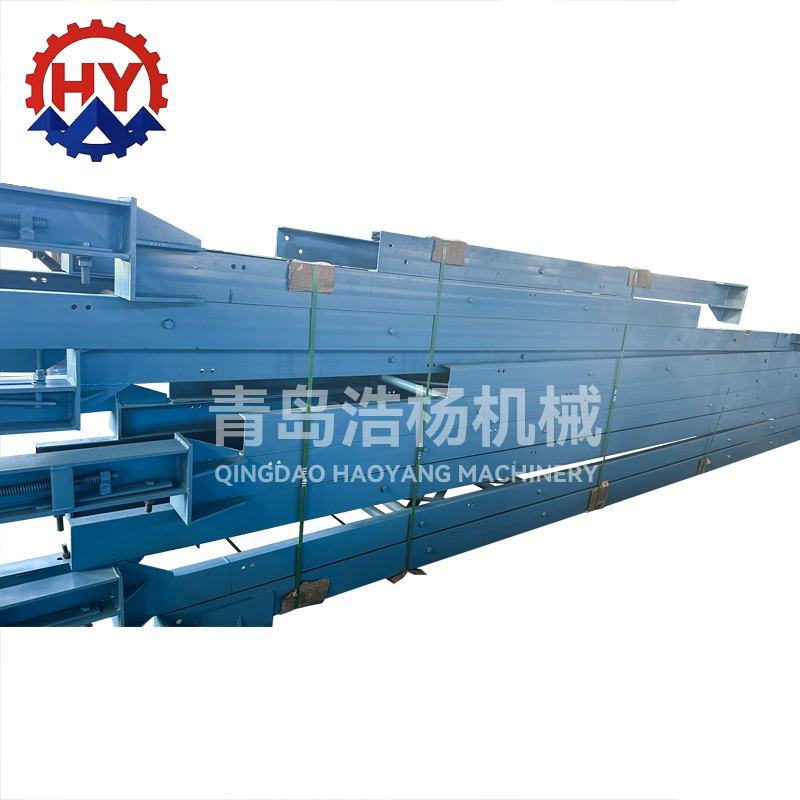

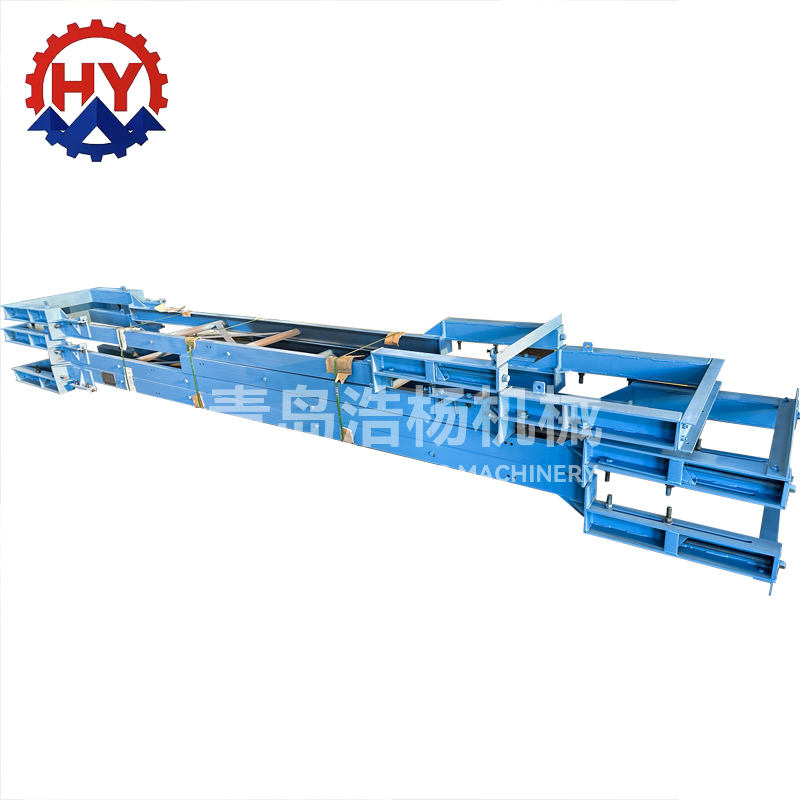

Packing & Delivery
