S56 Series Metal Casting Machinery Boiling Cooling Bed

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

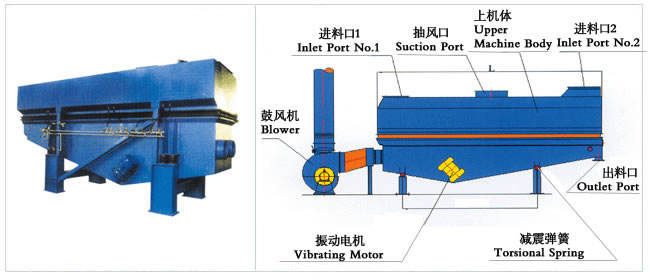

How it works.

The working principle of the device is as follows: the fan sends air to the pressure stabilizing box through the butterfly valve,and diverts the air into the pre-fluidized screen through the ball valve, and many nozzles are evenly arranged on the nozzle plate and the pre-fluidized screen, the air flowing through the jet produces the suspension force to the sand, the sand is in the shape of boiling, because the outlet side is connected with the dust catcher, and at the same time absorbs the dust particles with less than 200 mesh. The working capacity of the boiling cooling bed is determined by the difference of the height of the opening and the size of the regulating air volume. The loose sand entering the pre-fluidized bed is in a boiling shape and enters the fluidized bed through the Sand Inlet. The foreign matter with large specific gravity such as iron grains sinks to the lower part of the pre-fluidized screen, and the slag discharge gate can be opened regularly to discharge the slag, the high and low baffles are staggered in the window, and the uniform distribution of serpentine cooling water pipe groups among the baffles, ensure adequate dust removal and cooling. Loose material in all boiling, fluidization, cooling process are in the rubbing film.
Boiling cooling bed is a new product which is optimized on the basis of digestion and absorption according to the advantages of similar equipment in China. The device is a continuous cooler, which is characterized by loose old sand, which is boiling in the fluidized bed, curving around the serpentine pipe from the Sand Inlet to the sand outlet, and fully cooling the loose old sand in the fluidized bed, at the same time, the dust in the boiling process is dedusted in a large scale, thus completing the reuse of the old sand.
Boiling cooling bed is a special equipment for cooling and regeneration of resin sand. It has many functions, such as removing metal particles, removing membrane, removing micro-powder film chips, cooling and so on. The boiling cooling bed is usually used in conjunction with the pressure feeding device of the vibration regenerator to form a regeneration system, which is usually not used alone, so it is not equipped with a separate electronic control system, but is included in the electrical control cabinet of the regeneration system,

Specification
item
value
voltage
380v 60hz, 220V 50HZ, 220v 60hz, 380v 50hz, 440v 50hz, 440v 60hz, 110v 60hz
power(w)
Determine based on the equipment
machine type
Great elevation
warranty
1 Year
weight (kg)
9000
place of origin
China
Shandong
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
brand name
Haoyang
key selling points
Easy to Operate, Famous brand PLC, Remote Control, Accurate temperature control
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

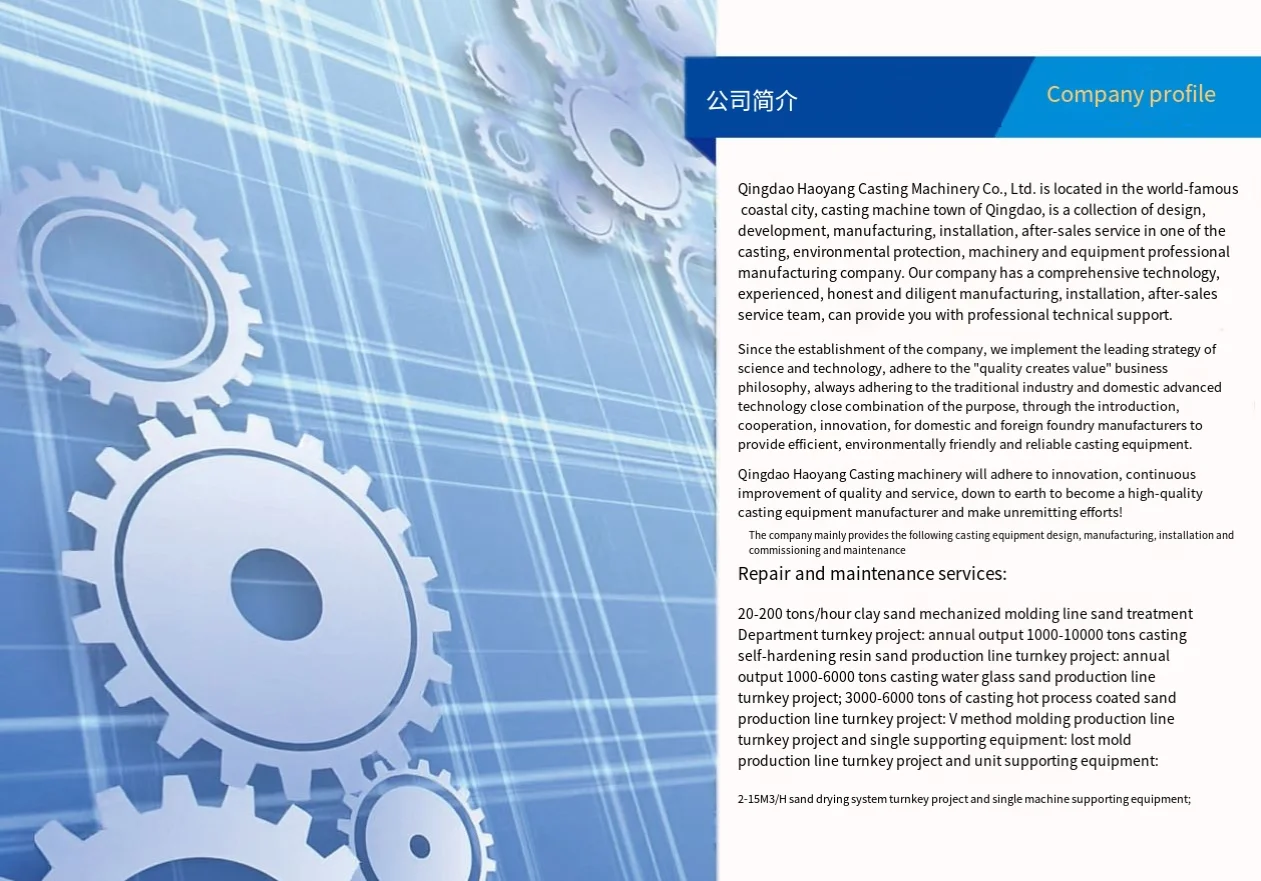

Company Profile
00:07
01:00
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to Eastern Asia(50.00%),Africa(30.00%),Mid East(20.00%). There are total
about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
foundry machinery,Clay sand equipment,Resin sand equipment,Coating sand equipment,Old sand recycling equipment

4. why should you buy from us not from other suppliers?
The company has a long history and strong service and operational capabilities, as well as customization capabilities

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,German
