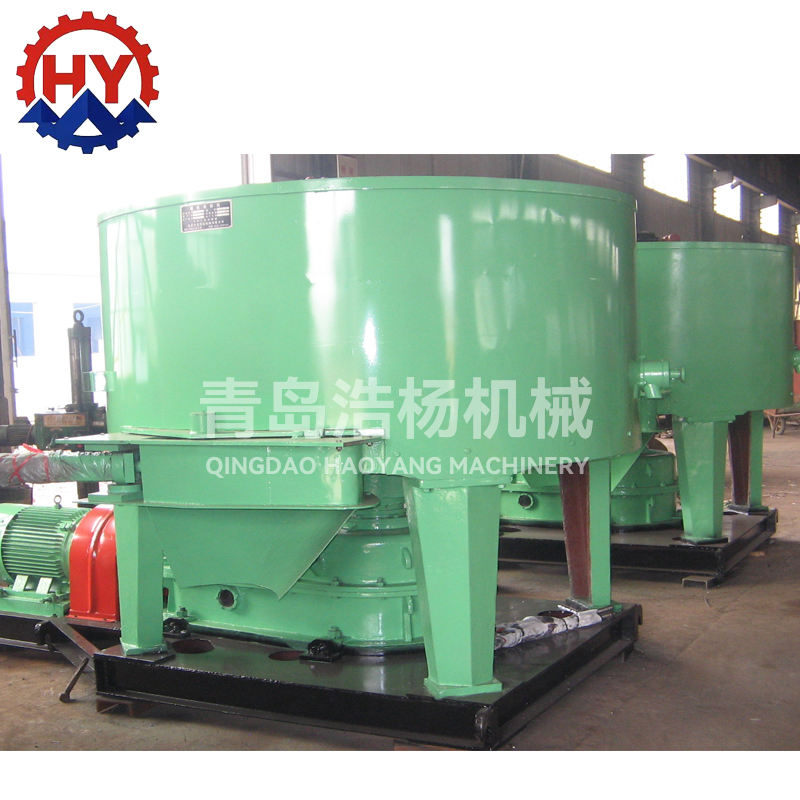

S11 Series Double Wheel Rolling Type Clay Sand Processing Machine Metal Casting Machinery for Sand Mixer

S11 Series Double Wheel Rolling Type Clay Sand Processing Machine Metal Casting Machinery for Sand Mixer

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Characteristics and Applications

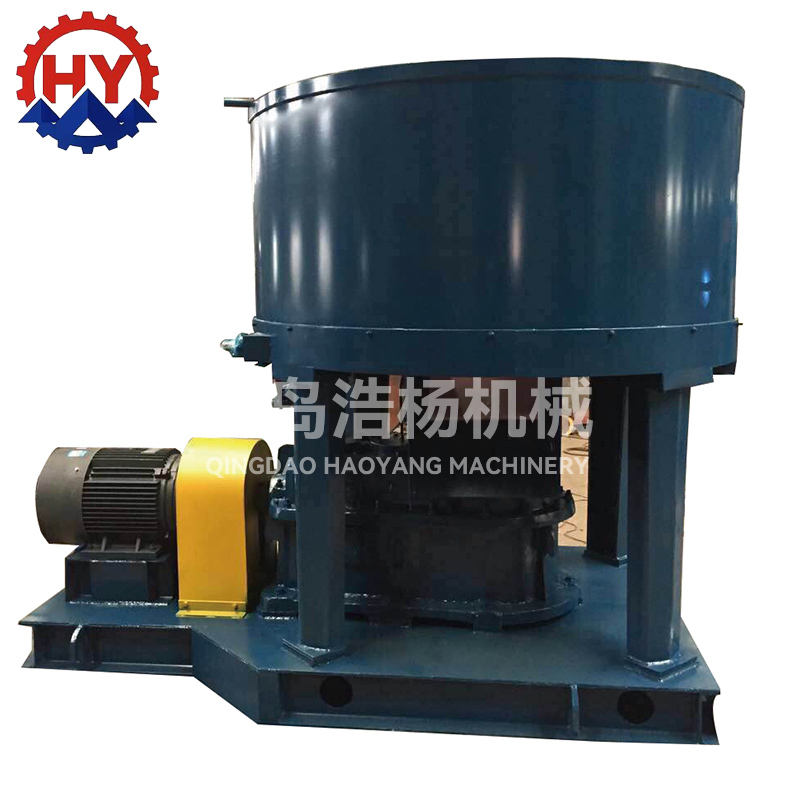

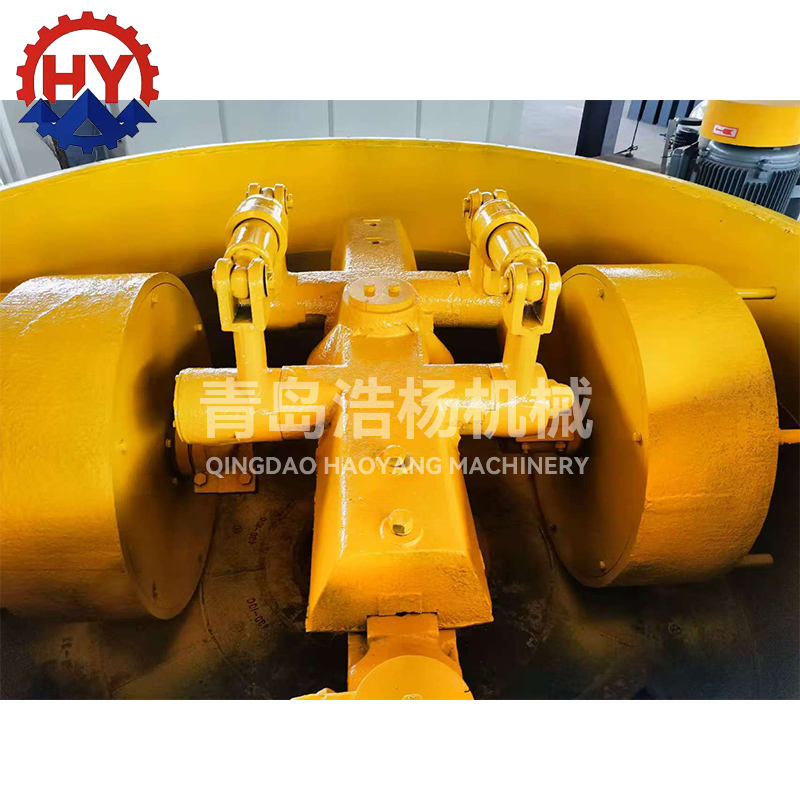

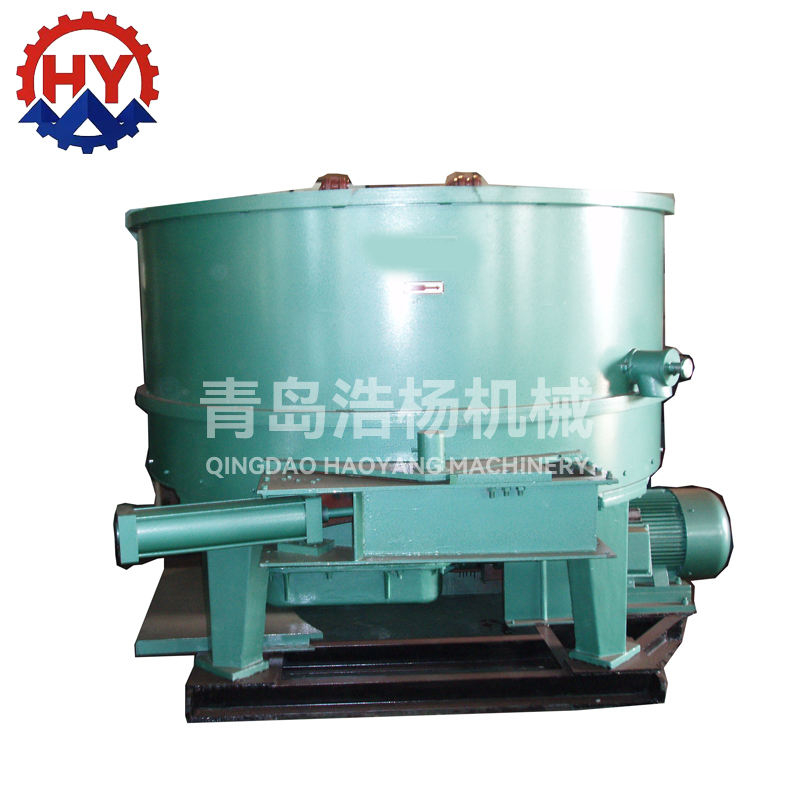

The roller sand mixer is an efficient, low consumption, and novel structure sand mixer, as shown in Figure 1. The sand mixer adopts new structures and materials such as spring pressure device, centralized lubrication, diabase cast stone protective plate, tungsten carbide alloy overlay scraper, etc. It has played an important role in ensuring the quality of molding sand, improving productivity, and increasing service life. This sand mixer has strong adaptability and wide applications. Mainly used for mixing clay type sand in casting workshops. It can mix single sand for machine molding, as well as dry sand, self hardening sand, surface sand, and core sand; It is also suitable for mixing various powder and granular materials in industries such as glass, ceramics, and refractory materials.

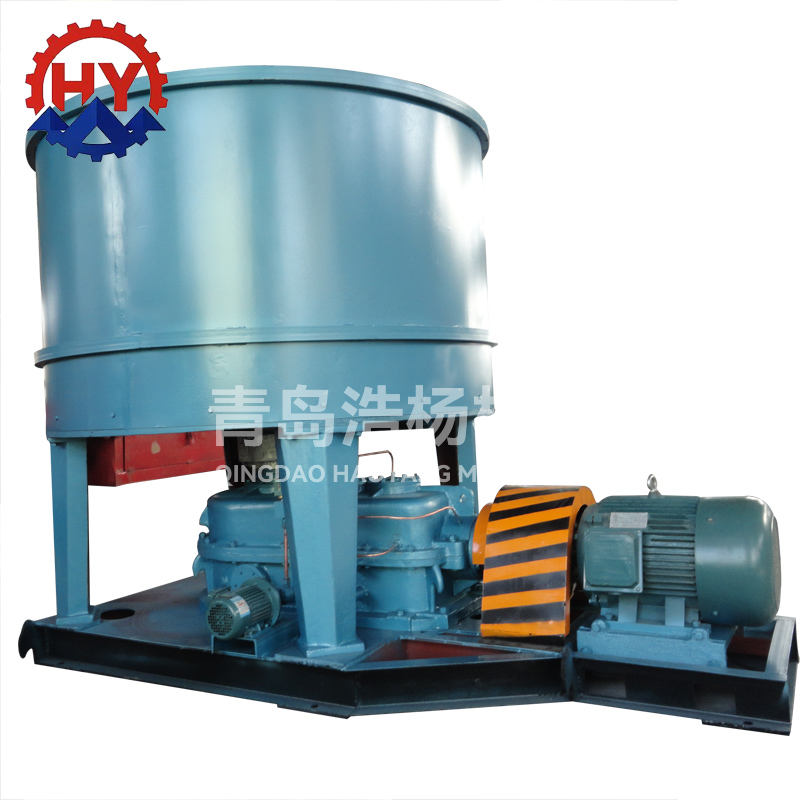

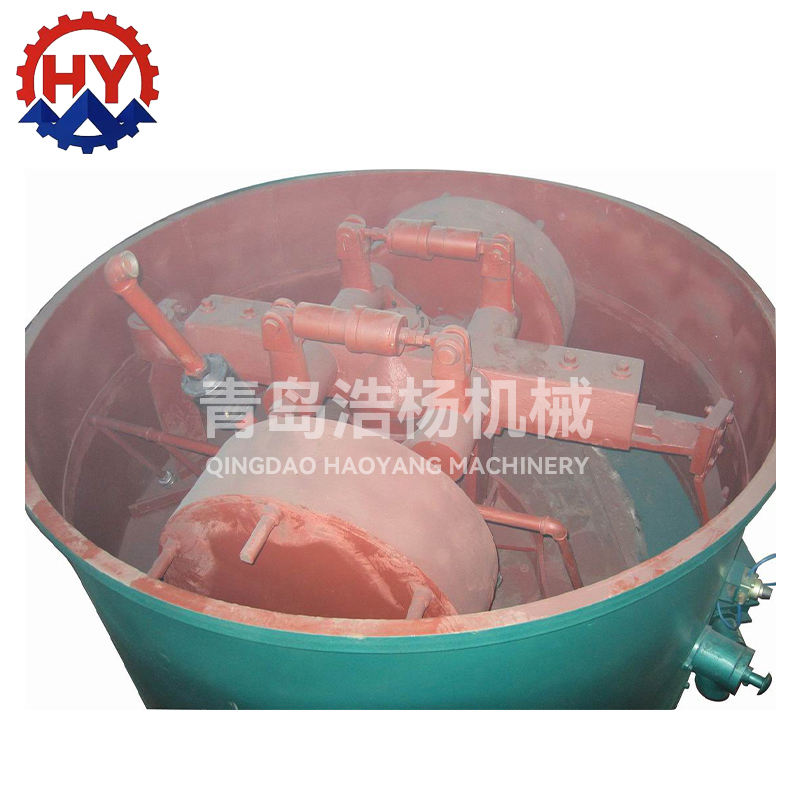

The whole machine is composed of transmission device, working mechanism, body and auxiliary devices.

1. Transmission device

The transmission device consists of an electric motor, a hydraulic coupling, a reducer, and a column.

a、 retarder.

The reducer adopts a three-stage gear transmission, with the first stage being a spiral bevel gear transmission, and the second and third stages being cylindrical gear transmission. The upper box is equipped with a ventilation hood for balancing the air inside and outside the box. Each part where the gears mesh is equipped with an observation window, which facilitates the observation of the meshing and lubrication of the gears. The bottom of the reducer is equipped with a magnetic oil plug to capture iron filings in the lubricating oil, reduce wear on gears and bearings, and improve their service life. The gears and bearings at the bottom of the reducer are immersed in oil for oil bath lubrication, while the remaining gears and bearings are lubricated by the lubrication system.

b、 Hydraulic coupling

The hydraulic coupler is used to connect the motor shaft and the high-speed shaft of the reducer, It is mainly composed of pump impeller and blades. The cavity between the pump impeller and the impeller is filled with working oil. During operation, the electric motor drives the pump wheel through the hub, which provides kinetic energy to the working oil. This kinetic energy acts on the impeller, causing it to rotate and drive the high-speed shaft of the reducer. The use of hydraulic couplings has the following advantages:

1) The starting current is small, and when the motor starts, the energy given to the working oil by the pump impeller gradually increases, so the speed of the impeller also gradually increases.

2) Has overload protection capability. If for some reason the load of the sand mixing mechanism increases significantly in a short period of time, there will be a speed difference between the impeller and the pump impeller, and the speed of the sand mixing mechanism will decrease. After the excessive load disappears, the sand mixing mechanism returns to normal working speed. Once there is a long-term overload, the speed difference between the impeller and pump impeller also increases, and the temperature of the working oil rises due to friction. When the temperature reaches the allowable value, the melting alloy in the protective plug melts, and the oil flows out from the hole of the protective plug. The sand mixing mechanism stops working (at this time, the motor is idling), which can prevent the motor from burning out or the machine from being damaged. The hydraulic coupling selected for this machine is YOX380 type, with an oil injection volume of 7.2-7.5 liters. When working, the prescribed amount of working oil should be injected, and hydraulic oil, turbine oil, and motor oil can be selected as working oil. When installing the hydraulic coupling, the coaxiality error between the motor and the reducer should be less than 0.3mm. After the installation of the machine in the user's factory, the motor must be readjusted before commissioning. The smaller the coaxiality error, the better to ensure the normal operation of the machine.

c、 Column

The column, also a part of the transmission system, is directly fixed on the chassis, and the large gear at the lower
end meshes with the last gear in the reducer, forming the third stage transmission of the reduction system. The spindle drives and supports all the working mechanisms of the sand mixer, and is one of the key components. The bearing at the upper end of the spindle is lubricated with thin oil by the oil pump. During operation, the sealing cover rotates together with the crosshead. To prevent dust from entering the interior of the column sleeve, a labyrinth cover and two felt oil seals are added between the column sleeve and the cover, and butter is injected as packing at the labyrinth.

Product features:

1. The wheel mill is widely used in many industries such as refractory materials, ceramics, and building materials. In the
refractory industry, it can grind and mix raw materials such as refractory clay, improve the uniformity and activity of raw
materials, and lay the foundation for the production of high-quality refractory products. In the ceramic industry, it can fully mix and refine ceramic raw materials such as clay and quartz, making the finished ceramic body denser and improving the quality and performance of ceramic products. In the building materials industry, the wheel mill can also play an excellent role in the mixing of materials such as concrete, mortar, and grouting, meeting the strict requirements of construction projects for material
mixing.

3. The wheel mill is efficient in both grinding and mixing. During the grinding process, the high-speed rotation and strong pressure of the grinding roller can quickly break the material particles and improve the fineness of the material. Compared with traditional grinding equipment, the wheel mill can achieve the required material particle size requirements in a shorter time, improving production efficiency. In terms of mixing, the forward mixing method combined with the special structural design inside
the equipment enables the materials to be evenly mixed in a short time. By accurately controlling parameters such as mixing time and rotation speed, it can ensure that various material components are evenly distributed, meeting the strict requirements of different production processes for mixing effects.

5. The wheel grinder has the characteristics of energy saving and pollution-free. In terms of energy saving, the equipment adopts efficient motors and advanced transmission systems to optimize the power transmission process and reduce energy loss. By rationally designing the grinding and mixing workflow, excessive processing and energy waste are avoided, so that the equipment
can reduce energy consumption while ensuring efficient operation, saving production costs for the enterprise. In terms of environmental protection, the equipment has good sealing and can effectively prevent the leakage of material dust. This not only reduces the pollution to the air quality of the production workshop, protects the health of the operators, but also avoids the waste of materials, which is in line with the concept of green production and sustainable development of modern industry.

2. The equipment is suitable for various dry and wet materials and jelly-like mixtures, such as refractory clay, clay, fly ash, slag, tailings, etc. Whether it is a viscous material with a high water content or a dry powdery material, the wheel mill can effectively process it through its unique grinding and mixing functions. For some special mixtures, such as materials with different particle sizes and different physical properties, the wheel mill can also achieve uniform mixing and particle size control of materials with its efficient working principle, fully demonstrating its strong material adaptability.

4. During operation, the wheel mill has the significant advantage of low noise. The noise control problem is fully considered during the design and manufacturing process of the equipment. By optimizing the mechanical structure, reducing friction and collision between components; adopting advanced shock absorption technology to reduce the vibration generated during the operation of the equipment, and reducing the noise level of key components such as motors, the noise level of the equipment during operation is effectively reduced.

6. The wheel grinder is easy to operate, and the control system design of the equipment is concise and clear. The operator can master the basic operations such as starting, stopping, and parameter setting of the equipment after simple training. The equipment runs smoothly, and the solid structural design and high-quality parts manufacturing ensure that the equipment will not have problems such as shaking and excessive vibration during long-term operation. Advanced sensors and monitoring systems can monitor the operating status of the equipment in real time, detect and warn potential faults in time, ensure the stable operation
of the equipment, reduce equipment downtime and maintenance time, and improve production efficiency.

7. The mixing effect of the wheeled grinder is excellent. Through the forward mixing method and the special internal mixing structure, the materials can be fully rolled and stirred in the equipment to achieve all-around and dead-angle mixing. Whether it is the mixing of large and small particles or the mixing of materials with different chemical compositions, a uniform and consistent effect can be achieved. This good mixing effect is crucial to ensure product quality.

Purpose

This series of equipment is mainly used for mixing surface sand and single sand in foundry, and also for mixing core sand and self hardening sand in large foundry.

Electric Control System

Model:Automatic or manual type

Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Specification

item	value
voltage	continuous casting machine
power(w)	continuous casting machine
machine type	continuous casting machine
warranty	2 years
weight (kg)	4500
place of origin	China
	Shandong
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Engine, Bearing, Gearbox
brand name	Haoyang
key selling points	Easy to Operate, Famous brand PLC, Remote Control

Technical Parameter

Grinding wheel sand mixer
Product model	S1110	S1112	S1116D	S1118	S1120C/D	S1120E	S1122E	S1125
Disk meridian(mm)	Φ1000	Φ1200	Φ1600	Φ1800	Φ2000	Φ2000	Φ2240	Φ2500
Productivity(t/h)	2.5	5	12	15	20	22	30	45
Main motor power(kw）	4	7.5	18.5	22	30	37	55	75
Once feeling capacity (kg)	110	200	500	650	800	900	1350	1500

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of casting, a world-famous coastal city. Covering an area of about 16,000m2, it is a professional equipment manufacturing company integrating design, development, manufacturing,installation and after-sales service. 20-200 tons/h clay sand mechanized molding line sand treatment equipment

Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment

Annual output of 1000-6,000 tons Casting water glass sand production line equipment

Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment

V-style modeling production line equipment and stand-alone supporting equipment

Disappearing mold production line engineering and stand-alone supporting equipment

Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust collector and other casting machinery and smelting equipment

Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to become a manufacturer of high-quality casting machinery and smelting equipment!

FAQ

1. who are we?
We are based in Shandong, China, start from 2020,sell to Eastern Asia(50.00%),Africa(30.00%),Mid East(20.00%). There are total
about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
foundry machinery,Clay sand equipment,Resin sand equipment,Coating sand equipment,Old sand recycling equipment

4. why should you buy from us not from other suppliers?
The company has a long history and strong service and operational capabilities, as well as customization capabilities

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,German
