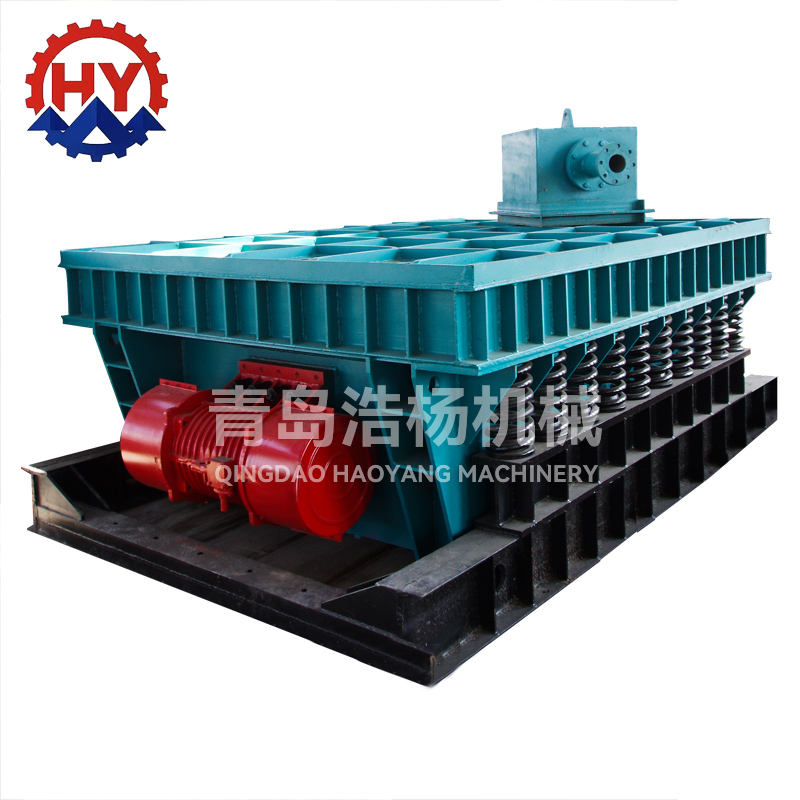

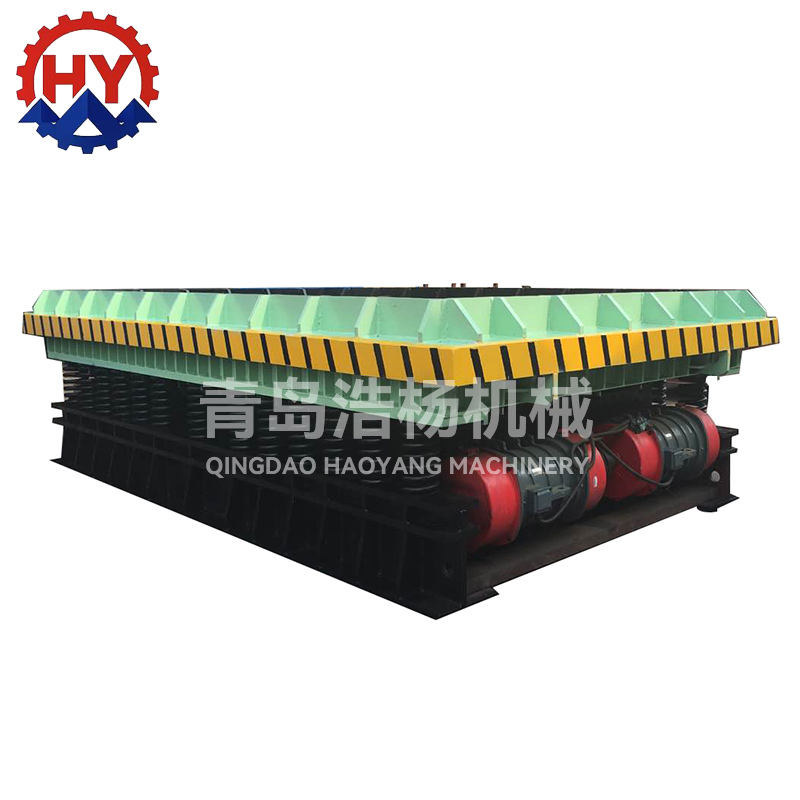

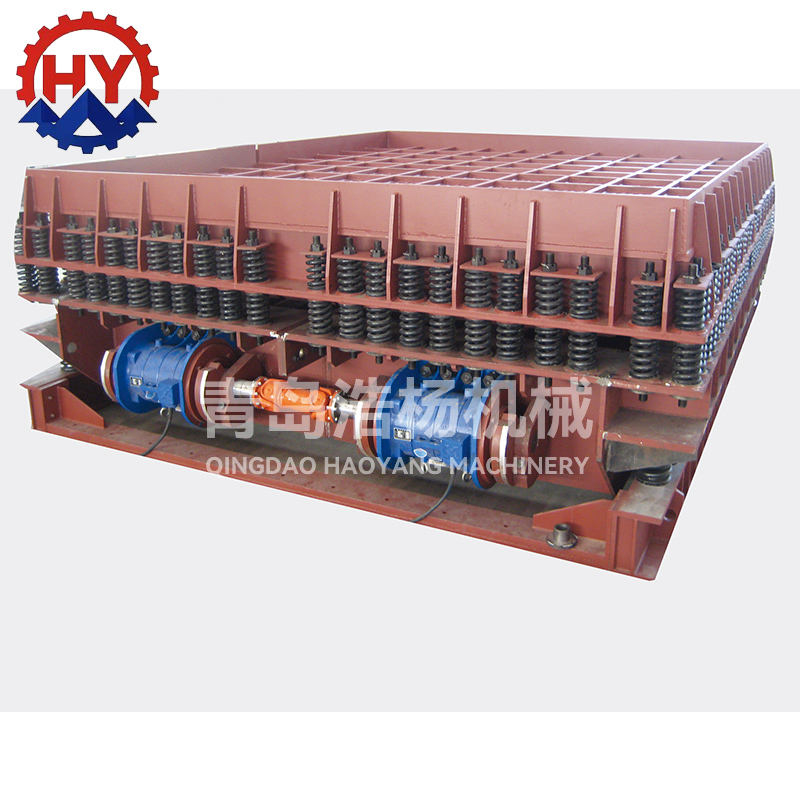

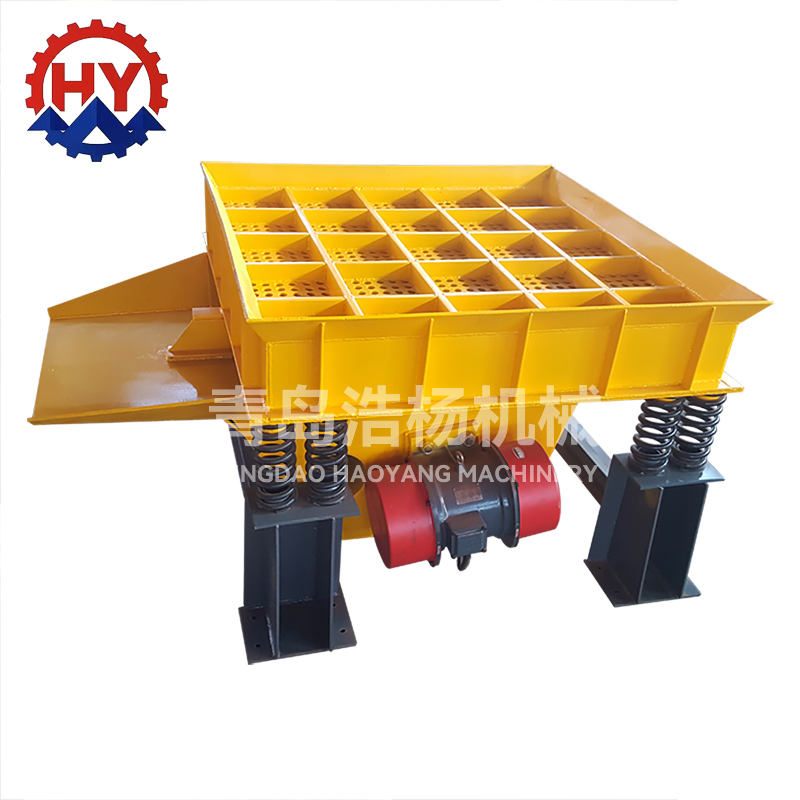

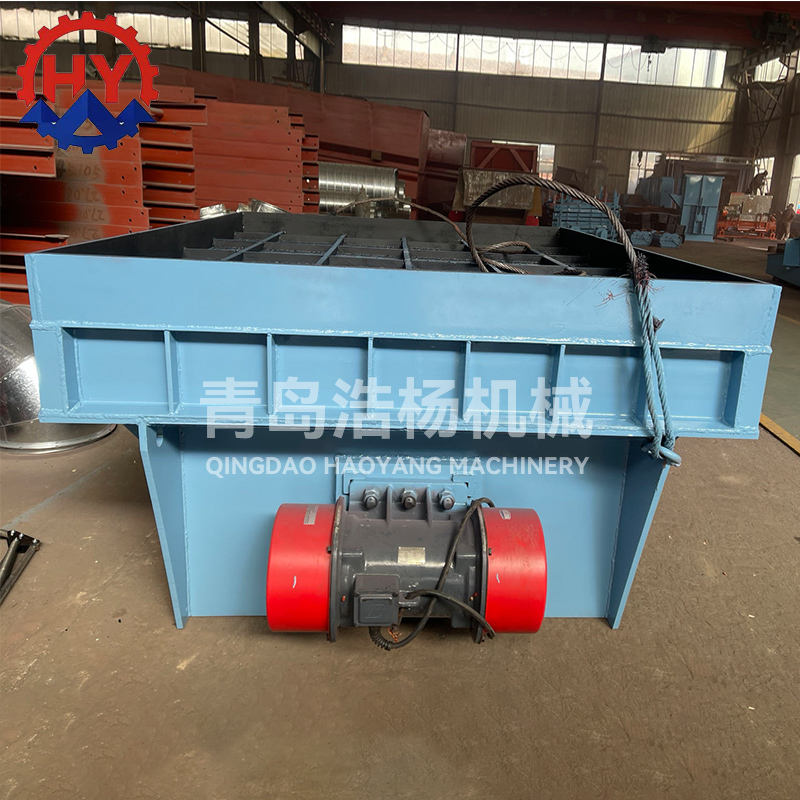

Fixed Vibrating Sand Remover Metal Casting Machinery Resin Sand Foundry Machinery with Engine Core Components

Fixed Vibrating Sand Remover Metal Casting Machinery Resin Sand Foundry Machinery with Engine Core Components

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

It is widely used in the mixing of self hardening sand for large cast iron, cast steel and other castings. The machine is a
movableadjustable elevating sand mixer, which is easy to operate and has fullfunctions . It can be adjusted and selected according to diferentcharacteristics of resin sand technology. The machine is mainly composed of sand mixer,traveling mechanism, sand hopper, electriccontrolsystem,air control system, dust removal system, etc.

Professional resin sand processing equipment

00:08

01:00

Technical Parameter

item	value
warranty	1year
place of origin	China
brand name	HaoYang
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal / Coil
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

This product is mainly suitable for small and medium-sized sand removal on semi-automatic molding lines and mechanized molding lines in casting workshops.

Product Application

It plays a role in sand removal and separation of molding sand and castings, and is more suitable for use in combination with bucket box machines or other machinery that prevents the sand box from jumping on the sand removal machine grid bed.

This not only reduces noise, but also reduces the wear of high-precision sand boxes on molding lines. This product is suitable for casting sand on various types of cast iron parts and is a widely used universal product.

Product Features

1. The material of the vibrating sand dropping machine is low-alloy steel. Use T507 low hydrogen welding rod (ship specific). The tensile strength of the weld seam is ≥ 50kg/mm. 2. The weld seam has undergone non-destructive testing to ensure that there are no defects in the welding. The overall structure is sturdy, resistant to vibration and impact, and there are no welding cracks or loose frames after long-term use. The material of the countertop body is 16Mn alloy steel plate. disintegration over long-term use. The table surface is made of 16Mn alloy steel plate.

3. After welding the vibrating sand removal machine grid bed, the overall stress relief treatment is carried out at 600 ℃ for 6 hours, and the qualitative treatment is carried out at 150-200 ℃ for 48 hours. Process the joint surface of the vibration motor. 4. The vibration motor adopts products from Yangzhou Baofei Yousite, a Sino foreign joint venture. The vibration motor is arranged at both ends of the sand dropping machine grid bed, with one vibration motor installed at each end. The block size after sand falling should match the block size of the vibrating crusher.

5. The connection between the vibration motor and the grid bed adopts inclined iron clamping positioning, and the vibration motor is fastened with 12.9 grade high-strength bolts, double set anti retreat locking nuts, and anti rotation bolt seats. The above structure belongs to our company's proprietary technology for vibration machinery products and has been in use for more than ten years. Other casting machinery production plants do not have this structure. The worktable has good wear resistance and the surface plate holes are elliptical in shape.

6. The accuracy of the spring is level 2, and it has undergone shot peening strengthening treatment. The service life of the spring is ≥ 3 years. 7. The production and manufacturing of equipment comply with relevant national standards for machinery, electrical, safety, environmental protection, and JB1644 standards for casting machine products.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Advantages of medium-speed mixer

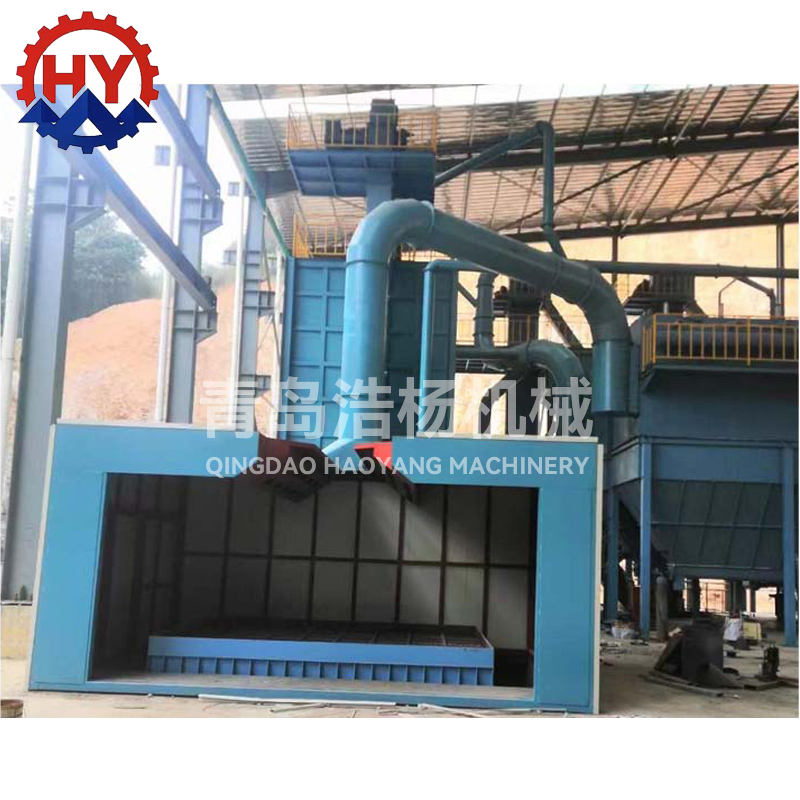

The product design, manufacturing, installation, construction, and quality inspection of the sand falling machine shall comply with standards such as "Technical Conditions for Sand Falling Machines" JB6575-1993 and "General Technical Conditions for Casting Machinery" JB/T1644-1991. For the high temperature and humidity in Chongqing area, a dedicated dust removal system is installed to achieve national standards for dust emissions.

Workshop

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!
