High Efficiency Cast Iron Foundry Mixer Automatic Rotor Sand Mixing Machine Easy to Operate Casting Machine

High Efficiency Cast Iron Foundry Mixer Automatic Rotor Sand Mixing Machine Easy to Operate Casting Machine

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

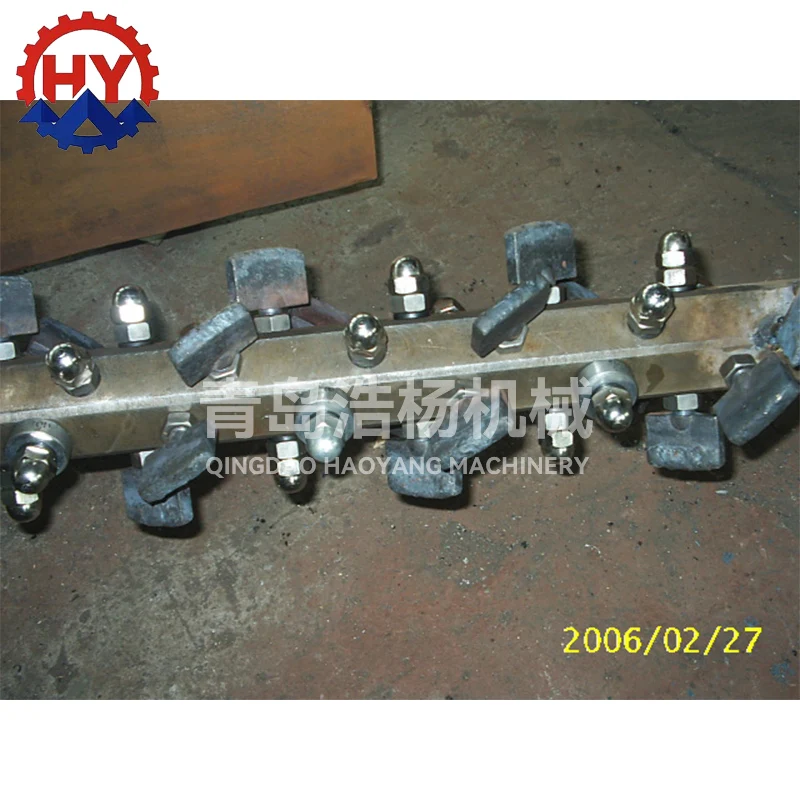

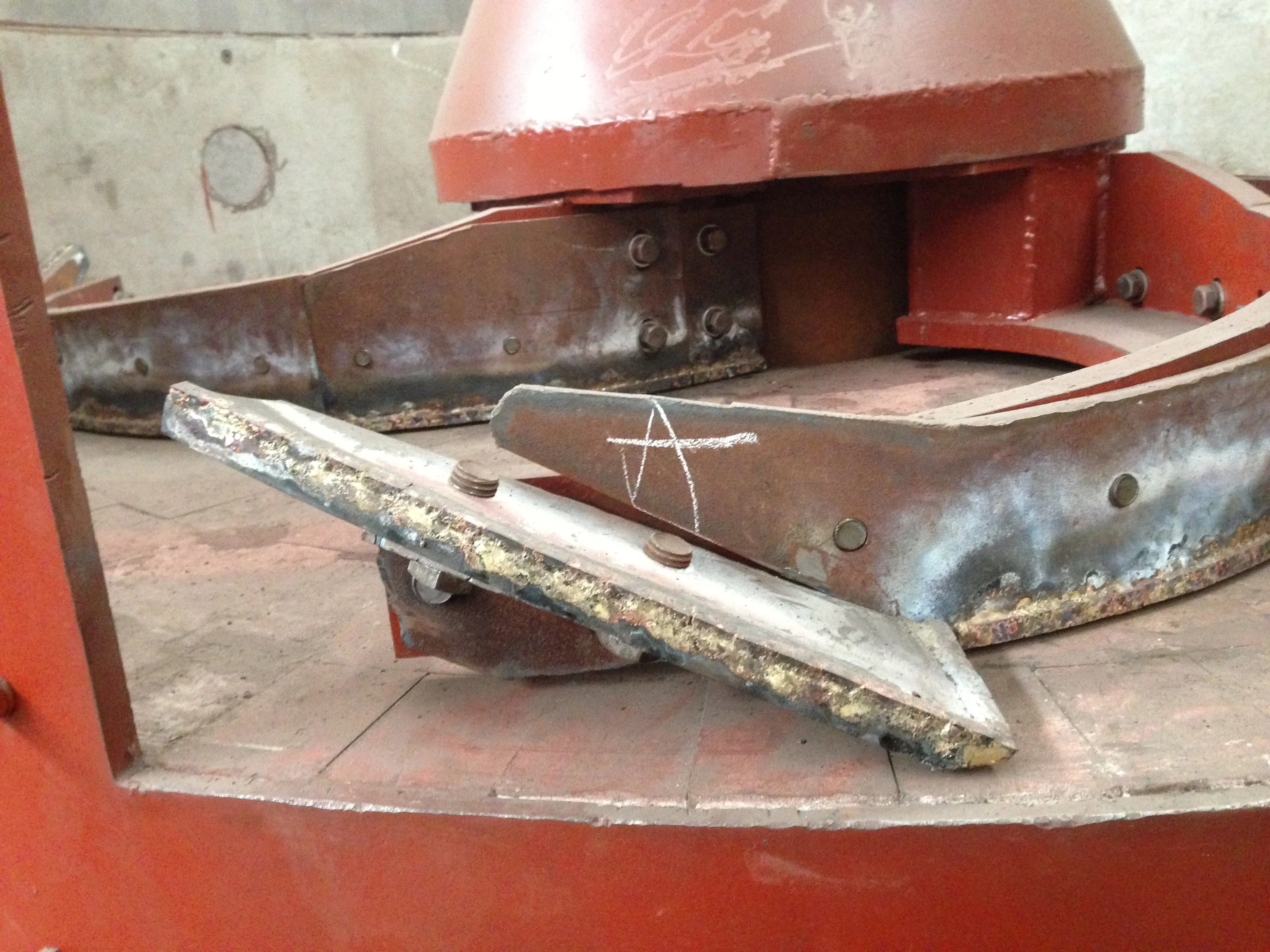

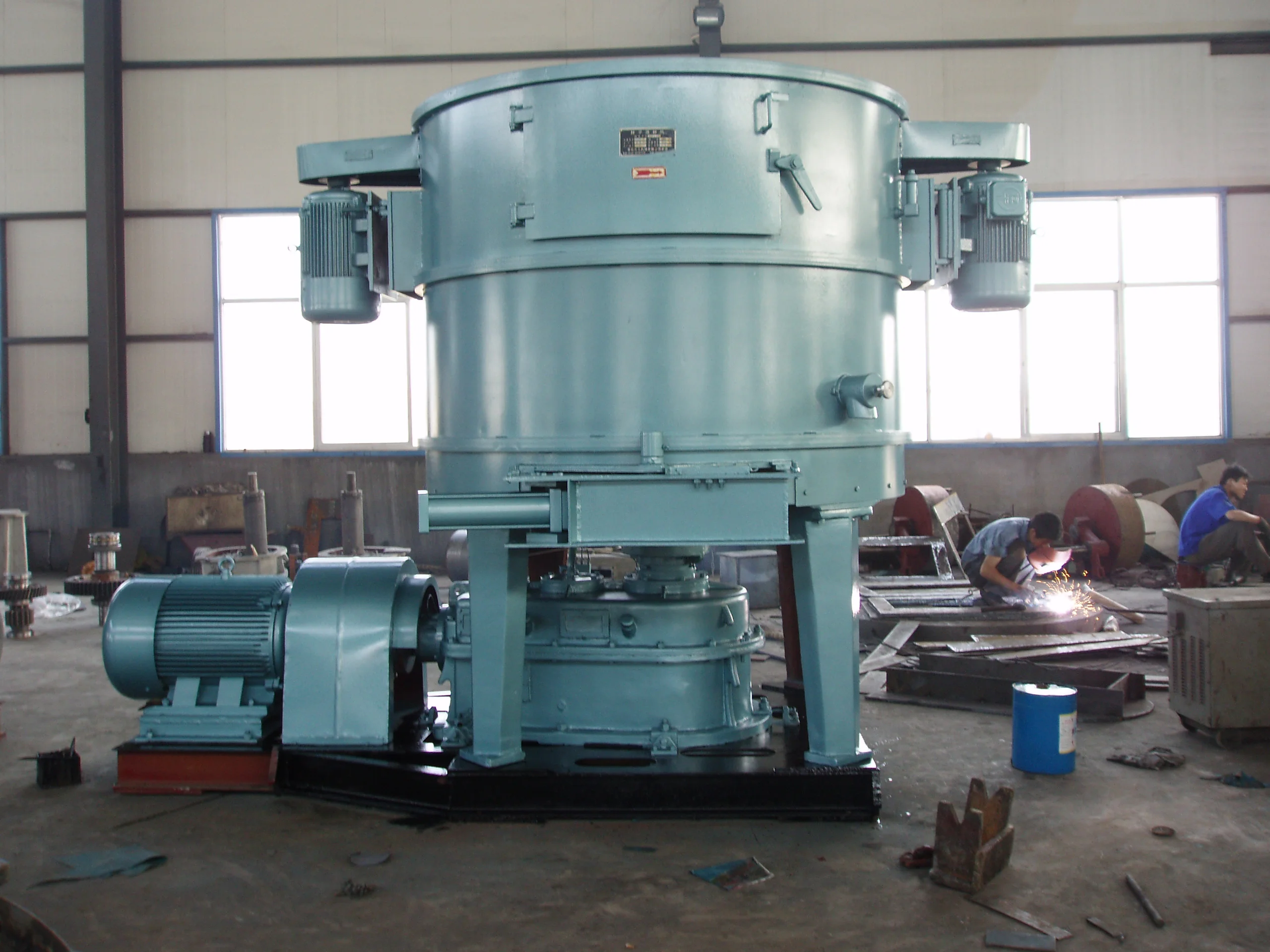

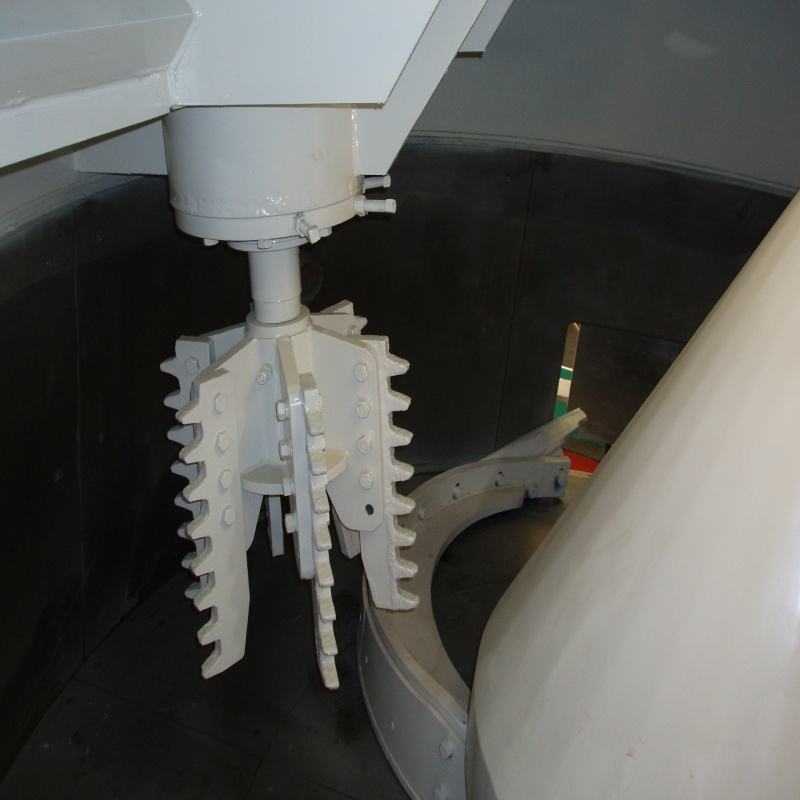

The powerful and efficient rotor sand mixer was designed by our company based on the drawings imported from abroad . This machine is mainly used for mixing various types and core sands in large and medium-sized casting workshops, and can also be used for mixing various powder and granular materials in industries such as glass, ceramics, and refractory materials. The working principle of this machine is that three sets of low-speed transmission large blade scrapers push the mixture to make radial and tangential movements in the machine bowl, so that the sand is mixed while advancing. The high-speed rotating rotor blades not only apply impact force to the sand but also cooperate with the scraper to apply shear force to the sand, causing rapid diffusion and strong friction between the sand materials, thus achieving high sand mixing efficiency and good quality. The machine has a simple structure, easy maintenance, high reliability of the transmission system and mixing mechanism, and is currently an ideal sand mixing equipment.

Professional clay sand processing equipment

00:08

00:26

Technical Parameter

item	value
weight (kg)	4500
warranty	2 years
place of origin	China
brand name	HaoYang
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal / Coil
productivity(t/h)	10/15/20/25/30/40/50/60/80
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Disk meridian(mm)	1600/2000/2000/2240/2500/2500/2850
Model	GS16-30/GS20-55/GS20-75/GS22-90/GS25-110/GS25-132/GS29-200
The rotor speed(r/min)	980/980/975/975/950/950/950
Application	Steel plate, beam, pipe, profile, channels etc
Spindle speed(r/min)	34/31.72/27.32/27.32/27.32/27.32/25.4
Frequency controller	Included

Detail technical data,pls confirm with supplier.

The machine is mainly composed of sand mixer,traveling mechanism, sand hopper, electriccontrolsystem,air control system, dust removal system, etc

Product Application

It is widely used in the mixing of self hardening sand for large cast ron, cast steel and other castings. The machine is a movableadjustable elevating sand mixer, which is easy to operate and has fullfunctions .

It can be adjusted and selected according to diferentcharacteristics of resin sand technology.

Product Features

• Double "s" scraper and high-speed rake rotor are the best

match, with large amount of sand mixing, strong mixing ability and good molding sand performance.

• New materials such as alumina wear-resistant ceramic backing plate, alloy knife block surfacing scraper etc. improve the service life of vulnerable parts.

• Soft start, alloy steel gear, lubrication controller, to ensure that the transmission system is stable and reliable, and can be started with load.

The upper four-bar linkage is adopted to ensure that the boom lifting is always in the horizontal position,and the structure is compactand beautiful The start and stop of the mobile car are controlled by frequency conversion, which can realize fast and slow
action; the safety systemis equipped with balance weight, track cleaning and audible and visual alarm devices.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

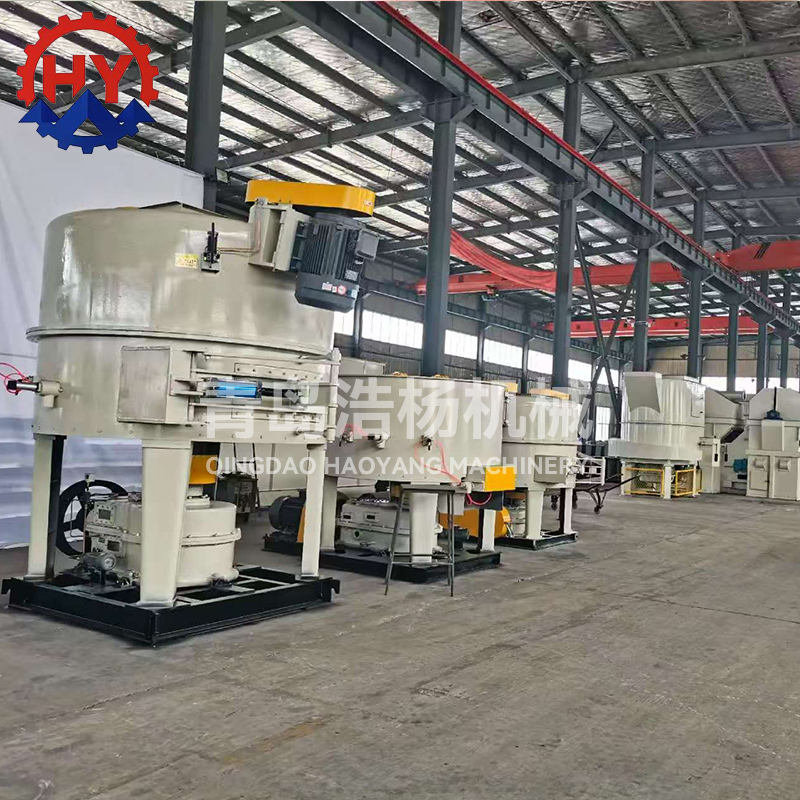

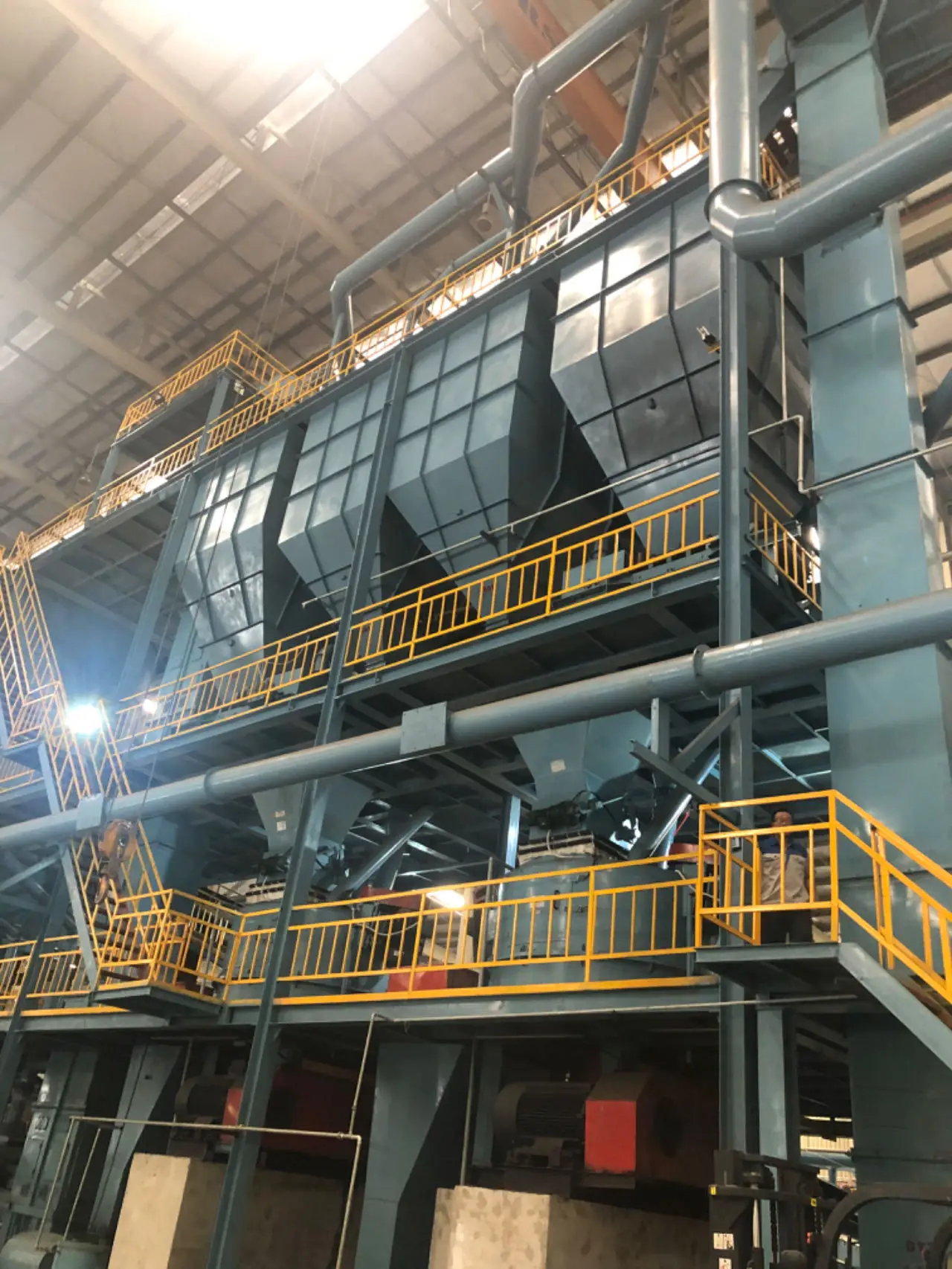

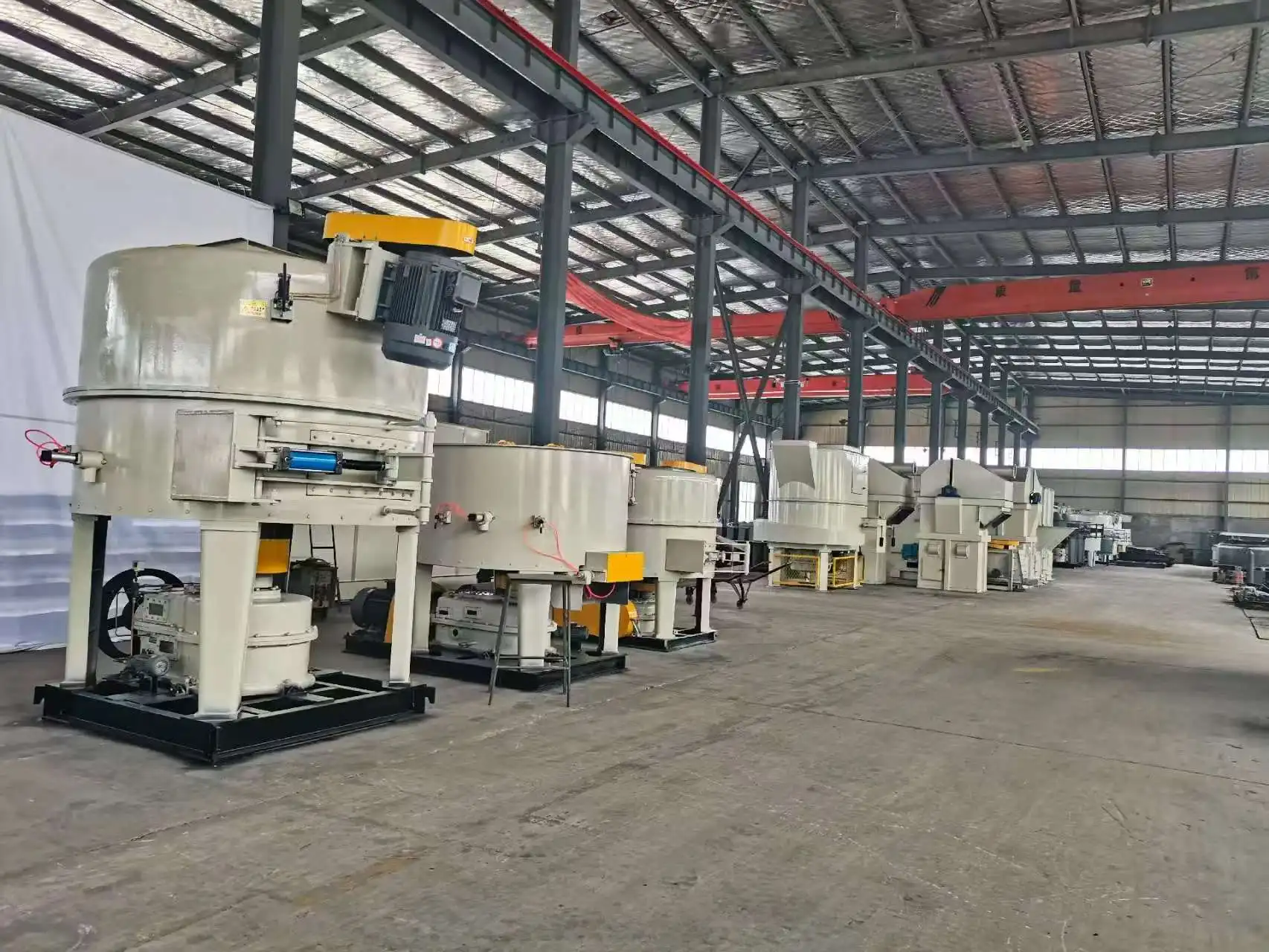

Workshop

Company Profile

Packing & Delivery

FAQ

1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. How it control for whole work?
PLC control, setup safety interlock device between system
◆The large arm of the sand mixer adopts the motorized rotation mode, and the small arm is automatic/ manual ◆A variety of liquid material adding functions are preset to meet the needs of different proportions ofsurface sand, back sand,new sana and recycled sand.

◆lt adopts split type sand mixing tank with stainless steelinner lining for easy cleaning and maintenance;sand mixing blade is inlaid withhard alloy cutter head for long service life.

◆The machine head is equipped with head and tail sand control device and odor and dust removal device.0 Hydraulic or electric push rod is used for lifting,and the lifting range can be set according to the user's requirements.O The upper four-bar linkage is adopted to ensure that the boom lifting is always in the horizontal position,and the structure is compactand beautiful.

◆The start and stop of the mobile car are controlled by frequency conversion, which can realize fast and slow action; the safety systemis equipped with balance weight, track cleaning and audible and visual alarm devices.

Our service:

1.Machine guarantee one year except damage by human wrong operation caused.

2.Provide installation drawings, pit

design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing

lists...

3.We can go to your factory to guiding installation and train your stuff.
