High Efficiency Automatic Rotor Sand Mixing Machine Easy to Operate Cast Iron Foundry Mixer Core Components Bearing Pump Motor

High Efficiency Automatic Rotor Sand Mixing Machine Easy to Operate Cast Iron Foundry Mixer Core Components Bearing Pump Motor

Quantity:
Availability:





Inquire Add to Basket

Product Description

Video Description

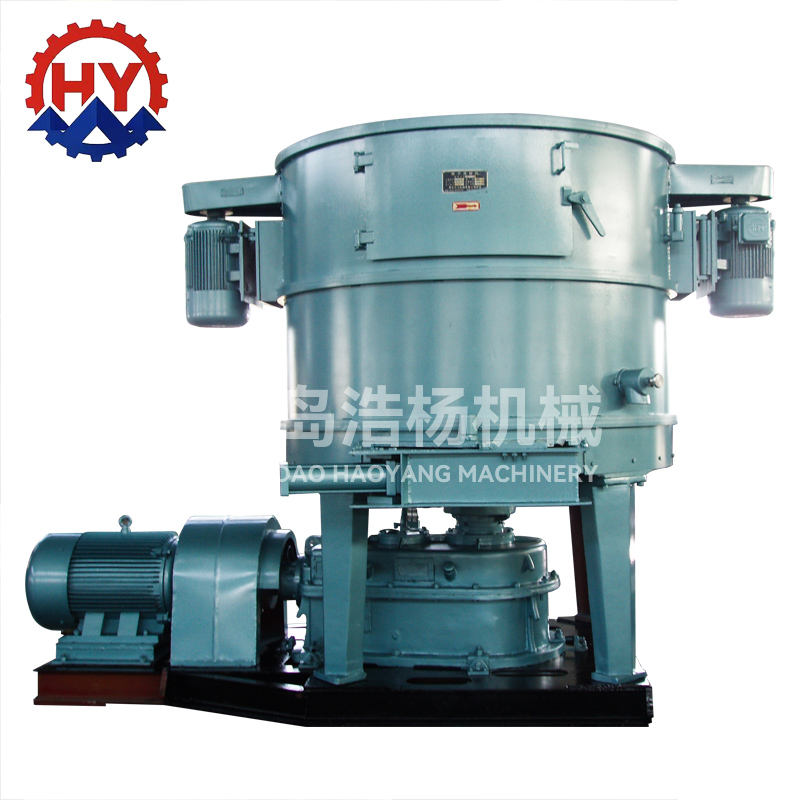

High efficiency Rotor type clay sand mixer for foundry green sand line

GS series high efficiency rotor sand mixer is designed and manufactured by referring to the advanced experience of sand mixer at home and abroad. It adopts double S type agitator and high speed rotor to rotate in the opposite direction, while the guide plate is stationary. Qingdao Haoyang Machinery Casting Co., Ltd. in foudry machine for many years and our company have mature technology,if any requirement please feel free to contact us. GS high efficiency rotor sand mixer with Low speed scraper and medium speed rotor are best matched, the sand mixing capacity is large, the sand mixing ability is strong, the sand comprehensive performance is good.

00:07

00:15

Product Description

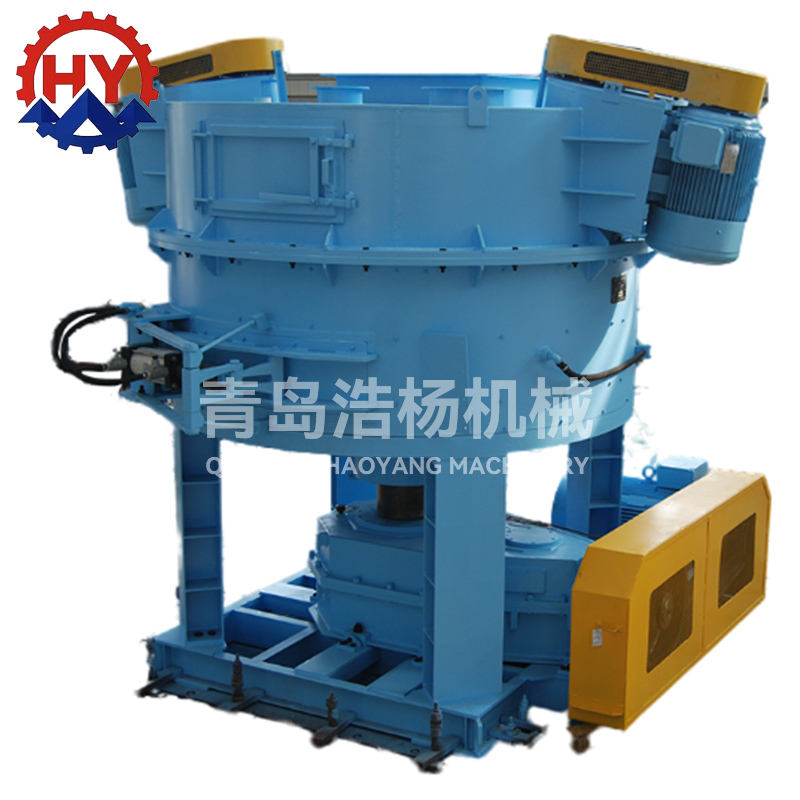

GS series high efficiency rotor type sand mixer/sand mixing machine

Foundry Sand Mixing Machinery is mainly used for large and medium-sized foundry sand mixed system, mold can be mixed dry sand, since the hard sand, sand and core sand surface can also be used for glass, ceramics , refractories and other industries a variety of mixed powder granular materials.

Uses：

Mainly used for casting workshop sand mixed, either mixed single machine molding sand can be mixed dry film sand, hard sand, the sand surface and core sand, glass, ceramics, refractories, etc. Can also be usedindustry mixed a variety of powder, granular materials.
Features of rotor sand mixer:

Its main working principle is: a low-speed rotating scraper is used to push the material to form a circular movement in the machine basin. The high-speed rotating rotor blade not only exerts an impact on the molding sand, but also cooperates with the scraper to apply a shear force to the molding sand, so that Impact and fierce friction occur between the
sand materials, so as to achieve the goals of fast sand mixing, good molding sand quality and low energy consumption.
In the case of the same diameter, the effective volume in the machine basin of the machine is large, the feeding amount is large at a time, the production efficiency is high, the sand mixing mechanism of the machine is relatively simple, and the maintenance is convenient.
The chassis is covered with alumina ceramics, which greatly improves the flatness and wear resistance of the chassis. The alloy blades are welded by scraper plates, and a stainless steel lining ring is added to the enclosure.

Purpose

The machine is mainly used for the mixing of molding sand in the casting workshop, which can be used to mix single sand for
machine modeling, dy film sand, self hardening sand, surface sand and back sand, and also can be used for mixing various powder
and granular materials in glass,ceramics, refractories and other industries.

Product application

This machine is mainly used for mixing various types and core sands in large and medium-sized casting workshops, and can also be used for mixing various powder and granular materials in industries such as glass, ceramics, and refractory materials.

Characteristic:

• Double "s" scraper and high-speed rake rotor are the best match, with large amount of sand mixing, strong mixing ability and good molding sand performance.

• New materials such as alumina wear-resistant ceramic backing plate, alloy knife block surfacing scraper etc. improve the service life of vulnerable parts.

• Soft start, alloy steel gear, lubrication controller, to ensure that the transmission system is stable and reliable, and can be started with load.

• Open the access door symmetrically for maintenance and cleaning

• The latest side discharge door is flexible to open and reliable to work,which completely solves the problem of sand
leakage at the bottom.

Working Principle

The equipment employs a high-speed rotating rotor to thoroughly mix dry sand with water, forming wet mortar. Under the action of
the rotor, the sand particles are suspended in water, and through the friction and shear forces generated by high-speed rotation,
the dry sand is rapidly mixed with water to form a uniformly dispersed mortar.

Electric Control System

Model:Automatic or manual type

Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Specification

item	value
voltage	380V
power(w)	according to actual situation
machine type	continuous casting machine
warranty	1 Year
weight (kg)	6800
place of origin	China
	Shandong
video outgoing-inspection	Provided
machinery test report	Provided
brand name	HAOYANG
dimension(lwh)	According to the equipment to determine
key selling points	Easy to Operate, Long Service Life

Technical Parameter

Certificate

Company Profile

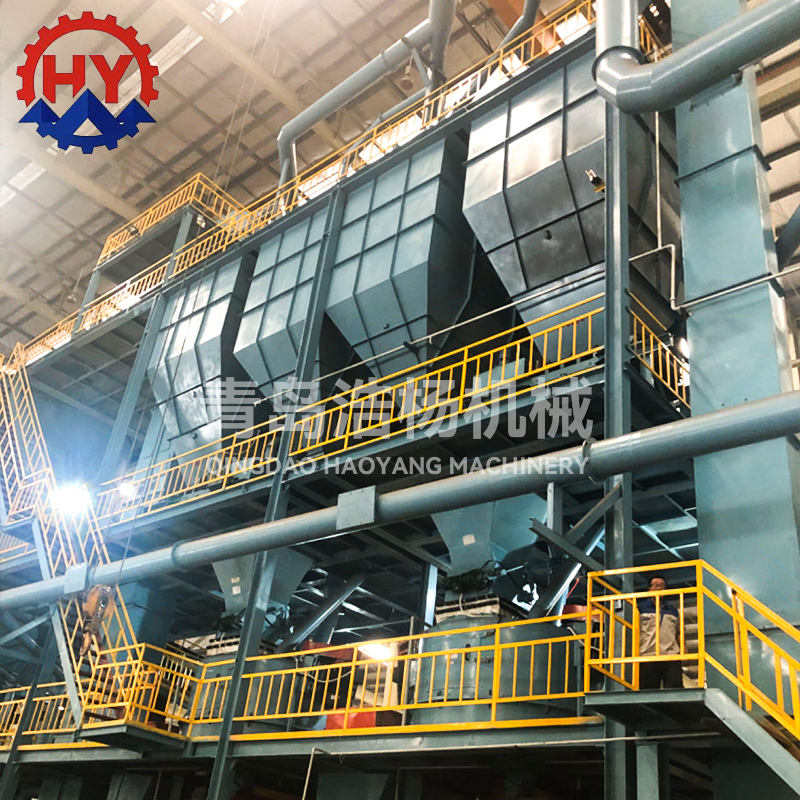

Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of casting, a world-famous coastal city. Covering an area of about 16,000m2, it is a professional equipment manufacturing company integrating design, development, manufacturing,installation and after-sales service. 20-200 tons/h clay sand mechanized molding line sand treatment equipment

Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment

Annual output of 1000-6,000 tons Casting water glass sand production line equipment

Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment

V-style modeling production line equipment and stand-alone supporting equipment

Disappearing mold production line engineering and stand-alone supporting equipment

Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust collector and other casting machinery and smelting equipment

Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to become a manufacturer of high-quality casting machinery and smelting equipment!
