Belt Permanent Magnet Separator Permanent Magnet Separator Belt for Metal & Metallurgy Machinery

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

Purpose:

The permanent magnet separator produced by our factory is widely used in metallurgy, mining, power generation, combustion, building materials, ceramics, flour, casting and other industries. It can separate strong magnetic substances such as iron nails, iron beans, cold iron, core bones, and sprues mixed in bulk materials from the materials to protect process equipment and transportation equipment such as crushing, screening, lifting, feeding, mixing, and shaping. It can also recycle scrap iron and be used for magnetic raw materials such as powder metallurgy and selected iron oxide scales.

Professional industrial shakeout machine


00:07
01:00

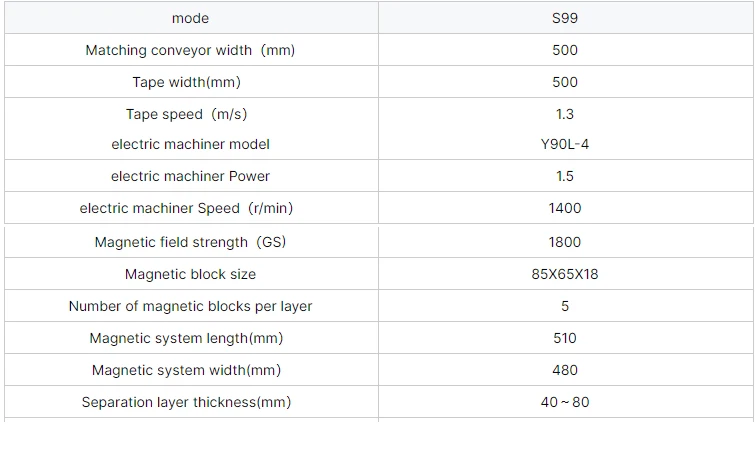

Technical Parameter
item
value
warranty
1 years
place of origin
China
brand name
Qingdao Haoyang Casting Machinery Co., Ltd.
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, motor
material
Metal / Coil
key selling points
Easy to Operate
After-sales Service Provided
Engineers available to service machinery overseas
Color
Customers Requirement
Application
Steel plate, beam, pipe, profile, channels etc
Frequency controller
Included

Detail technical data,pls confirm with supplier.

During operation, the iron block is attracted to the tape below the bottom plate, moves linearly with the tape, and is thrown out from below the magnetic system to achieve the separation purpose.
Product Application


This series of permanent magnet separators only requires regular oiling of the bearings to operate normally.

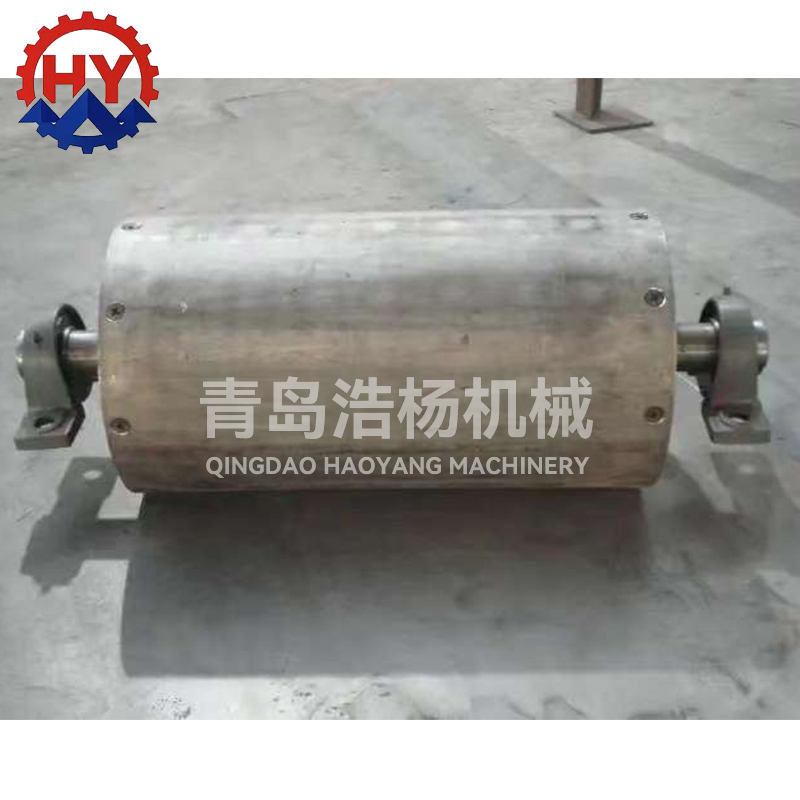

The magnetic system is fixed on the bottom plate, and the motor drives the gear reduction drum to rotate.
Product Features

The drive adopts oil cooled drum transmission, which is small in size, long in life, and easy to install with a sealing cover. The conveyor belt should use circular convex edge tape. High temperature resistance, high strength, and long service life.

The height of the magnetic plate can be adjusted inside the conveyor belt, and the height of the magnetic separator on the frame can be adjusted to ensure the best magnetic separation effect for the sand layer. The field strength distribution is uniform and not missed.

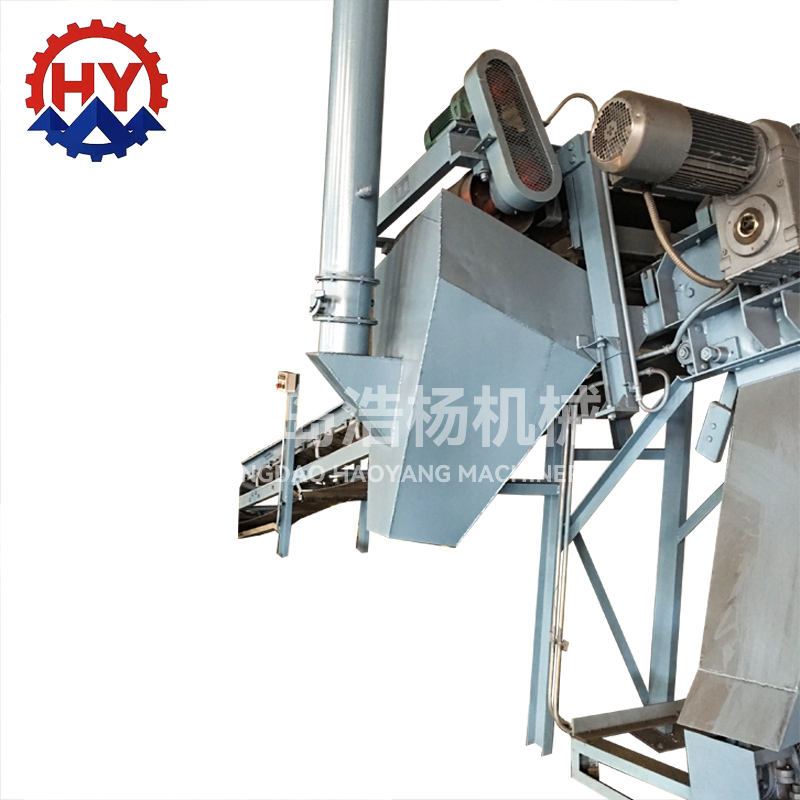

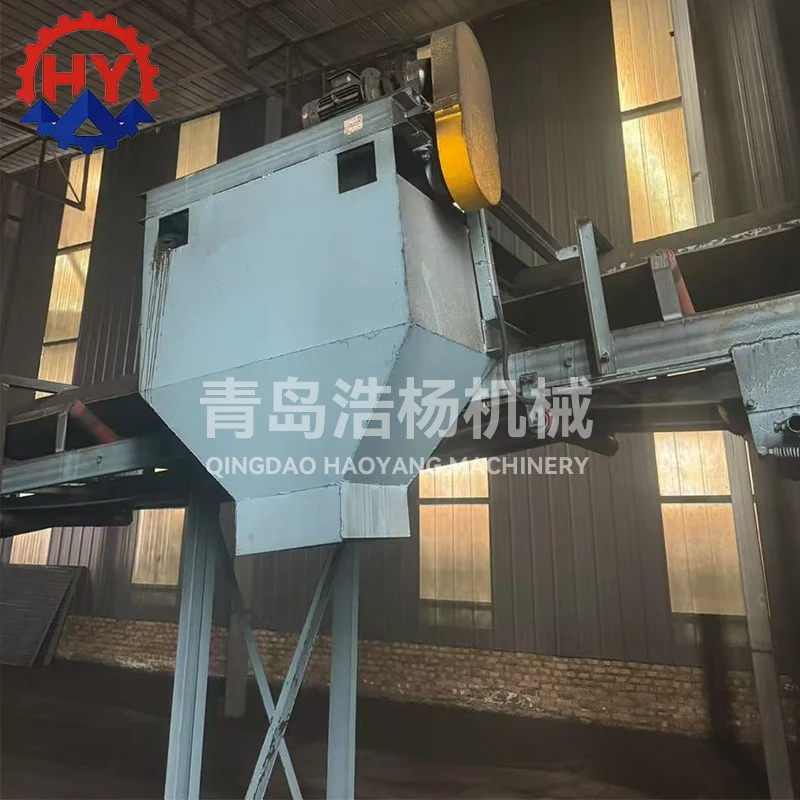

Flexible arrangement, can be used together with sand screening machines and belt conveyors. The machine itself is also a small belt conveyor that can achieve continuous operation or unloading.

When used together with a magnetic separation conveyor, all iron blocks can be completely screened out.
Electric Control System
Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

The advantages of Belt Permanent Magnet Separator

The structure of the permanent magnet separator is shown in the figure above. The magnetic system is fixed on the bottom plate, and the motor drives the gear reduction drum to rotate. During operation, the iron block is attracted to the tape below the bottom plate, moves linearly with the tape, and is thrown out from below the magnetic system to achieve the separation purpose. The magnetic system on the bottom plate adopts increasing the number of layers of magnetic blocks to further enhance the magnetic field strength, resulting in a large magnetic energy storage capacity, slow aging of magnetic blocks, and long service life. This series of permanent magnet separators only requires regular oiling of the bearings to operate normally.
Workshop
Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!


Company Profile
Packing & Delivery
FAQ
1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality ?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.

Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit
design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...
3.We can go to your factory to guiding installation and train your stuff.
