Product Description

Product description

Product descriptions from the supplier

250kg 500kg 750kg 1000kg 2T 5T steel tilting furnace machine iron electric smelting metal melting induction industrial furnace.
Medium frequency melting furnace is widely used in cast iron, stainless steel, copper, aluminum, lead, gold, silver, silicon,
special alloys and other fields. Because it has the characteristics of fast melting speed, less burning loss, easy to start,
automatic mixing, and significant power saving. So it will be praised by new and old customers.

Medium frequency coreless induction furnace is suitable for the smelting of cast iron, cast steel and non-ferrous metals. It is composed of open furnace body, furnace frame, and tilting oil cylinder, induction ring, magnetic yoke, high pressure carbon-free hose, casting fixed material at the furnace mouth and bottom, a full set of stainless steel water distributor, return water collector and clamp, including wall mounted water inlet and outlet.

◆ High power density configuration, 750KW-10000KW per ton;

◆ Open steel frame structure, easy to daily maintenance, overhaul, large specifications of H-shaped steel, or square steel pipe constitutes the basic structure of the furnace frame, the maximum tilt Angle is 95 degrees;

◆ The surface of the furnace platform knotted refractory material, the protection of the furnace body more fully, not easy to deformation;

◆ Welded steel structure, equipped with appropriate support and;

◆ It has the advantages of safety and reliability, good rigidity, good shock absorption effect, low electromagnetic radiation and easy maintenance.

Induction Melting Furnace:

It has the bottom of the oxygen blowing, reducing carbon, slagging function. Cyclone type smoke hood has excellent dust absorption
, thermal insulation effect and take up a small space. Long service life.we can produce 20kg-20ton metal smelting furnace. We can
also provide turnkey engineering services.

Product Features:

1. Various capacity 0.1T -20T, fast melting speed, 40-60 minutes /pot.
2. Have self-test function, real-time supervise.
3. Have leaking alarm device, PLC control, easy to operate.
4.The control cabinet is standard of the automobile line, easy to maintain.
5. The water way uses carbon-free hose , water separetors and clips use 304 stainless steel
6.Can meet 24 hours continuous work.
7. High efficiency , low cost , easy to maintain, energy saving ,safe and stability.

Safety Protection:

• Main circuit short circuit protection
• Main circuit phase loss protection
• Main circuit phase fault protection
• SCR over-current protection
• SCR overvoltage protection
• Cooling water temperature protection
• Low water pressure protection
• Furnace leakage protection
• Intermediate frequency power failure protection
• Intermediate frequency electric furnace fault protection rate and increase the life obviously

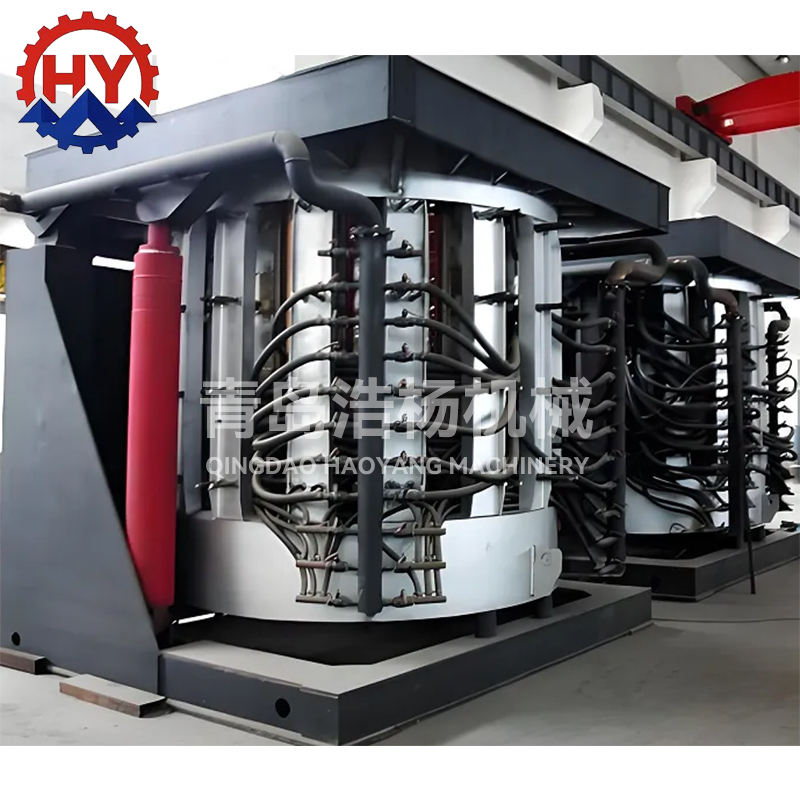

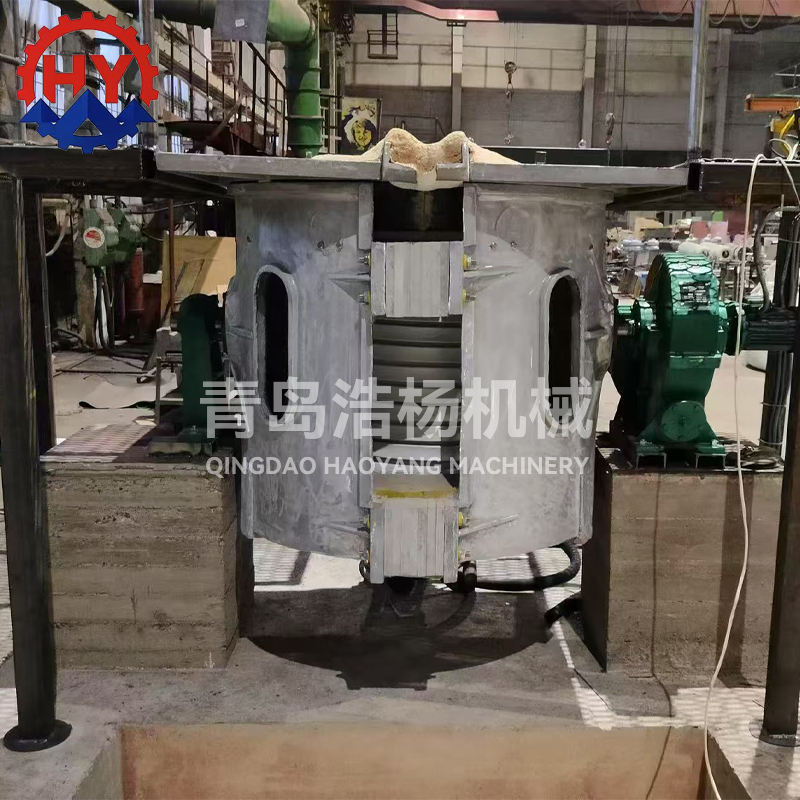

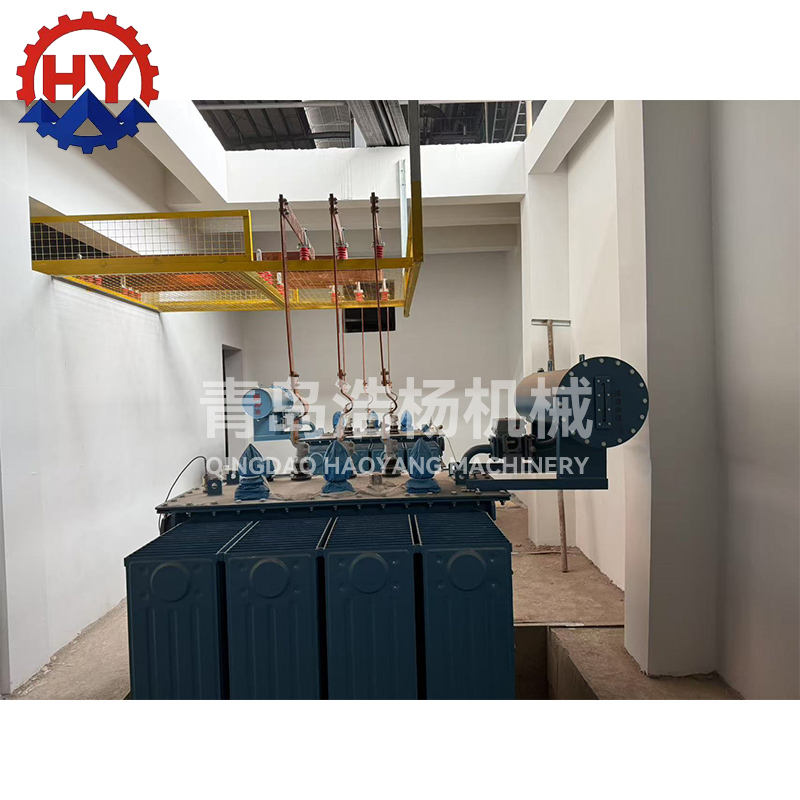

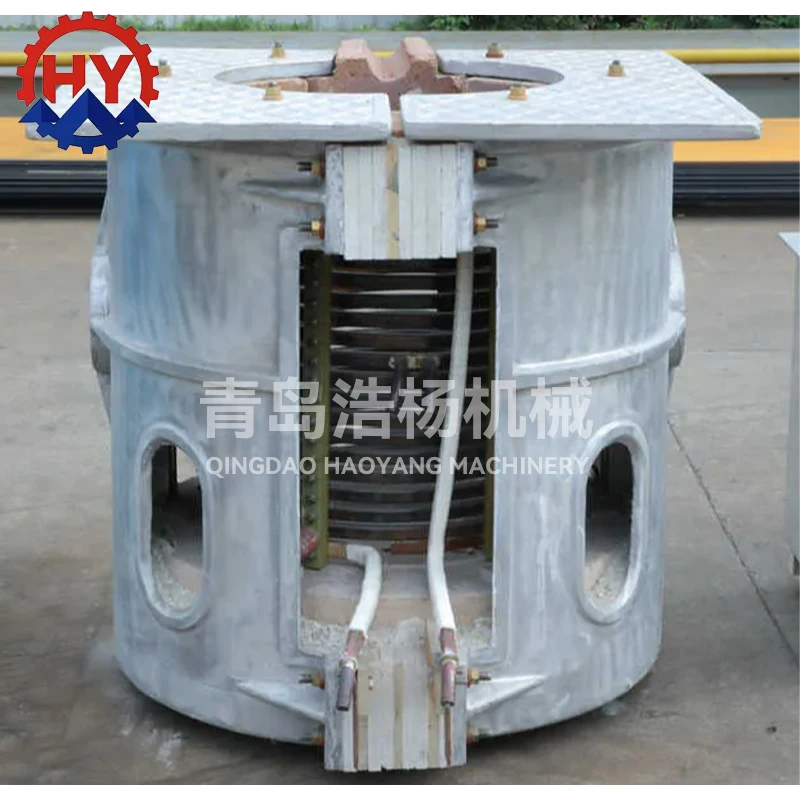

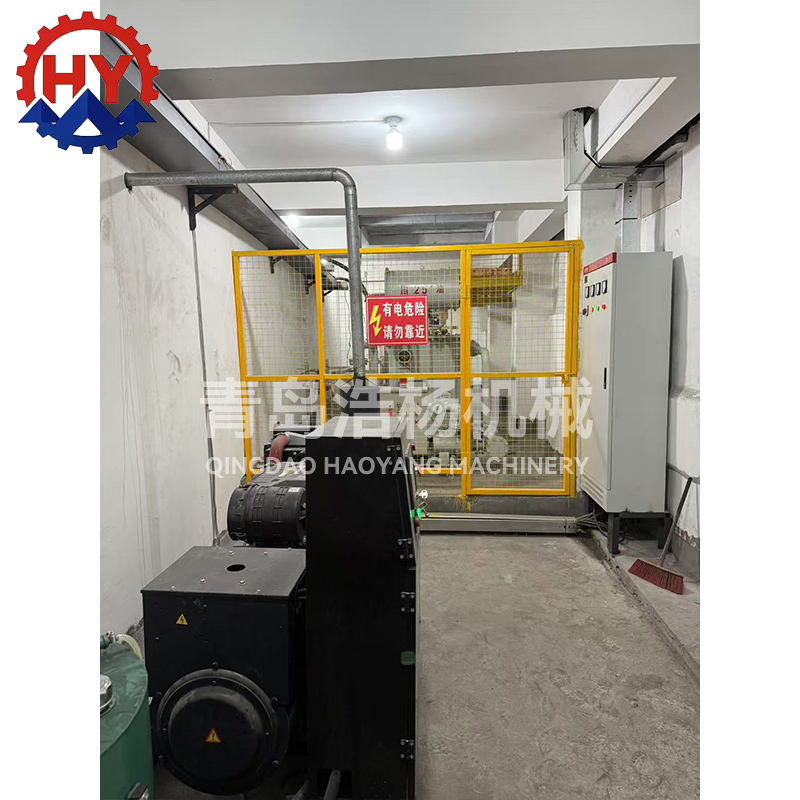

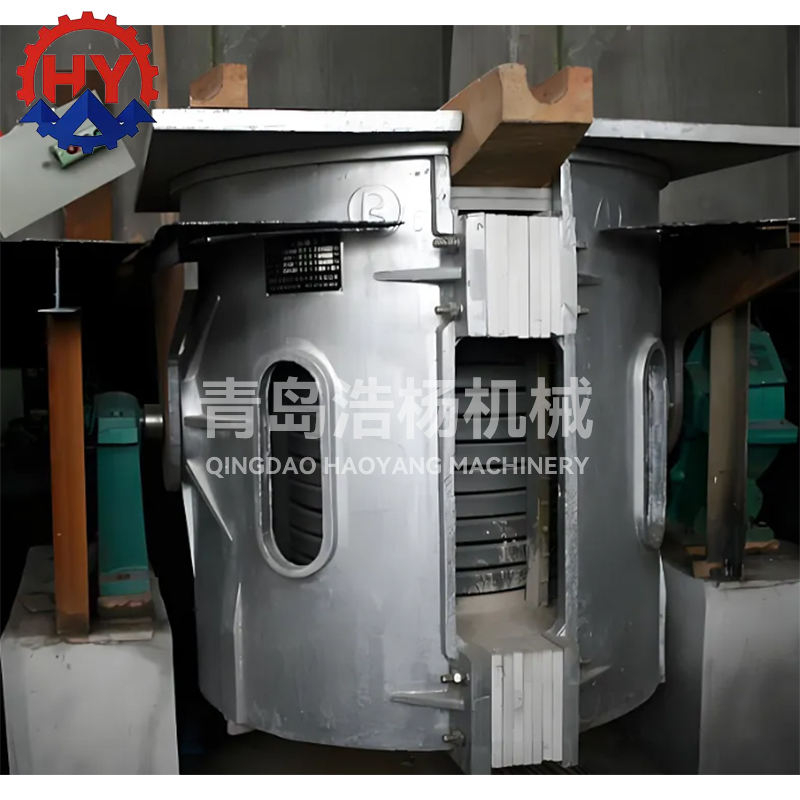

Product Show

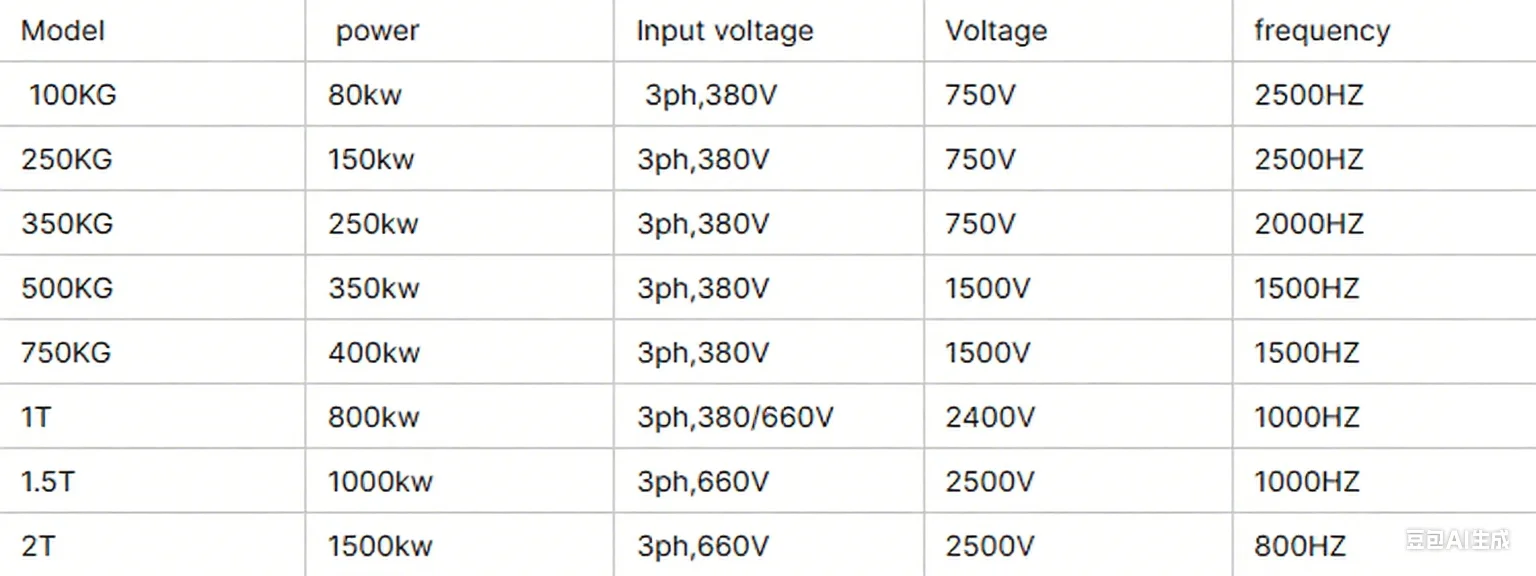

Technical Parameter

Packing & Delivery

Company Profile

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing, installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!

FAQ

1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. How it control for whole work?
When the mold of the desander box enters the cylinder bodyand rotates to a certain height with the cylinder body, it falls tothe
bottom of the cylinder body by self weight. Under the constantimpact and friction between them, the sand mold and the castingare
separated and reach the grid part of the cylinder body alongthe direction of the spiral piece. The sand enters the old sand system
and thecasting is discharged from the discharge port.

Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit
design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing
lists...
3.We can go to your factory to guiding installation and train your stuff.
