Inertia Linear Vibrating Screen Metal Metallurgy Sieve Powder Sifter Separator for Silica Sand Gypsum Screening Vibration High

Inertia Linear Vibrating Screen Metal Metallurgy Sieve Powder Sifter Separator for Silica Sand Gypsum Screening Vibration High

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

This series of sand screening machine is installed on both sides of the screen frame by two vibrating motors and makes reverserotation. According to the principle of synchronous pursuit it makes synchronous rotation to make the screen body move in a straight lineand materials are continuously thrown up and screened.According to the discharge requirements of the waste tank, it can be divided intothree types:front discharge, left discharge and right discharge.

Professional Of Inertia Linear Vibrating Screen

00:08

01:00

Technical Parameter

item	value
warranty	1 years
place of origin	China
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal / Coil
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

S45 series linear screen is a screen machine with simple structure, high dewatering efficiency,reliable operation and low energy consumption. It is suitable for screening, classification and dewatering of various minerals.

Product Application

The crossbeams of the screen are sprayed polyurethane, and easy-to-replace protective plates are installed, which are resistant tocorrosion,erosion and wear;

The magnetic system is fixed on the bottom plate, and the motor drives the gear reduction drum to rotate.

Product Features

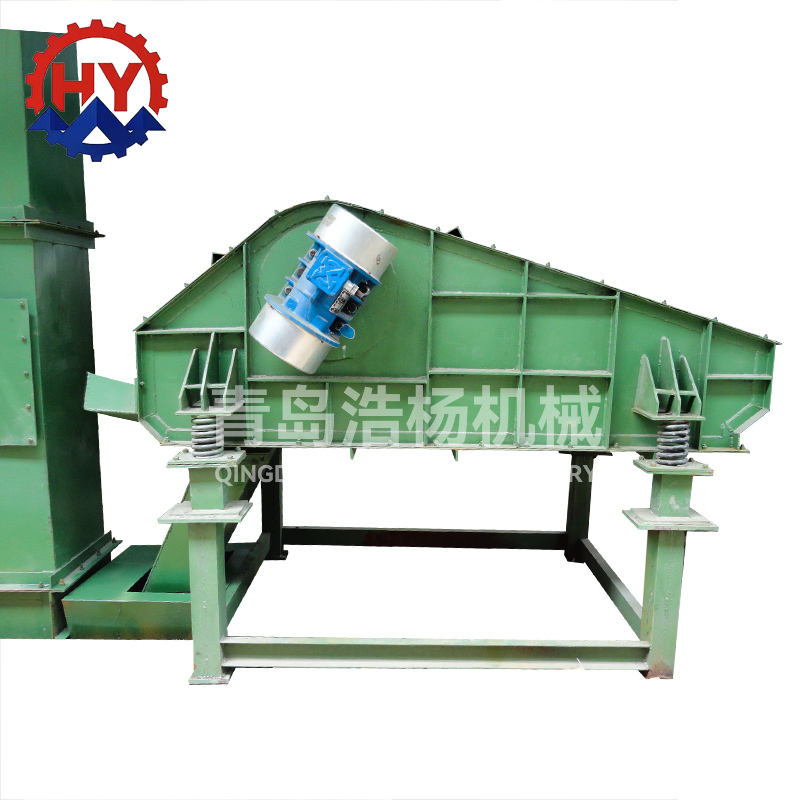

The inertia linear vibration sand screening machine is a new and efficient screening equipment, mainly used for screening new or old sand in casting workshops, and can also be used for screening other granular and loose materials.

This series of sand screening machines has five specifications: screening width of B=550, B=650, B=800, B=1000, and B=1200 millimeters. This series of sand screening machines is equipped with two vibration motors (or exciters) installed on both sides of the screen frame and rotating in reverse.

According to the principle of self synchronous pursuit, they move synchronously, causing the screen body to vibrate in a straight line. The material is continuously thrown up and screened.

The equipment is installed horizontally and has both screening and conveying functions. It has the characteristics of low power consumption, compact structure, high screening efficiency, good spring isolation effect, and small dynamic load transmitted to the foundation.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

The advantages of Belt Permanent Magnet Separator

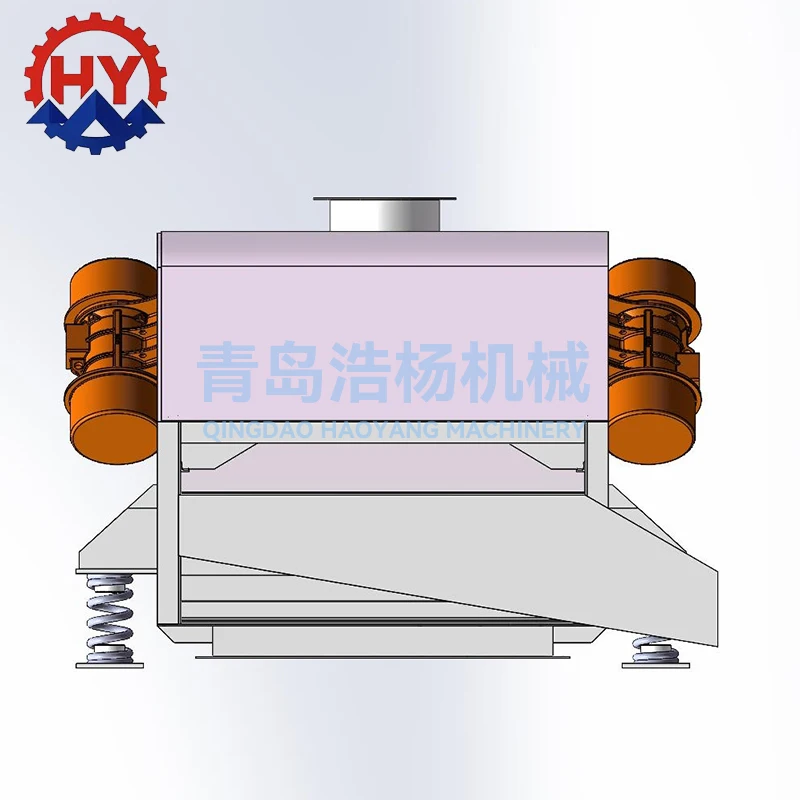

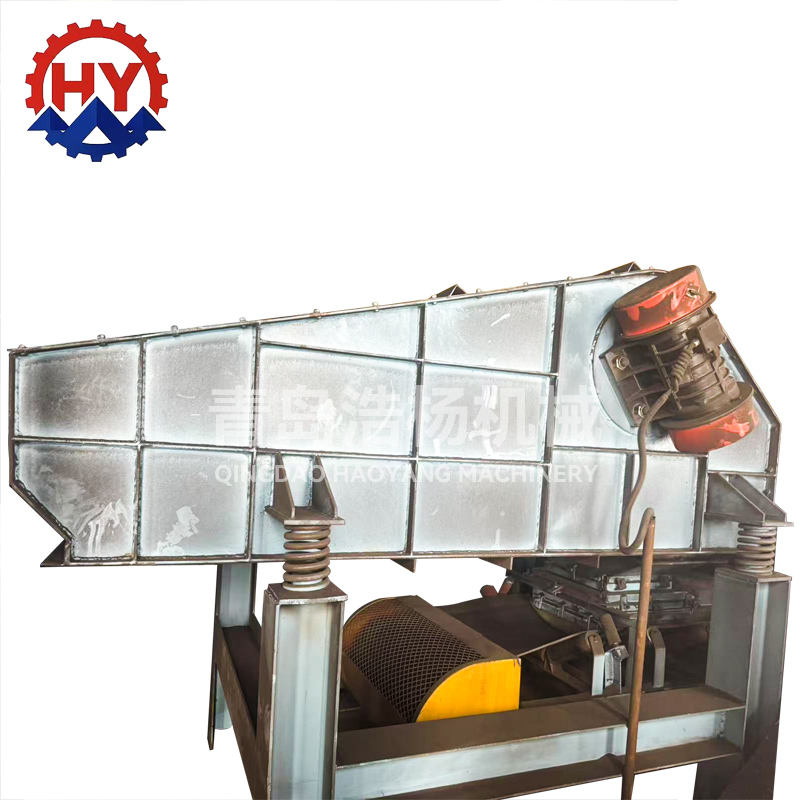

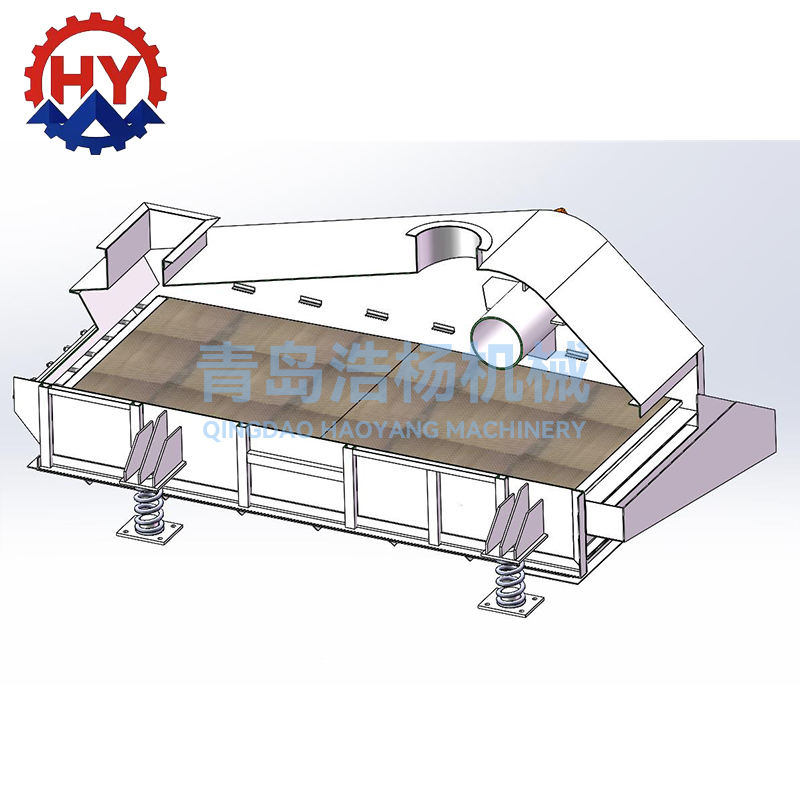

The machine is mainly composed of a screen body, vibration motor, screen mesh, spring, waste sand tank, etc. The sand screening machine is supported by four damping springs, and two vibration motors are symmetrically installed on both sides of the screen body, which rotate synchronously in the opposite direction. The vibrating screen moves in a straight line along the direction perpendicular to the motor axis under the action of excitation force. The material is continuously thrown forward on the screen, and the screened material falls into the groove bottom plate through the screen and is discharged through the discharge port. The unloading methods of the waste bin include front unloading, left unloading, and right unloading. The sieve body should not be rigidly connected to other equipment, and the gap should be greater than 60 millimeters.
