Product Description

Product description

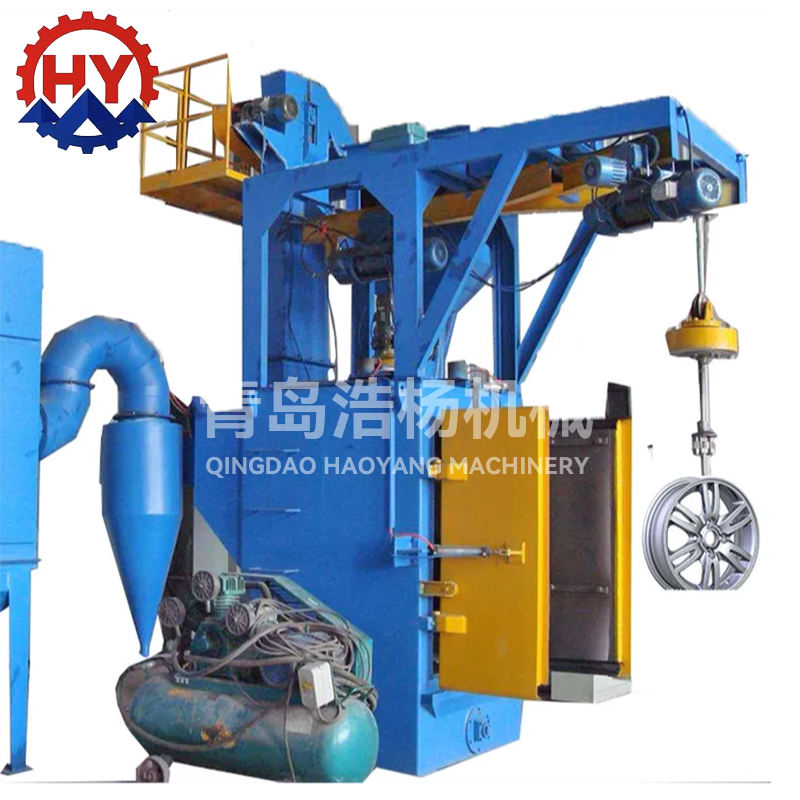

hanger shot blasting machine

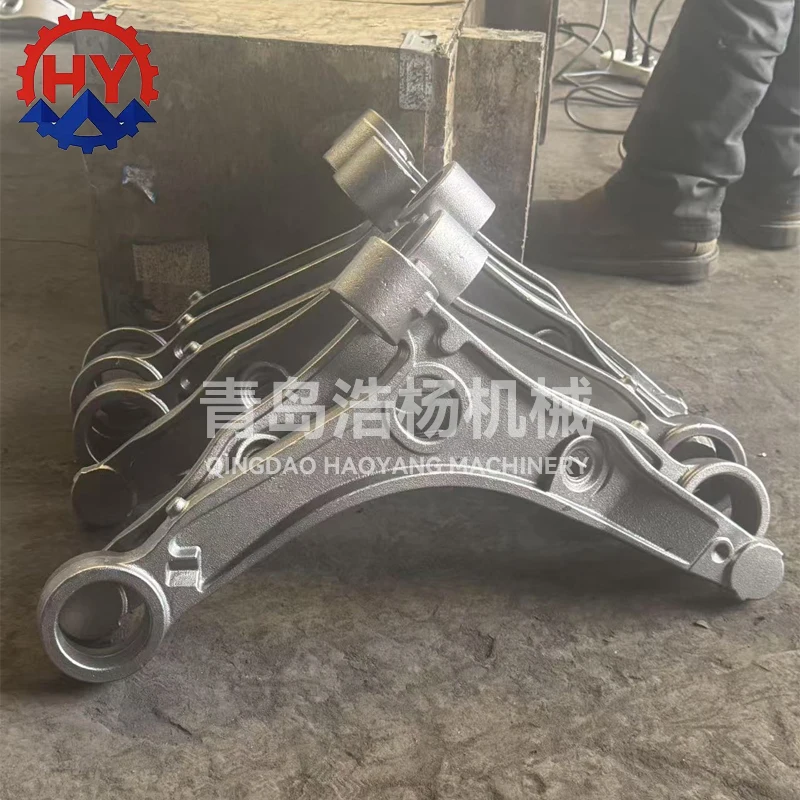

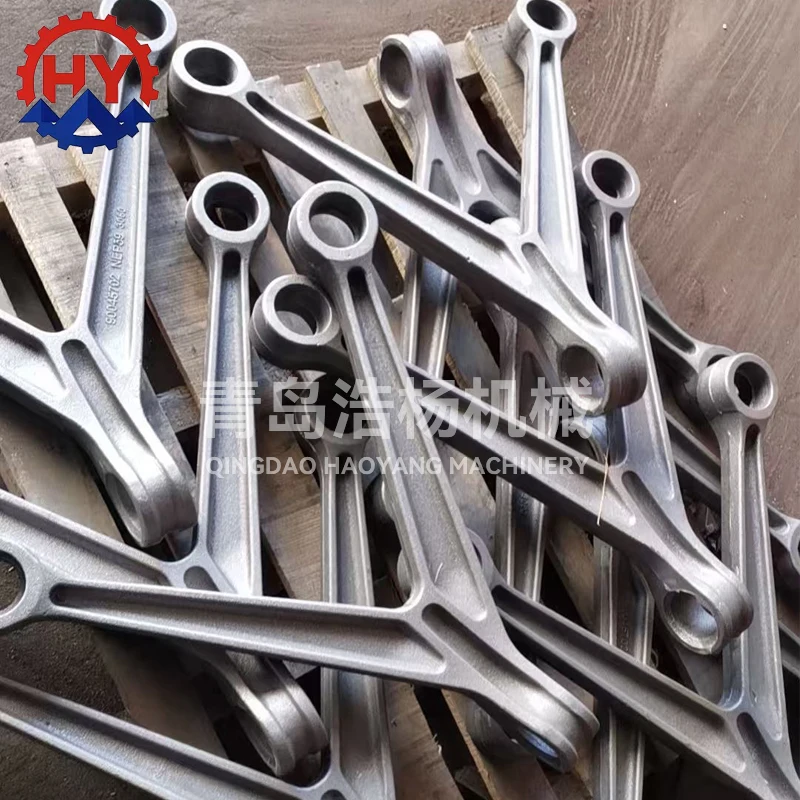

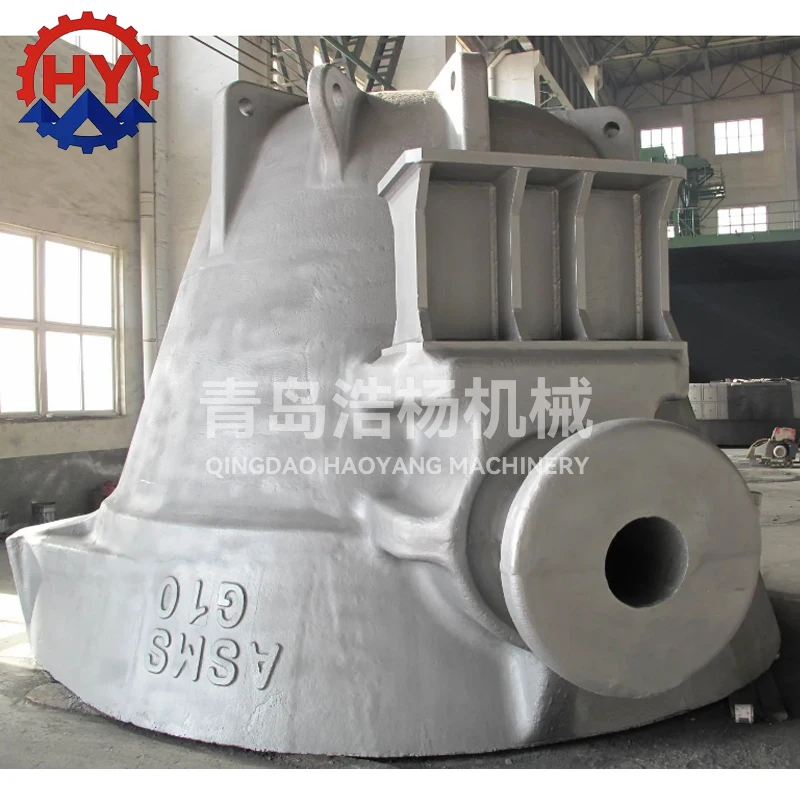

Hook Type Shot Blasting machine is for surface cleaning or strengthening treatment of small castings, forging parts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact. hook shot blasting machine

Main Features

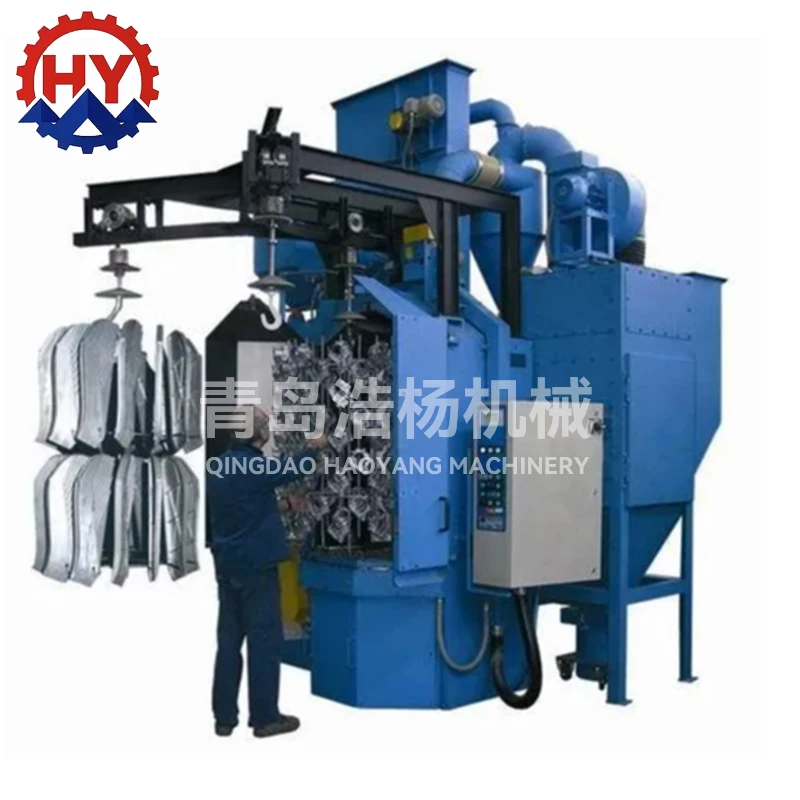

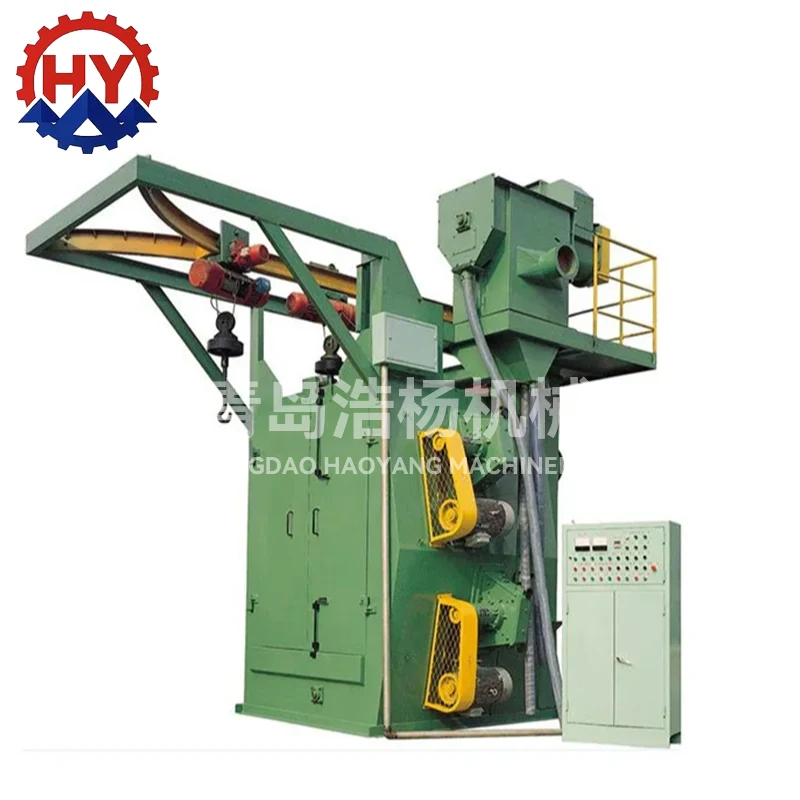

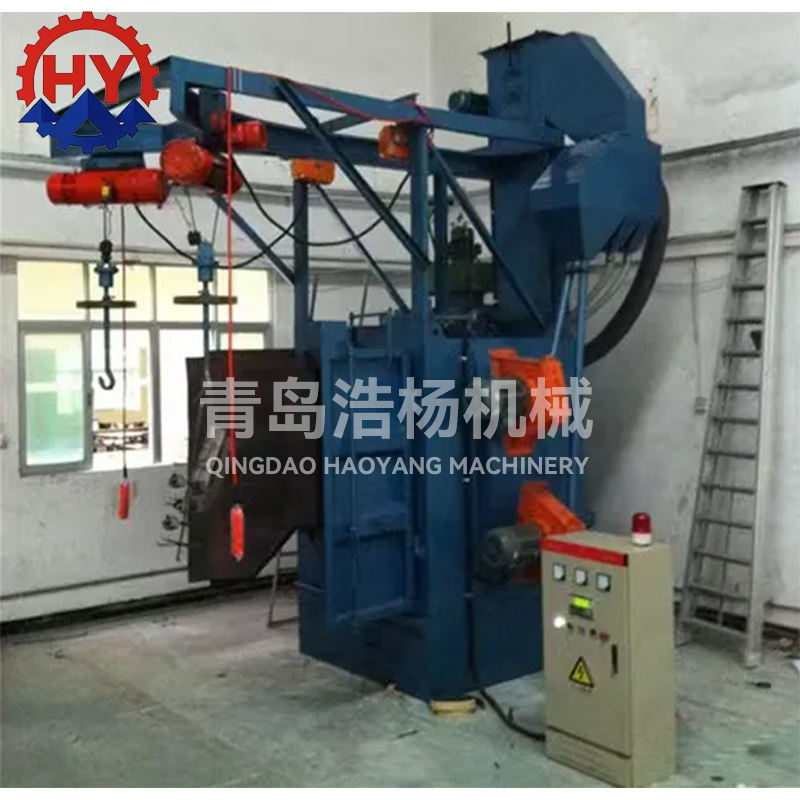

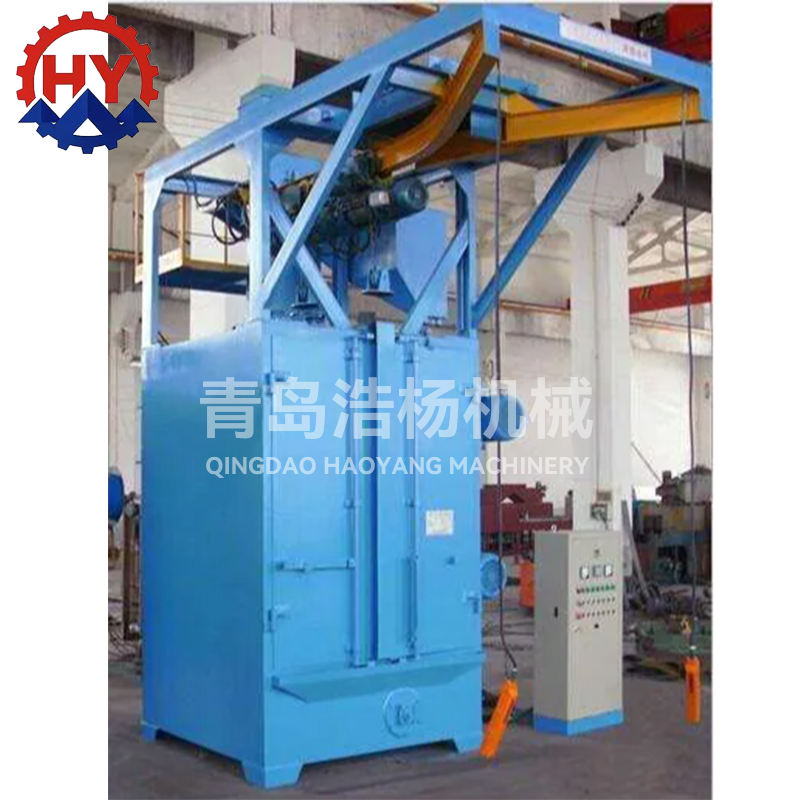

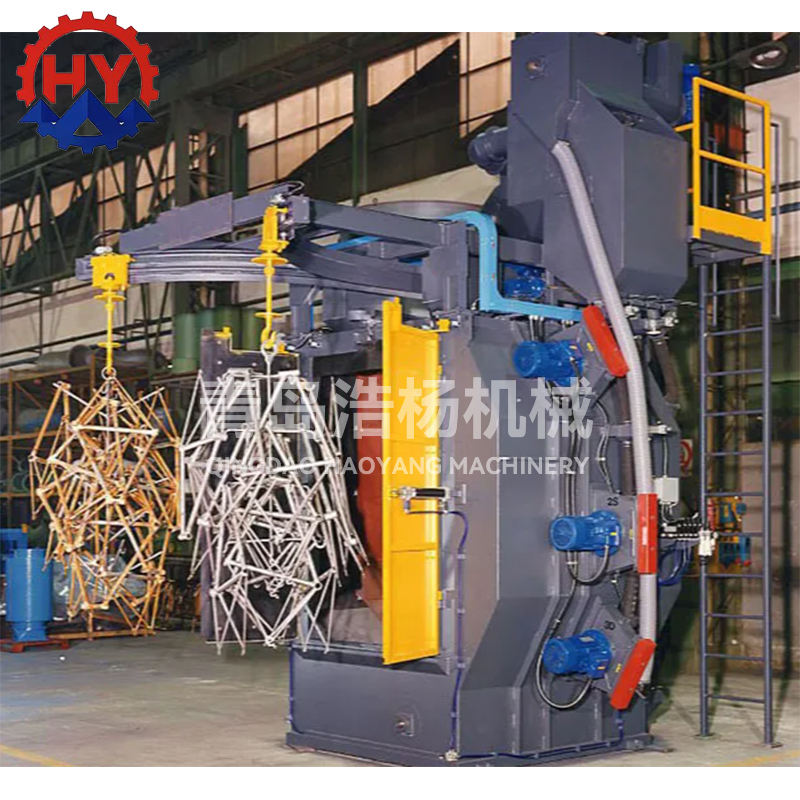

This series is hook type shot blasting machine, is mainly used for surface cleaning of casting, structure, non-ferrous and other parts. This series shot blasting machine have many types, such as single hook type, double hook type, lifting type, non-lifting type. It has advantage of non-pit, compact structure, high productivity, etc.

1). The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of
high efficiency, compact structure.

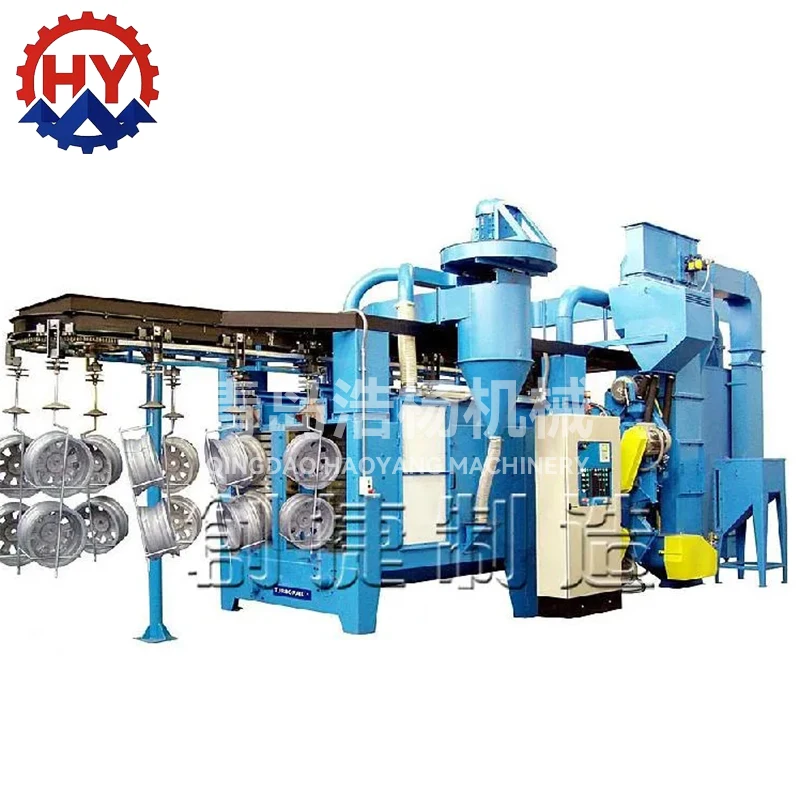

2). Workpieces can be transported continuously. The working procedure is that, setting the speed, hanging workpieces over the
hooks, and removing them after shot cleaning.
3). Each single hook can hang weight from 10 kgs to 5000 kgs with high productivity and stable running.
4). It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor
casing.
5). It is an ideal choice for auto, tractor, diesel engine, motor and valve industry. shot blasting machine hook type

Applications:

Descaling of forged or heat treated parts
Desanding of ferrous and non-ferrous metal castings
Deburring of metallic and non-metallic parts
Deflashing of die cast parts
Contaminant removal

Advantages:

1. Wide application, Easy to install and use.
2. Customized, Meet your needs.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
4. Exquisite appearance (mature craft).
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
7. Factory direct selling with competitive price.
8. Over 10 years' production experience.
9. Professional design team to serve you.
10. Mainly electrical control system adoptsinternational brand.
11. CE certificate assure you our quality.

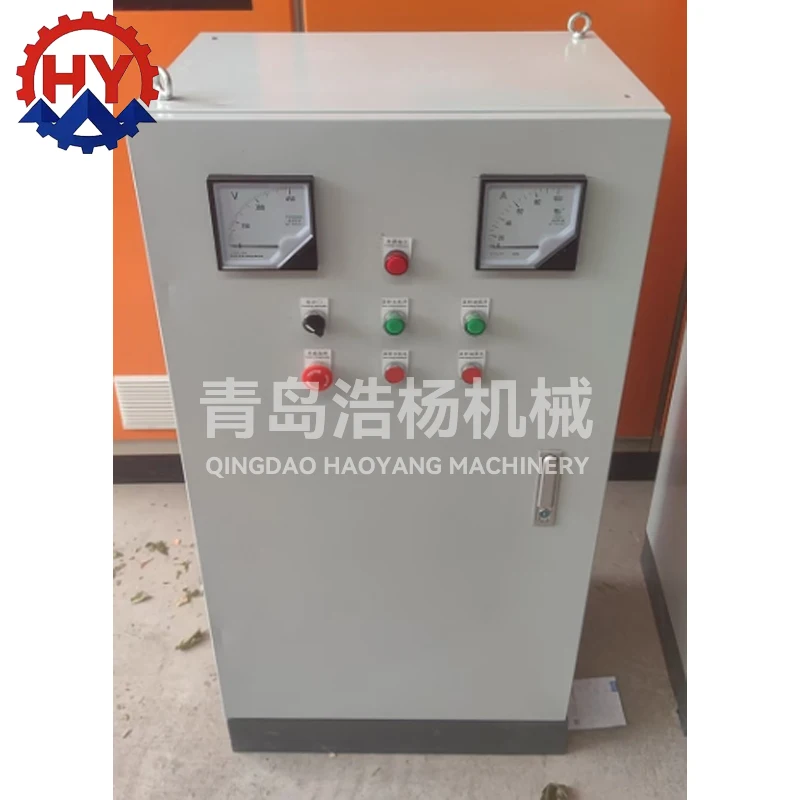

Electric Control System

Model: Available in both automatic and manual operation modes, catering to diverse operational needs.
Control Unit: PLC. Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel.

Specification

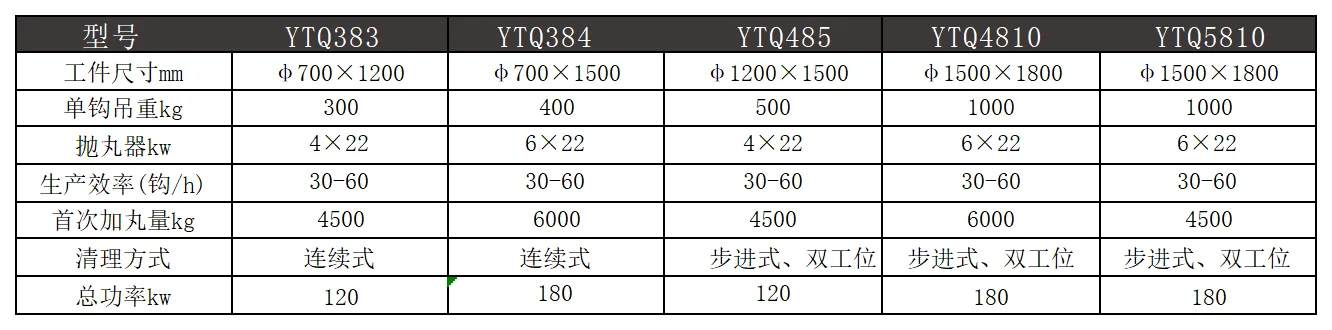

Product Paramenters

item	value
power(w)	According to customer requirements
weight (kg)	4000
use	Burnishing, Container / Bottle Cleaning, Deflashing
cleaning process	high pressure cleaning
warranty	1 Year
place of origin	China
brand name	Haoyang
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Engine, Bearing, Gearbox, motor, Pressure vessel
key selling points	Easy to Operate, Famous brand PLC, Remote Control, Competitive Price, Long Service Life

Packing & Delivery

Company Profile

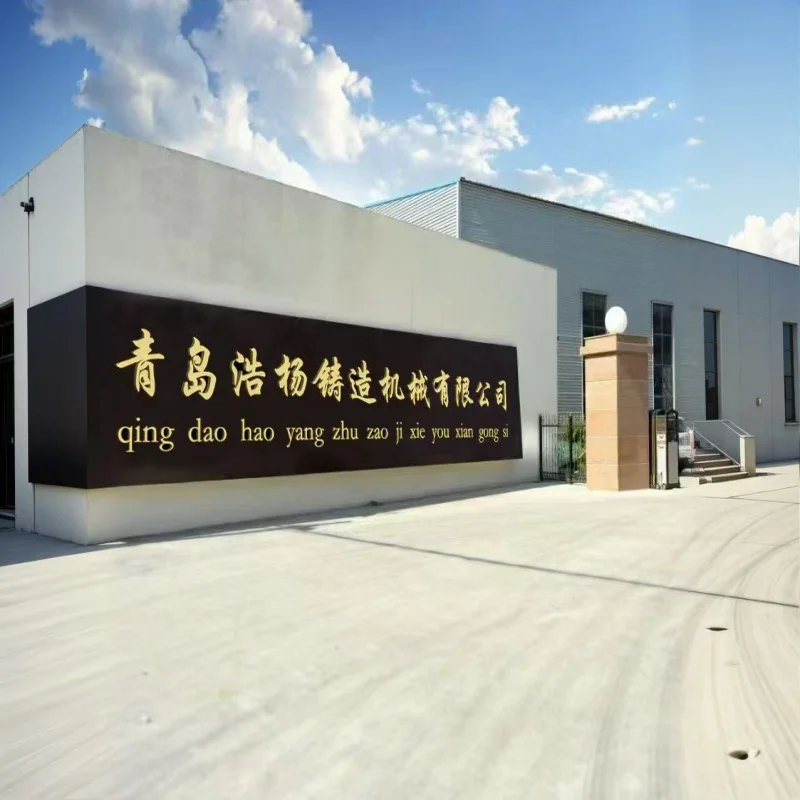

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing, installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!

FAQ

1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. How it control for whole work?
When the mold of the desander box enters the cylinder bodyand rotates to a certain height with the cylinder body, it falls tothe
bottom of the cylinder body by self weight. Under the constantimpact and friction between them, the sand mold and the castingare
separated and reach the grid part of the cylinder body alongthe direction of the spiral piece. The sand enters the old sand system
and thecasting is discharged from the discharge port.

Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit
design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing
lists...
3.We can go to your factory to guiding installation and train your stuff.
