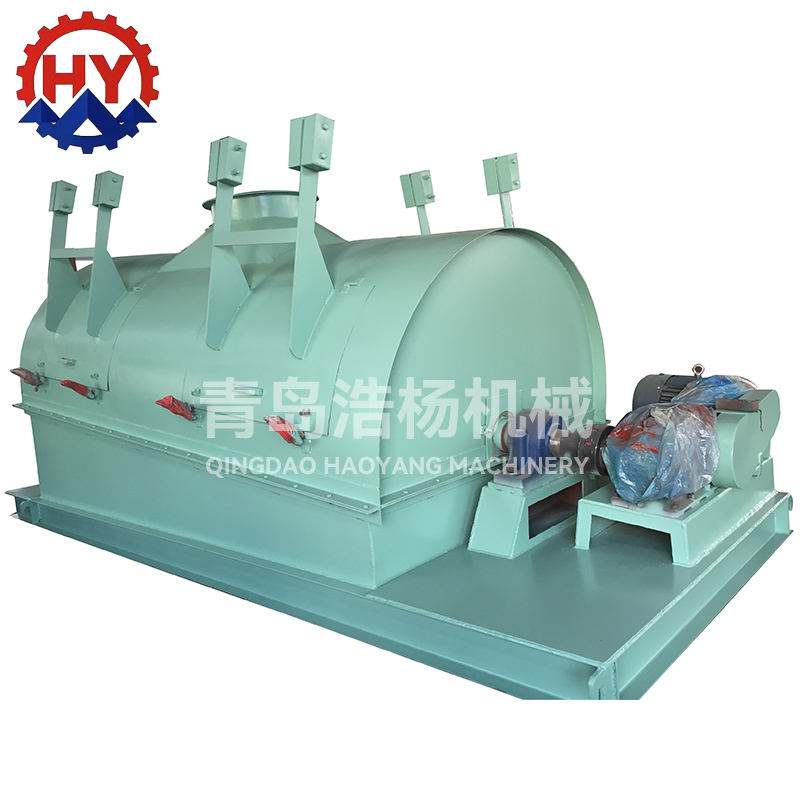

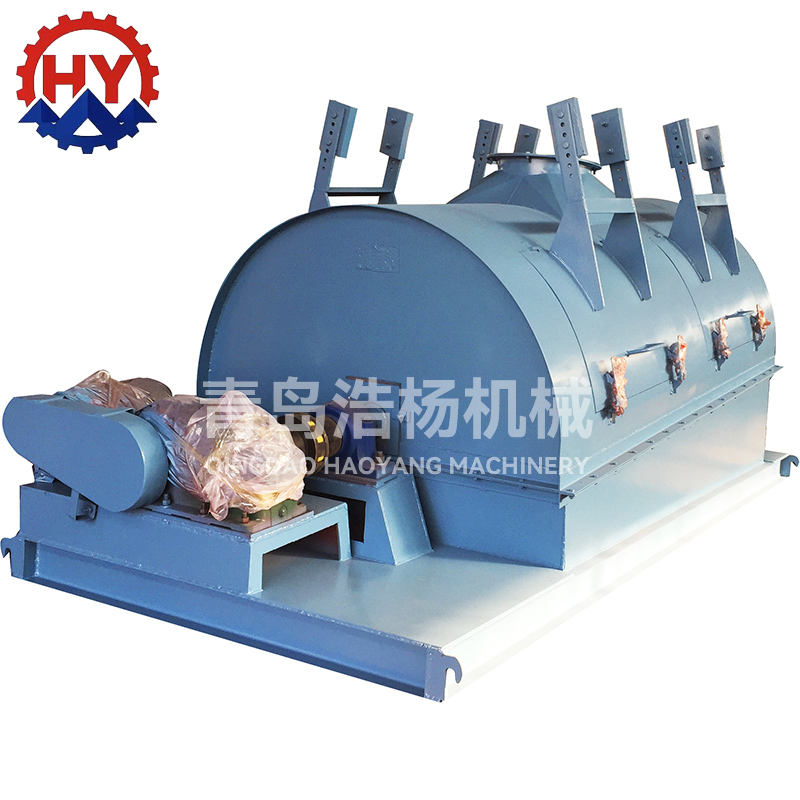

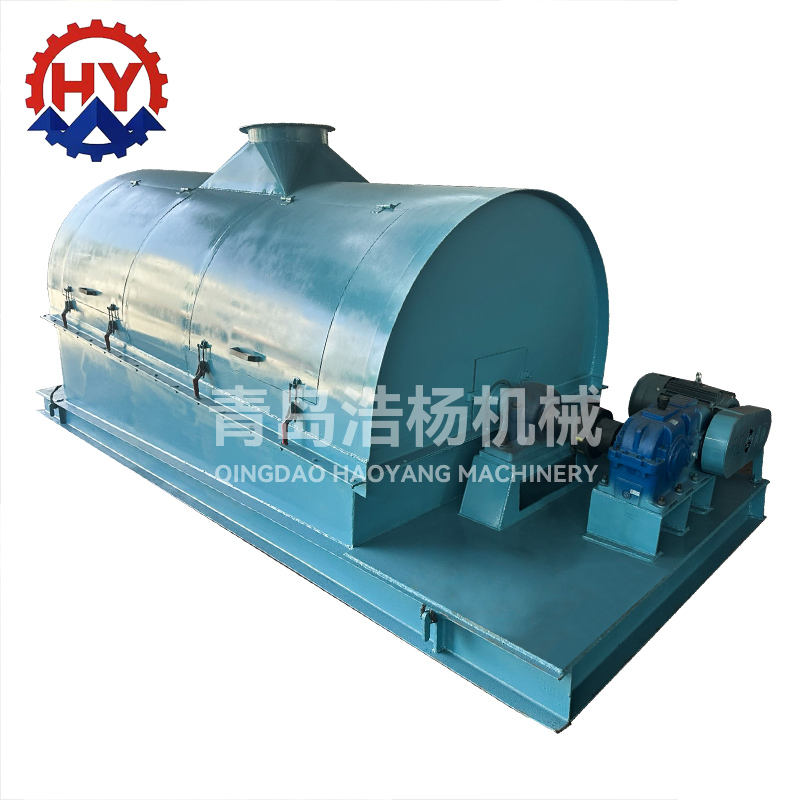

Fine Hexagonal Roller Sand Screening Machine Casting Sand Chemical Machine Parts Durable Metal Casting Machinery

Fine Hexagonal Roller Sand Screening Machine Casting Sand Chemical Machine Parts Durable Metal Casting Machinery

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical Parameter

item	value
weight (kg)	900
warranty	1 years
place of origin	China
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

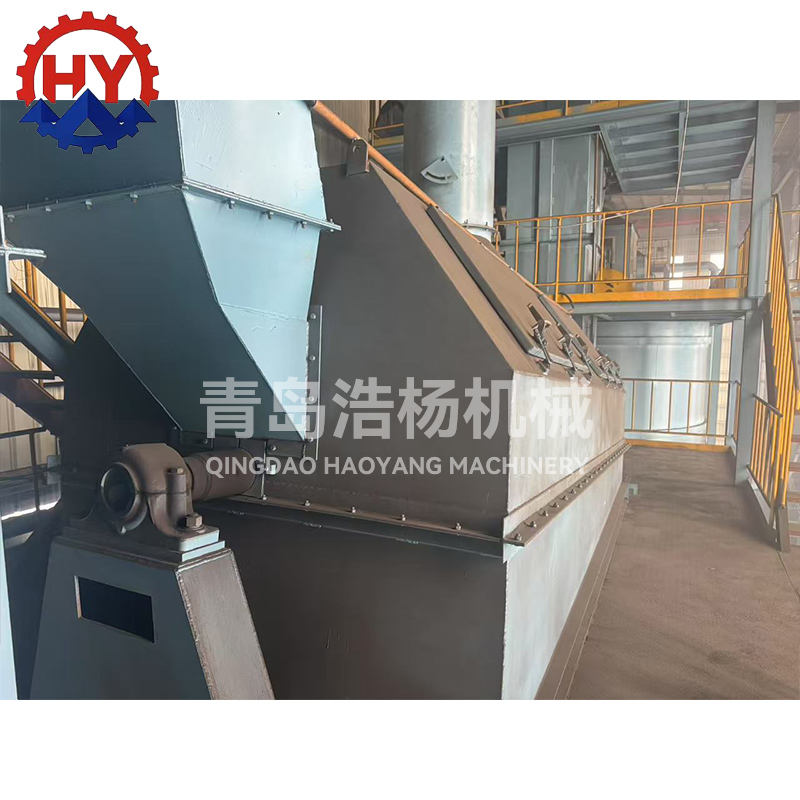

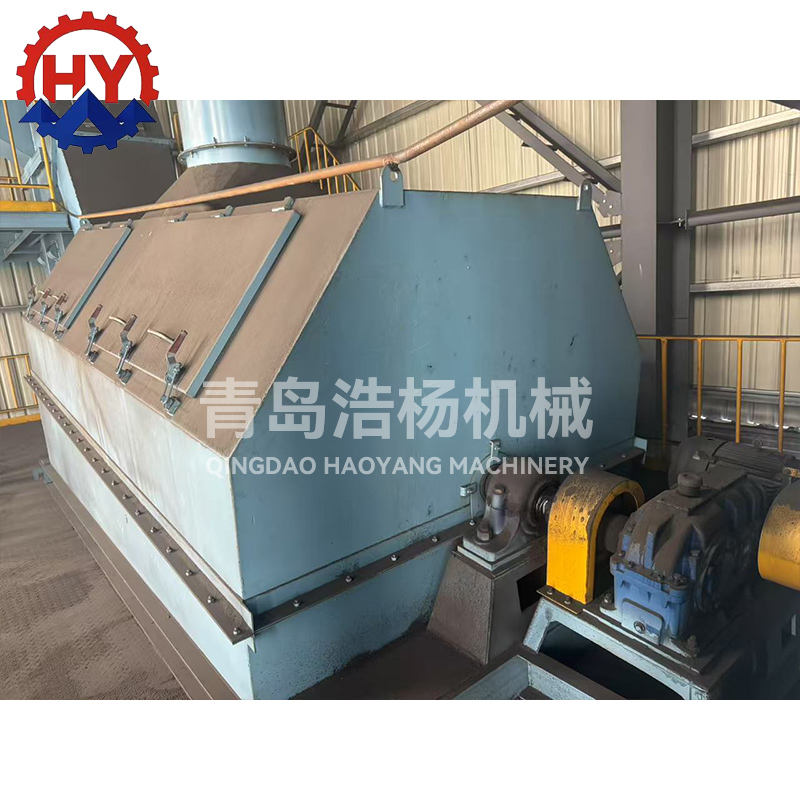

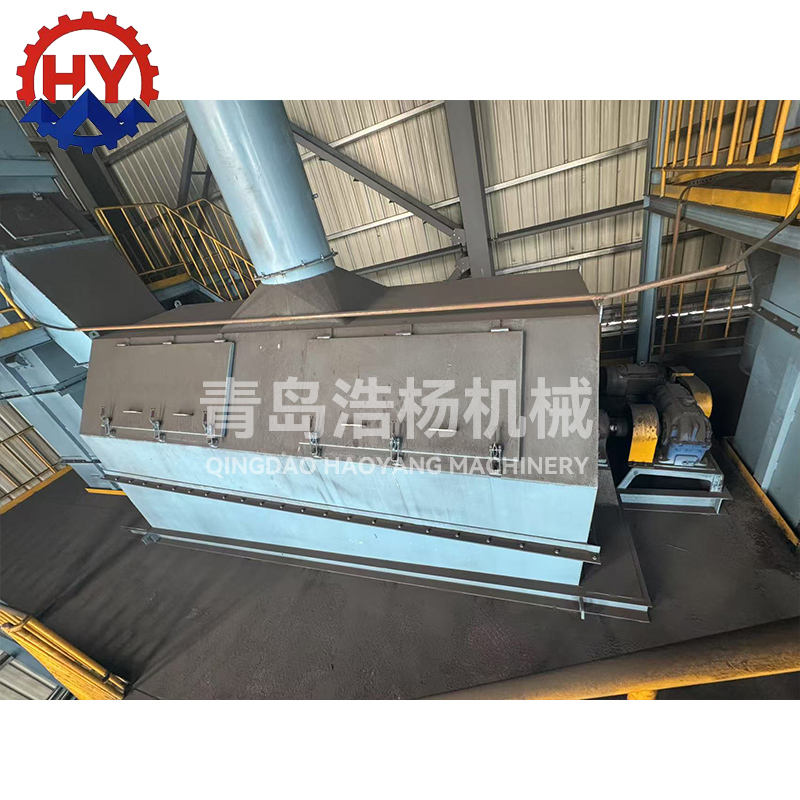

The fine hexagonal screen is used for fine screening of old sand in the sand processing department of the foundry workshop.During the operation, the old sand enters the screen body from the feeding port. The spiral blades in the feeding section and the rotation of the screen body cause the material to rise, fall and move forward, achieving crushing and fine screening. Meanwhile,under the effect of the ventilation and dust removal system, there is a certain cooling effect on the old sand, and the screen residue is discharged from the waste outlet.

Product Features

This hexagonal screen is equipped with a vibration device on the feeding port side of the equipment, which can prevent sand from
being suspended. This hexagonal screen is mainly used in conjunction with various sand processing machinery in the foundry
workshop to form an automated production line for sand processing mechanization

The hexagonal large end feeding increases the screen area by 30-40%. The screen mesh adopts rectangular mesh holes, which
increases the chance of materials passing through the screen. Each side of the hexagon protrudes outward, increasing the screening
area and enhancing the screening efficiency.

Increasing the speed of the sieve (approximately the theoretical speed) enhances the upward height and impact force of the
material's descent, which is conducive to crushing and screening and improves efficiency.

The air intake and ventilation force are strong, which controls the mud content and achieves a certain cooling effect.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Advantages of hexagonal screen

The fine hexagonal screen, as an outstanding achievement in the field of screening equipment, embodies the essence of cutting-edge technology and exquisite manufacturing craftsmanship. They are designed to precisely meet the strict standards for fine material screening operations in various industries. Whether it is the precise control of material particle size, the efficient removal of impurities, or ensuring the continuity and stability of the production process, this series of equipment has demonstrated extraordinary capabilities. It can be regarded as a pillar in the fine screening category, laying a solid foundation for the high-quality and efficient operation of the diversified industrial production chain and comprehensively empowering the modern industrial production system.

Product Description

Purpose:

It is suitable for screening powder and granular materials in metallurgy, mining, chemical industry, building materials and foundry. At the same time of screening, ventilation and dust removal are added to reduce the temperature. Stable operation, reliable work, fine screening. Hexagonal big end feeding, screen area is equivalent to increase 30% - 40%. Close to the theoretical speed, the material rushes down from the high point of the screen barrel to achieve crushing and fine screening.

Professional material screening equipment

00:07

01:00

Product Application

This hexagonal screen features high productivity, excellent screening effect, reliable operation and low energy consumption.

It is applicable to the crushing and screening of old sand mainly for screening purposes, as well as the screening and crushing of old sand for high-pressure molding.

Workshop

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!
