Automatic H Beam Dust Blaster Shot Blasting Machine Efficient Abrators Sandblasting Machine

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Advantages of roller conveyor type shot blasting machine：

1. Wide application, Easy to install and use.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
2. Customized, Meet your needs.
4. Exquisite appearance (mature craft).
7. Factory direct selling with competitive price.
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
10. Mainly electrical control system adoptsinternational brand.
8. Over 13years' production experience.
9. Professional design team to serve you.
11.CE certificate assure you our quality.

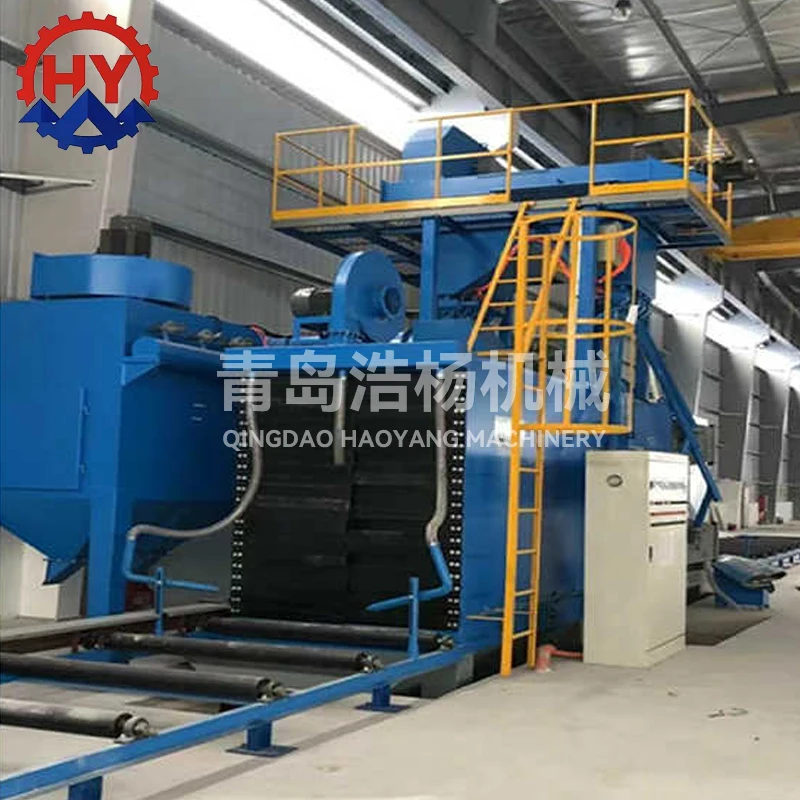

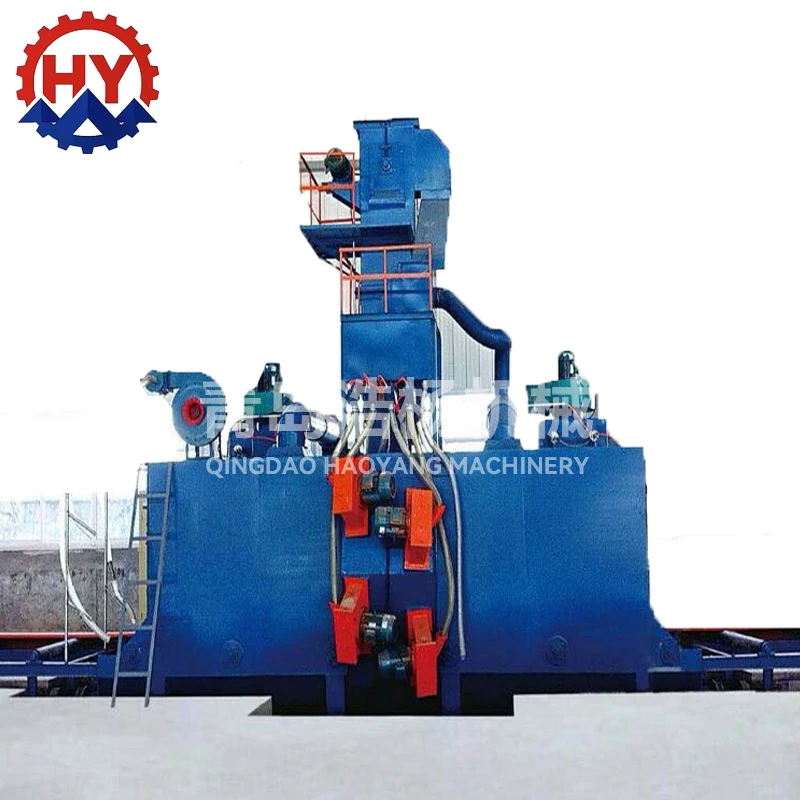

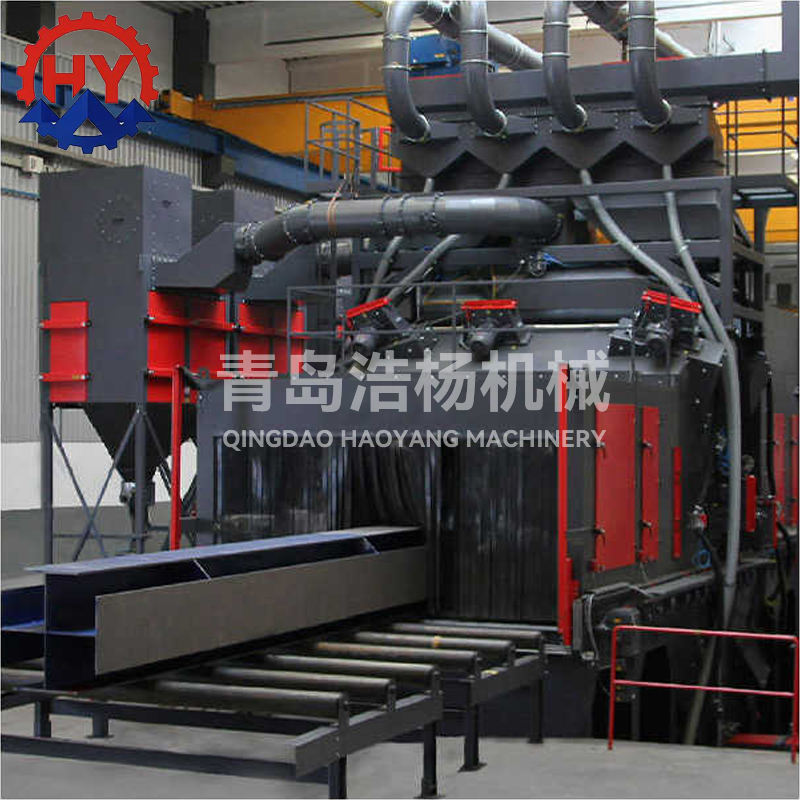

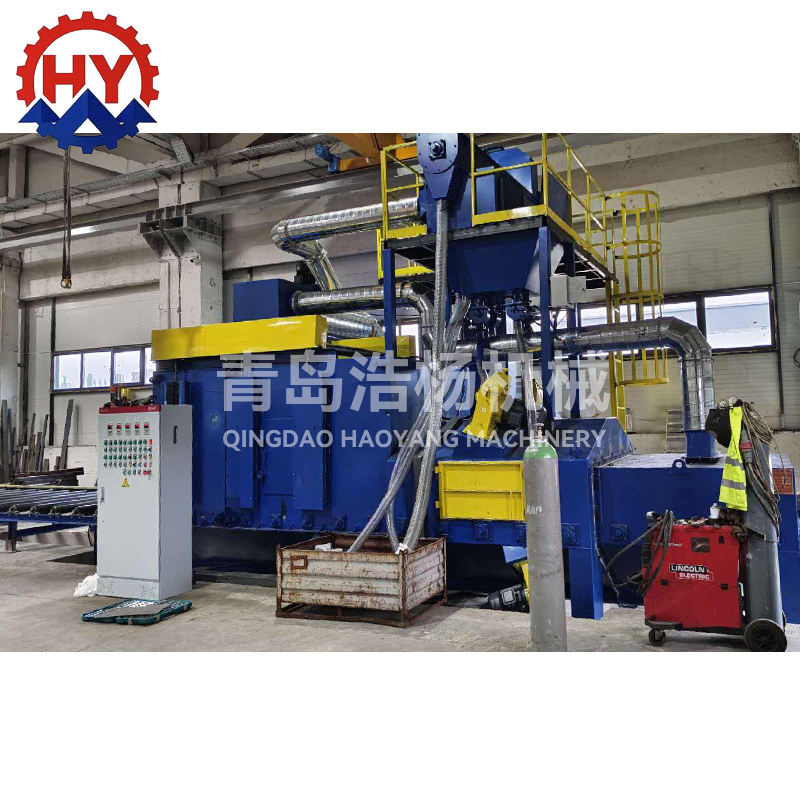

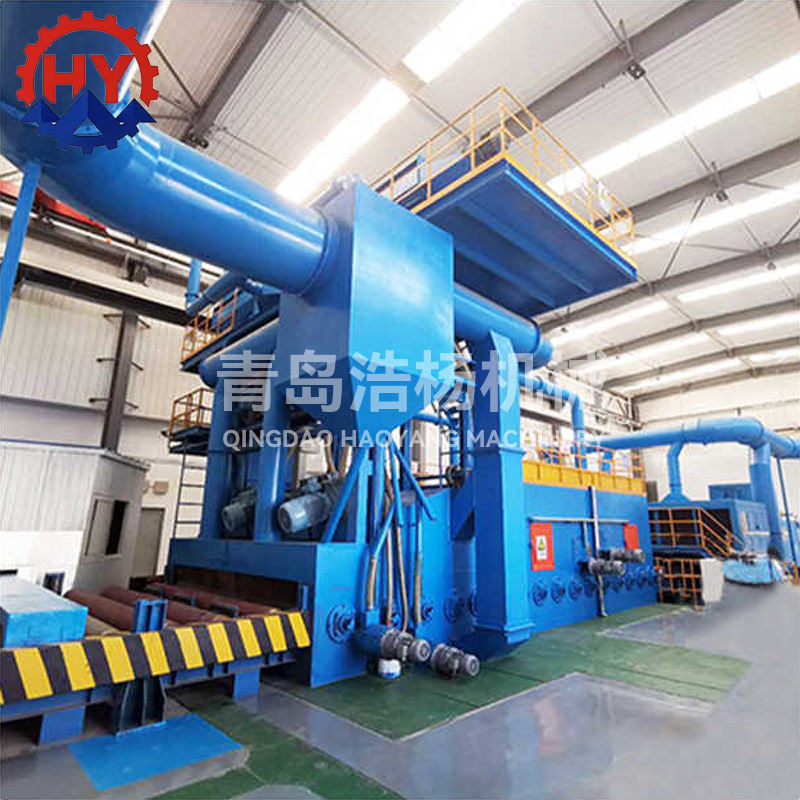

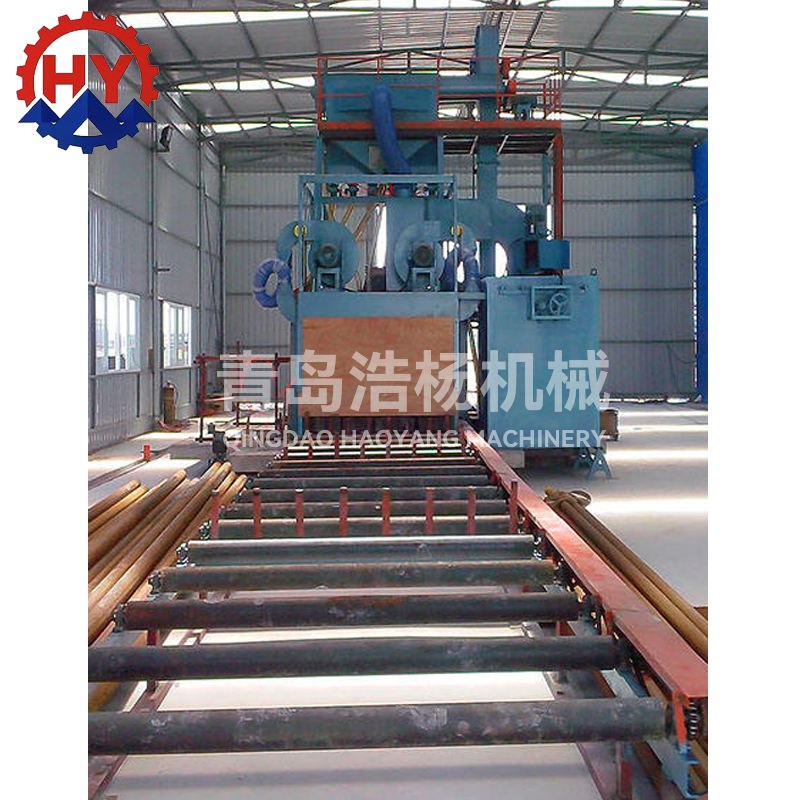

Shot blasting and painting line machine for industrial workpiece surface cleaning

PW25 Steel Profiles shot blasting machines are used to remove scale and rust from metal profiles and sheet metal components. It
applies to surface rusting and painting art of shipping , car , motorcycle , bridge , machinery,etc.By combining a roller conveyor
with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be
interlinked.
This ensures a flexible manufacturing process and high material output.

Professional customizable shot blasting machine manufacturer

Technical Parameter

item	value
power(w)	22kw
weight (kg)	15000
use	shot blasting
cleaning process	steel shot
warranty	2 years
place of origin	China
The effective cleaning width(mm)	800-4000
brand name	HaoYang
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
cleaning type	Clean-In-Place (CIP)
material	Metal / Coil
dimension(lwh)	According to workpiece size
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Blast wheel	4~20 sets
Color	Customers Requirement
Function	shot blasting
Blast chamber	Mn 65 Steel
workpiece size	800*10000mm
Cleaning speed	0.5-2.5 m/min
Model	PW25

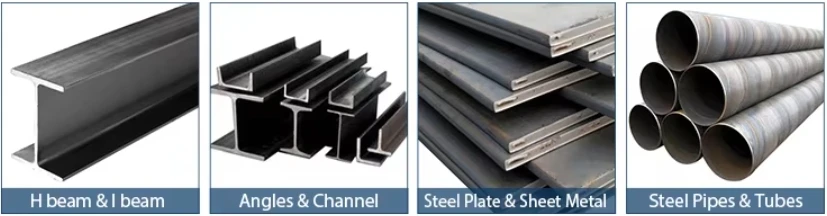

Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product Application

Product Features

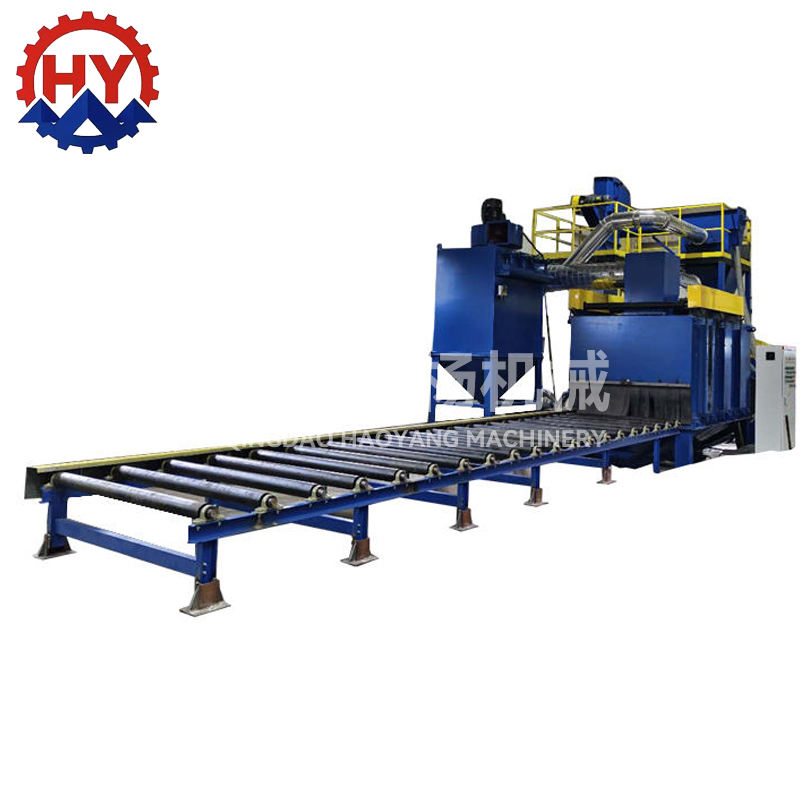

Roller Conveyor Systems

Composition: Feeding rollers, middle rollers, out-feeding rollers.
Loading capacity: 2 tons per meter.
Rollers Distance: 1 m.
Rollers Speed: 0.5-4 m per min.
Drive: Variable speed reducer.

Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.

Blasting Chamber

Blasting Chamber
Composition: Main blasting chamber, 2 auxiliary blasting chambers.
Auxiliary Blasting Chamber:Four layers rubber curtains
Main Blasting Chamber: blasting wheels are mounted on chamber in different angles
Divided & Modular Chambers: Designed accordingly

In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, easy tear open outfit
replacement.

Abrasive Recycling System

Longitude Screw: collect abrasive at the bottom.
Horizontal Screw: Delivery abrasive from longitude screw to bucket elevator.
Bucket Elevator:Lift abrasive to separator.
Separator:Separate & get qualified abrasive

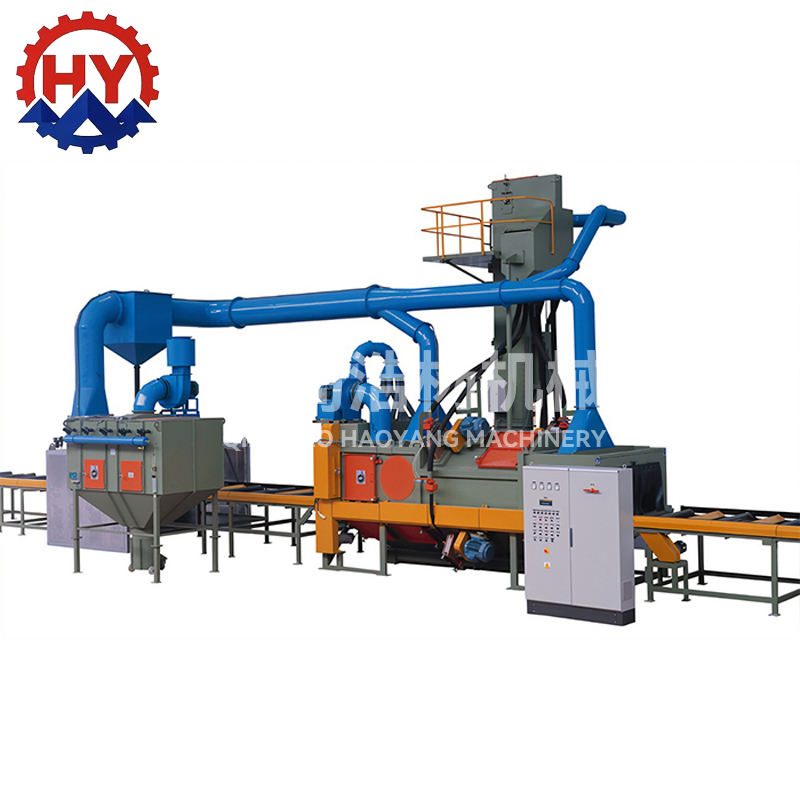

Dust Collection System

Filtration Rate: 99.9%, dustless Cyclone Dust Collector: first sate dust collection. Dust Collector: Cartridge or bag type Fan
Extractor:Extract dusts from piping to dust collector.

Ventilation Piping:Collect dusts from shot blasting chambers &separators.
High dust removal effect low pollution
The dust removal system consists of ducting system and filter cartridge dust collector. The emission standard can be lower 80 g/m3
. The fan power is 30 kw, ventilation quantity is 26000 m3/h.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .
