Product Description

Technical Parameter

Product Description

characteristic

1. Stable cooling effect and high adaptability to harsh environments (high air humidity, high ambient temperature) 2.If an
atomization humidification system is used, the minimum amount of cooling air required per unit weight of hot sand is required
3.Compared with fixed boiling coolers, it is less likely to block the mesh when the sand particles are uneven and the humidity is
high Mechanical actuation is simple, with almost no vulnerable parts and minimal maintenance requirements

Composition Structure and Working Principle

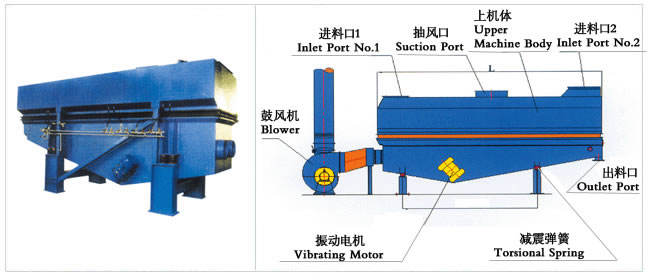

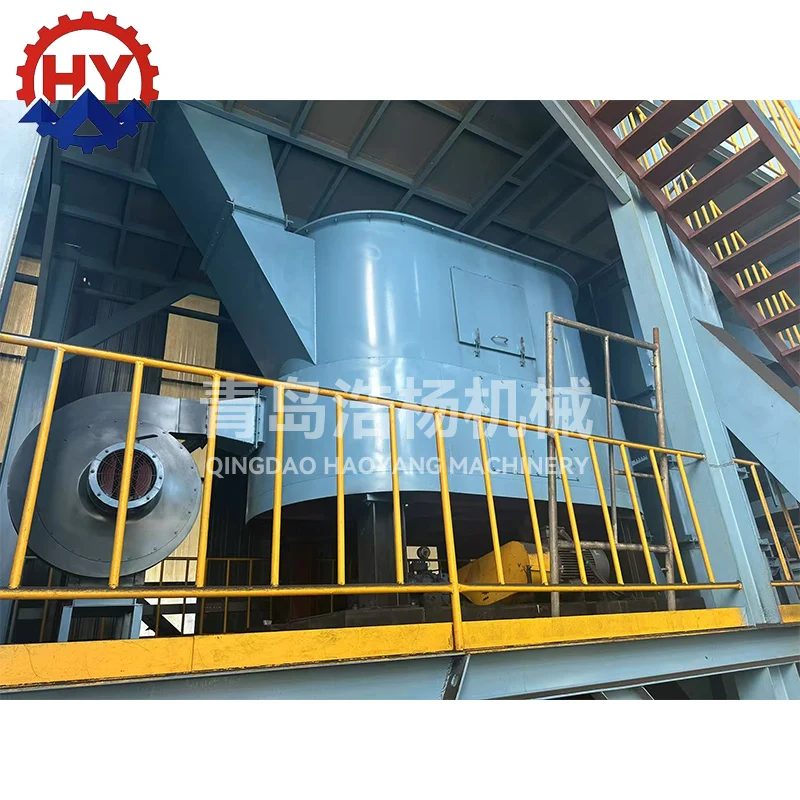

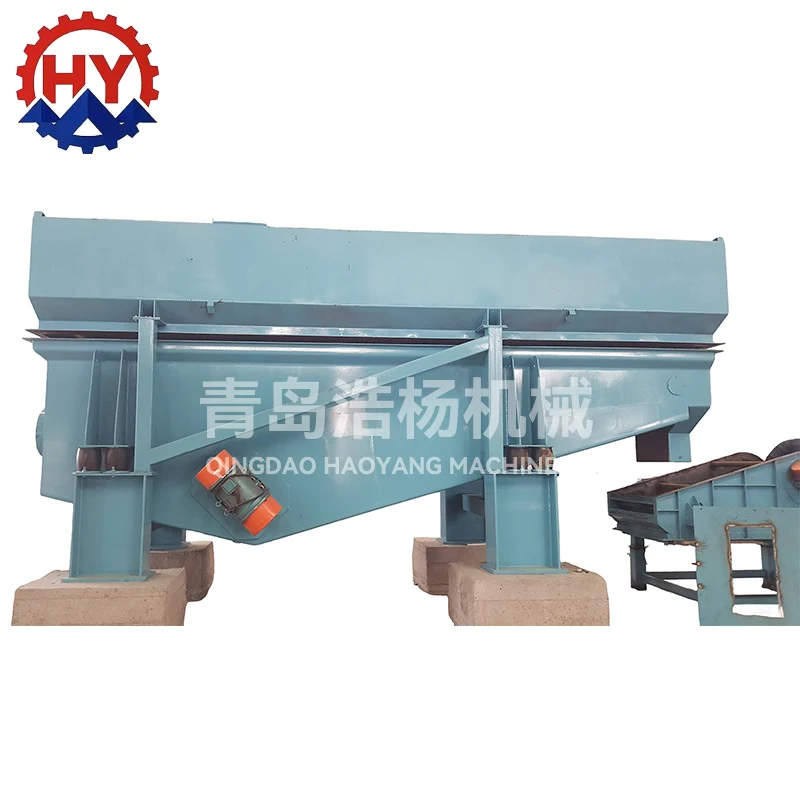

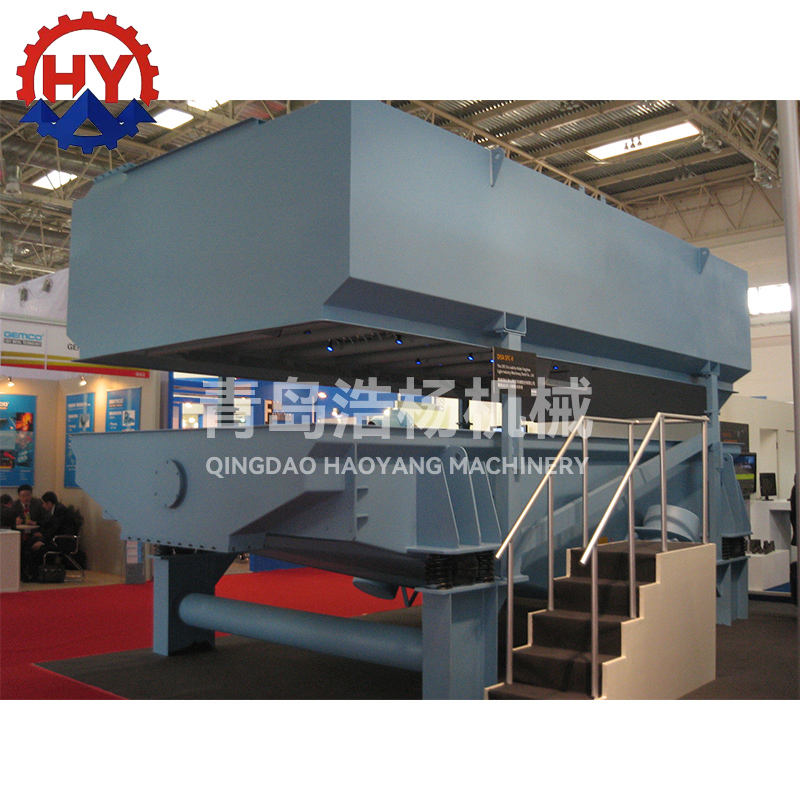

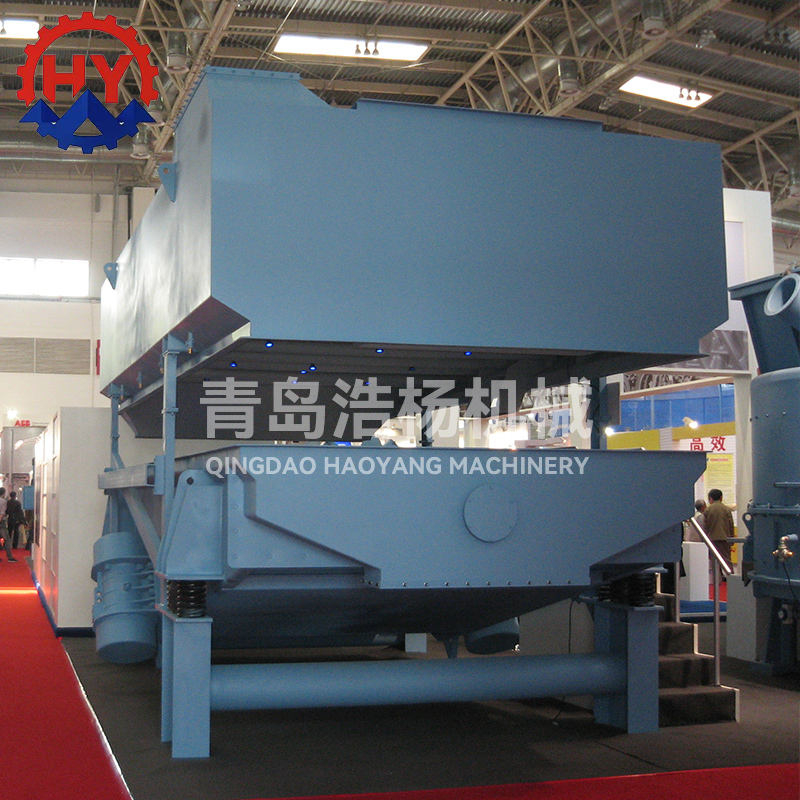

The SL series vibrating fluidized bed cooler is mainly composed of

1. Vibration boiling cooling bed

2. Blowing system

3. Dust hood

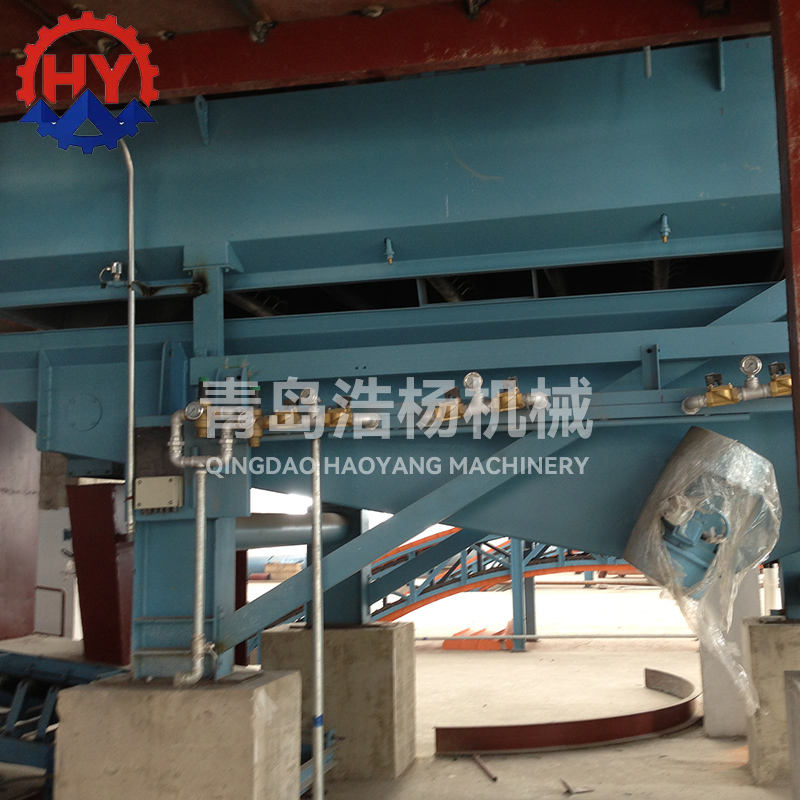

4. Water humidification system

5. Electronic Control System

6. Legs, pillars, shock-absorbing springs

7. Control device After
passing through the screening section from above, the sand is mixed with water and then enters the boiling bed through the feeding port. Firstly, the sand is blown into the boiling bed by high wind pressure and thrown forward in a boiling state. Then, it is bounced back and enters the rear wind box one by one, and then blown back and forth. This process repeats itself The medium sand body is continuously thrown up and down, forming boiling waves and moving forward while dispersing the sand over a large area and removing heat (carried away by the contained moisture), as well as its main function of dust removal.

Adopting positive and negative pressure air cooling method for cooling (air cooling+water cooling can also be used), reasonable
anti blocking devices are installed inside the fluidized bed for easy cleaning; The prototype of this institution adopts positive
and negative pressure dual cooling dust removal. After crushing the sand, the residual temperature on the automatic line is much
higher than the temperature allowed by manual molding (room temperature ± 10 ℃), especially in situations where the workpiece is
large, the pouring cycle time is short, or in summer.

Due to limitations such as the sand box, site, and pouring cycle, the poured sand mold cannot be further naturally cooled, and the
sand dropping temperature can reach 200~400 ℃. After vibration sand dropping and screening dust removal, the residual temperature in the later stage can still reach 90~150 ℃; Therefore, necessary sand temperature adjustment has become an important issue in automatic molding lines.

Detailed description of the operating

principle

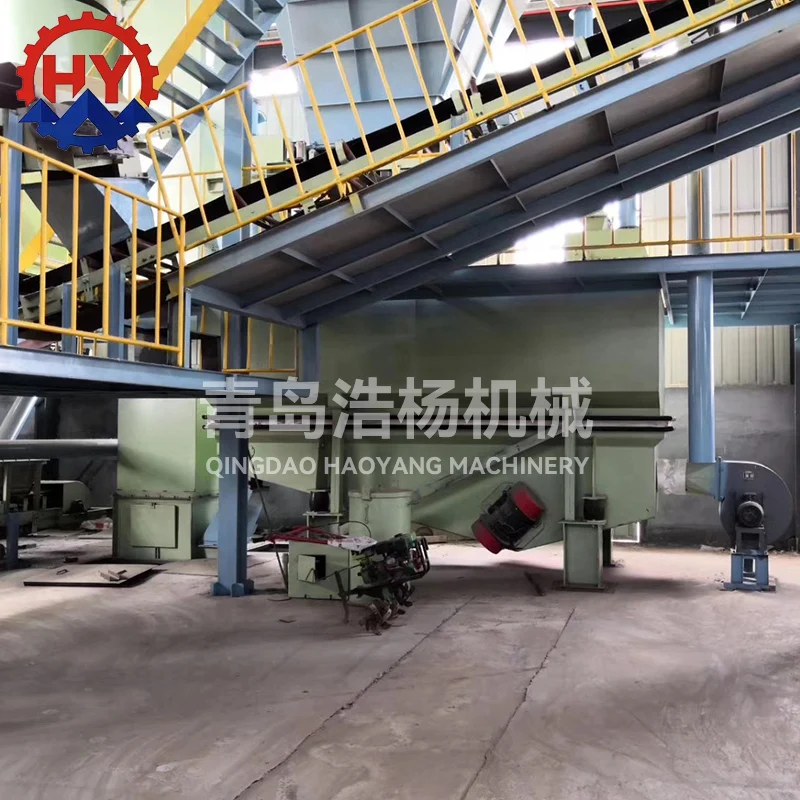

The main components of a vibrating fluidized bed are a tank, a vibrating motor, a breathable screen, and a blower. The vibration
motor causes the entire tank to vibrate, and a mesh plate component is placed above the tank. When the hot sand enters the boiling
bed mesh plate, the sand body moves towards the discharge end in the direction of the vibration force. Below the mesh board is an
air chamber, where air is driven by a blower and enters through ducts and flexible connecting pipes. It passes through the mesh
board and sand body at high pressure, taking away moisture and heat. This humid and dusty gas is then discharged through the dust
hood above. The screen adopts a special specification mesh cover interwoven with metal, which requires ventilation and cannot leak sand.

Electric Control System

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for

producing PET plastic containers and bottles in all shapes.

Specification

item	value
voltage	According to the equipment to determine
power(w)	According to the equipment to determine
warranty	1 Year
weight (kg)	9000
place of origin	China
	Shandong
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
brand name	Haoyang
dimension(lwh)	According to the equipment to determine
key selling points	Easy to Operate, Famous brand PLC, Remote Control, Accurate temperature control, Competitive Price, Long Service Life

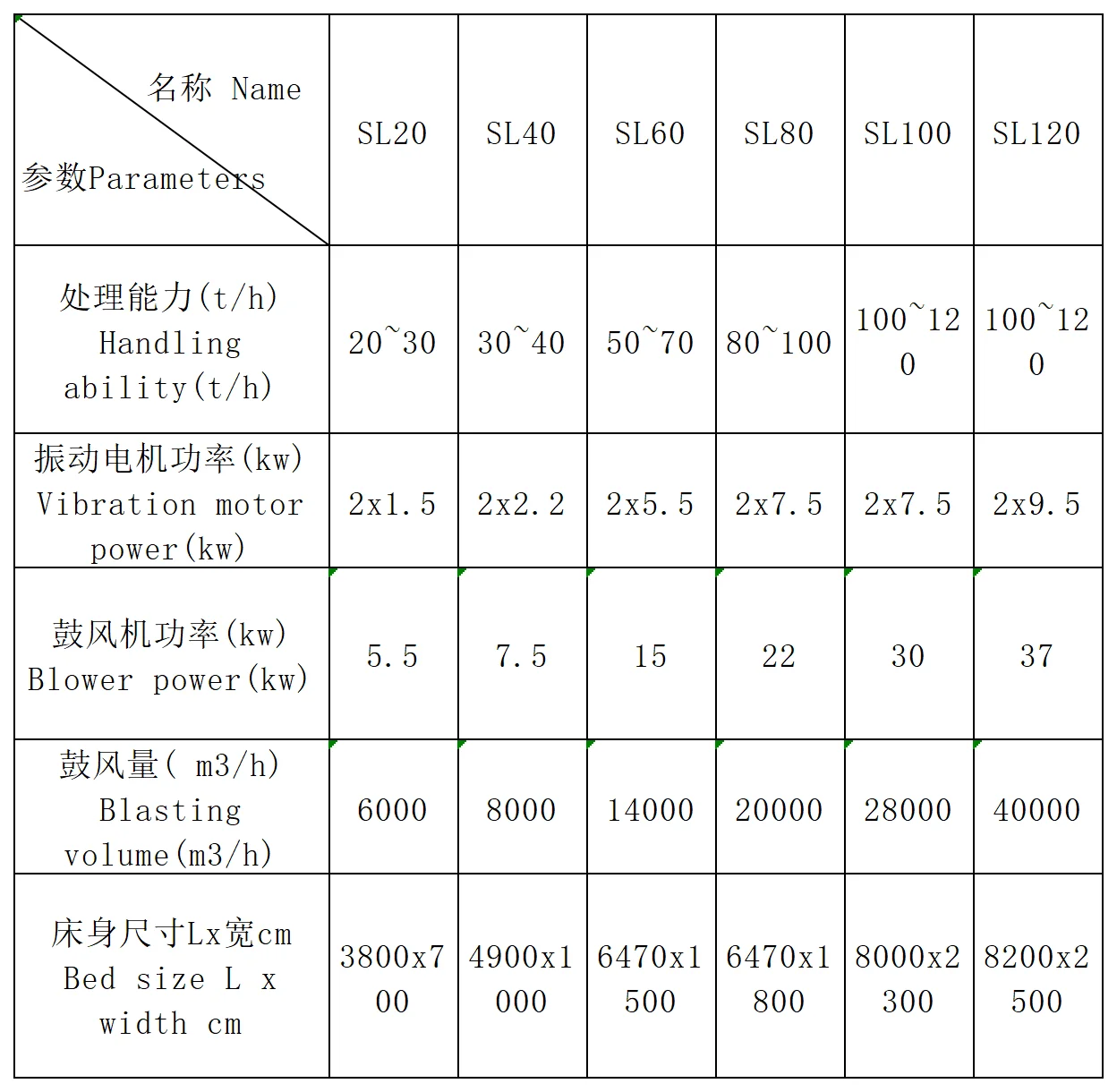

Processing capacity (T/h)	20~30
Vibration motor power (Kw)	2*2.2
Blower power (Kw)	5.5
Blast rate (h3/h)	6000
Bed depth dimension (L * w)	3800*700

casting
