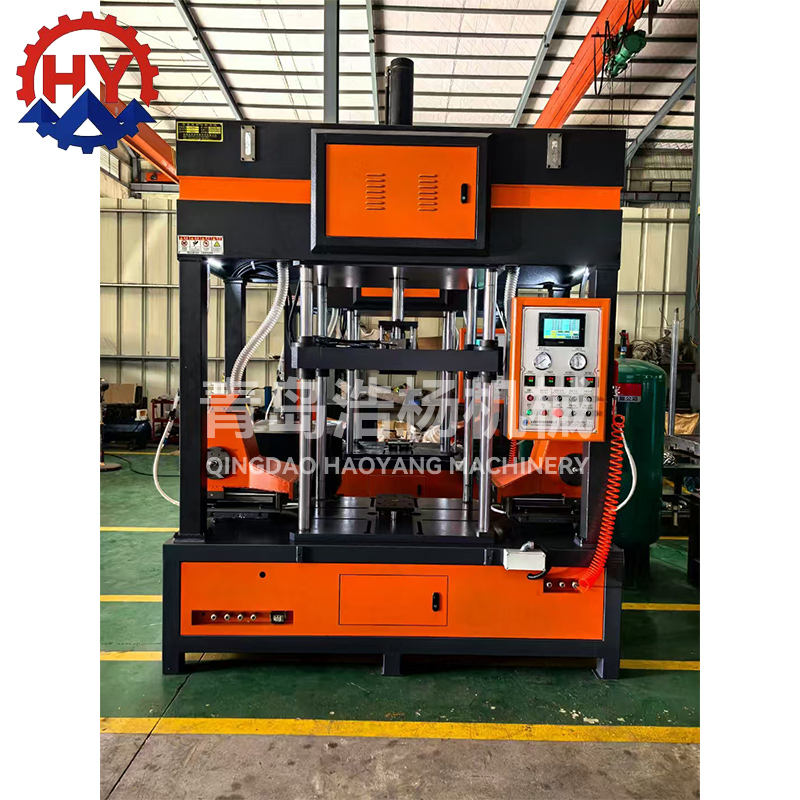

Automatic High-Efficiency Hot Box Horizontal Core Shooting Machine for Foundry Metal Casting Sand Core Making

Automatic High-Efficiency Hot Box Horizontal Core Shooting Machine for Foundry Metal Casting Sand Core Making

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

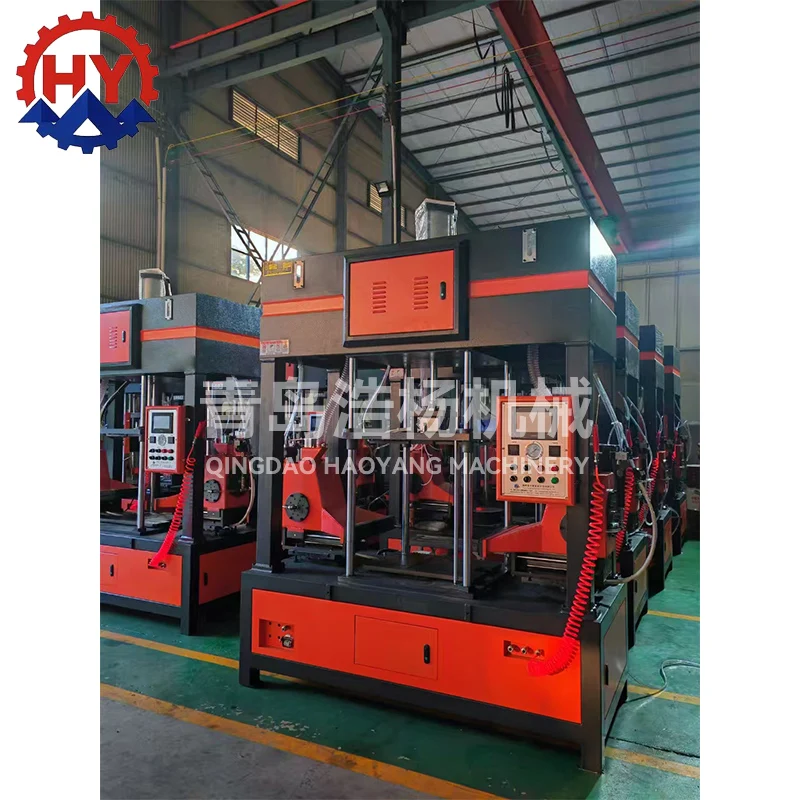

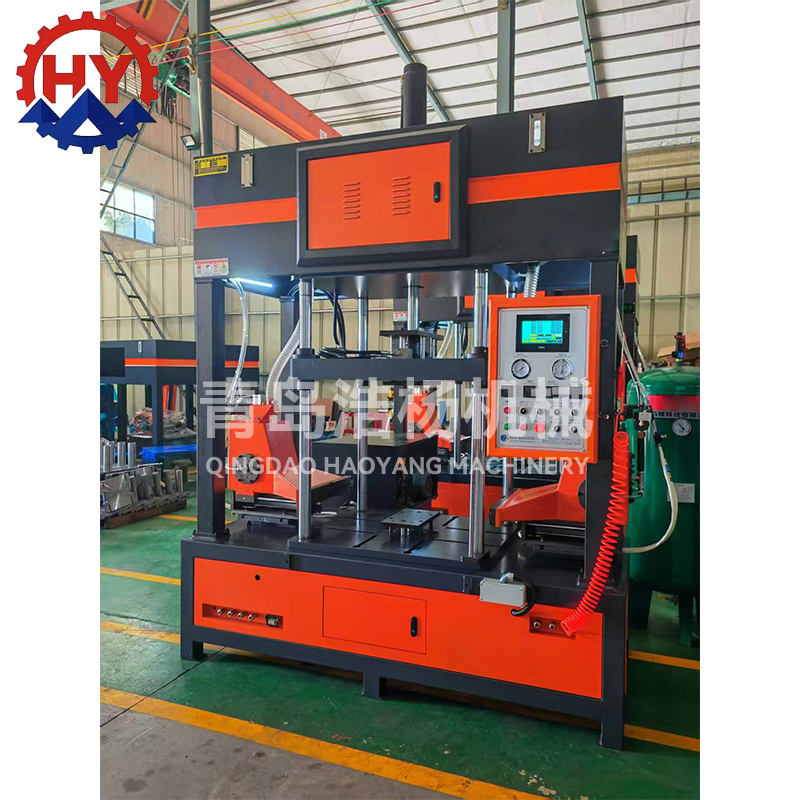

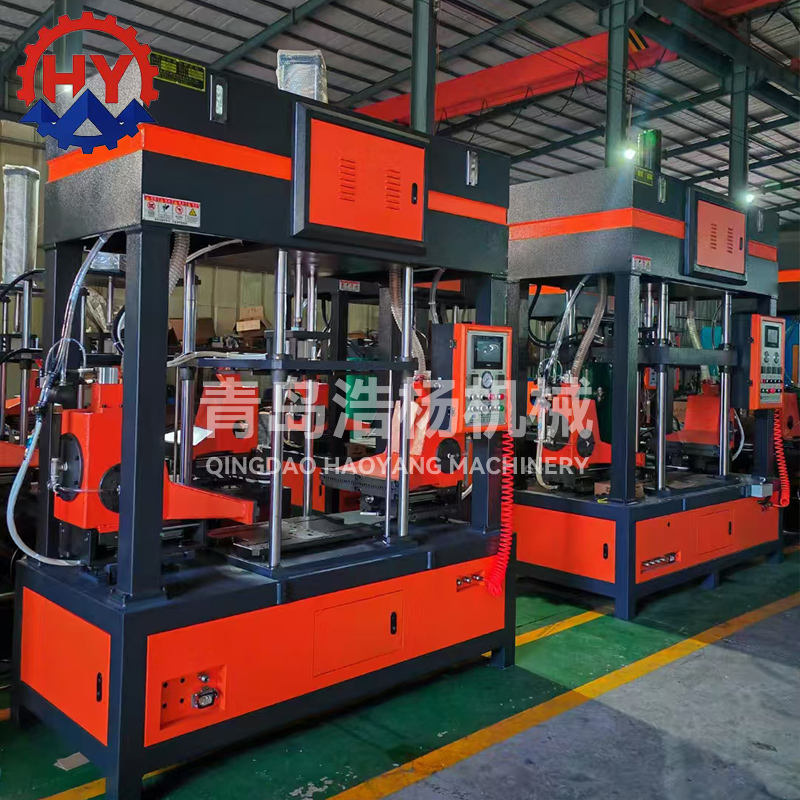

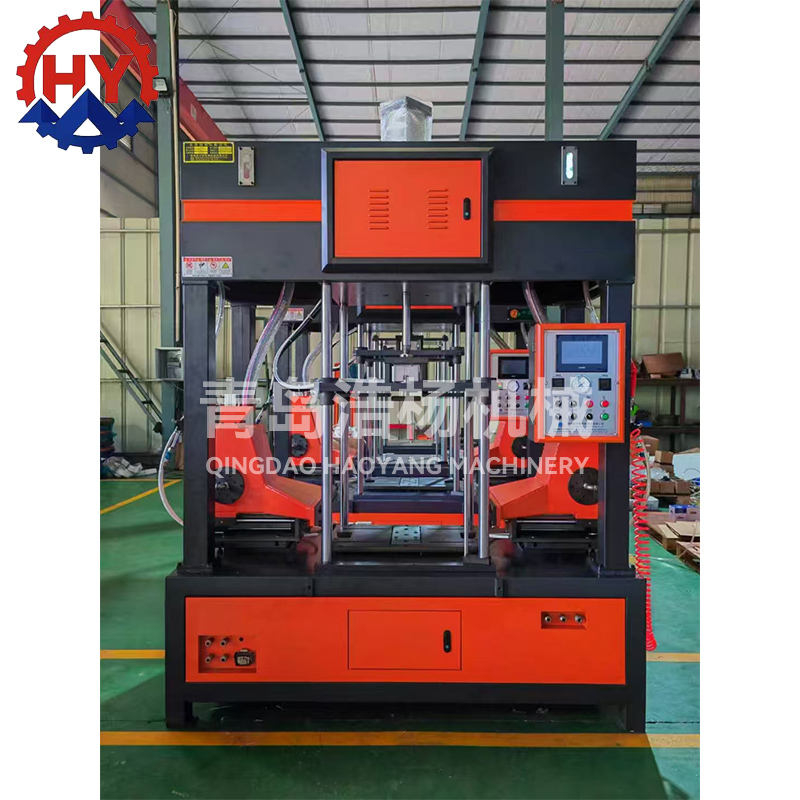

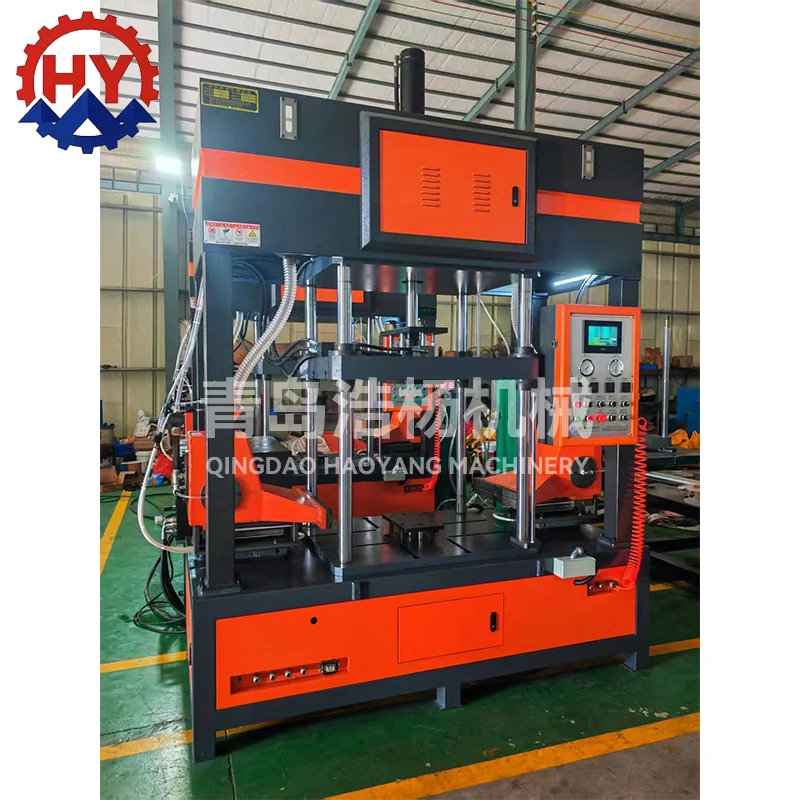

Coated sand core shooting machine is a kind of machine which uses coated sand as raw material and hot core box principle to make coated sand mold. The raw material of film sand core for core shooting machine is phenolic resin sand. It has the characteristics of high production efficiency, accurate size, smooth appearance, and can produce complex inner cavity castings.

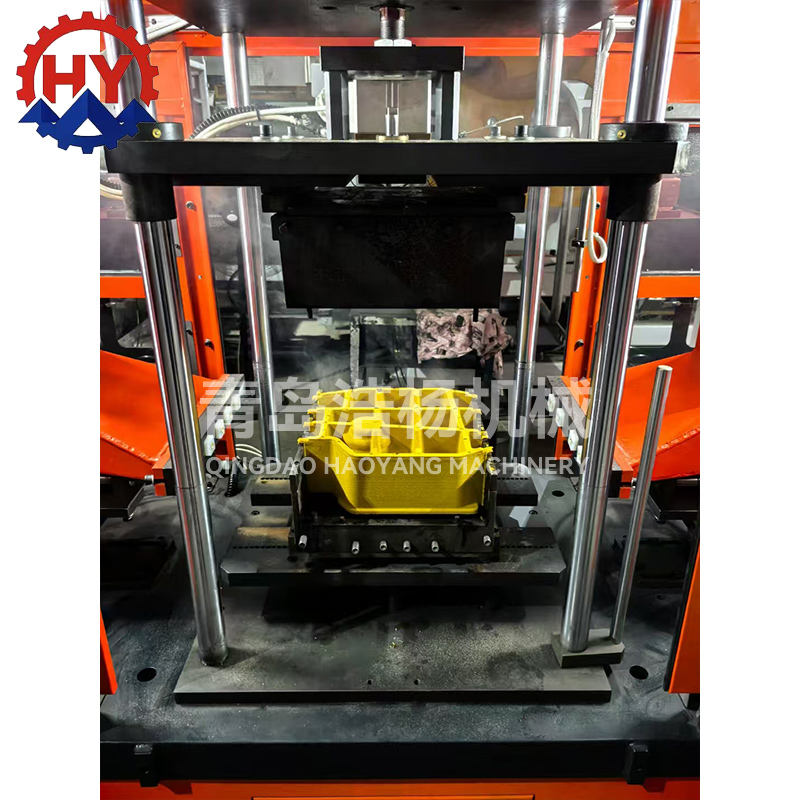

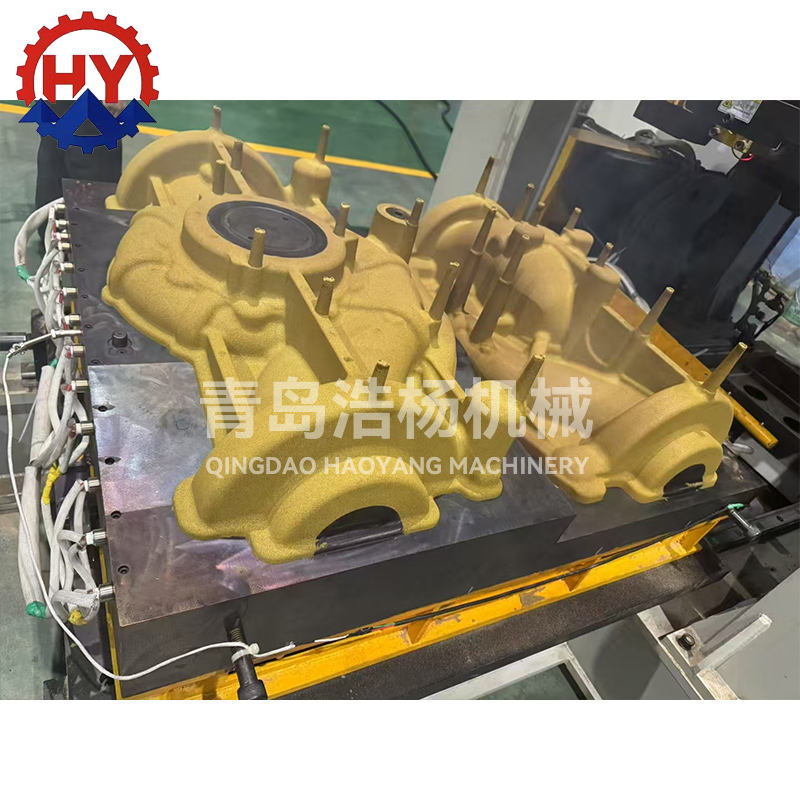

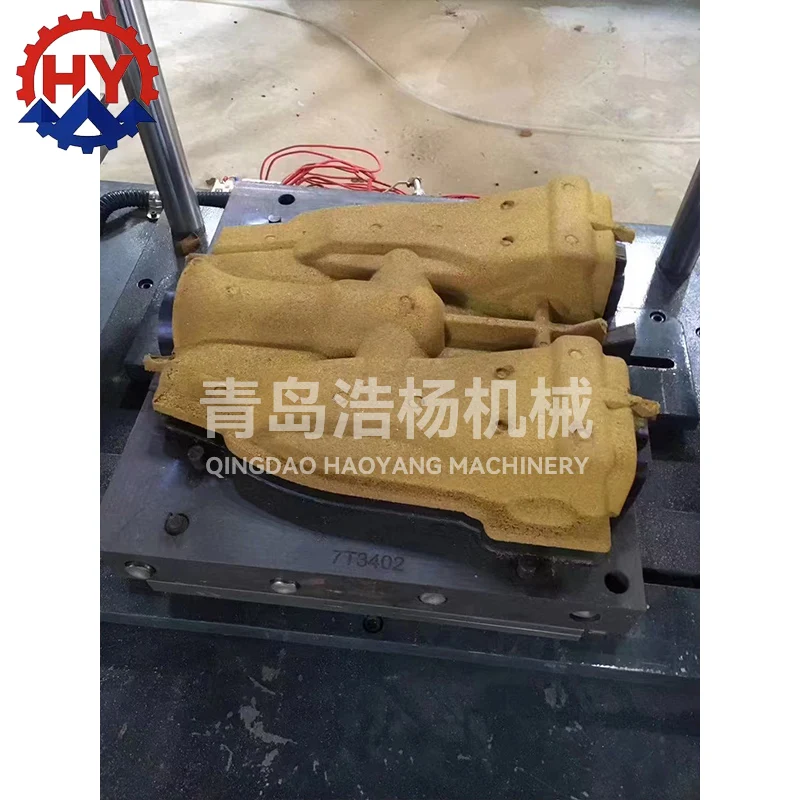

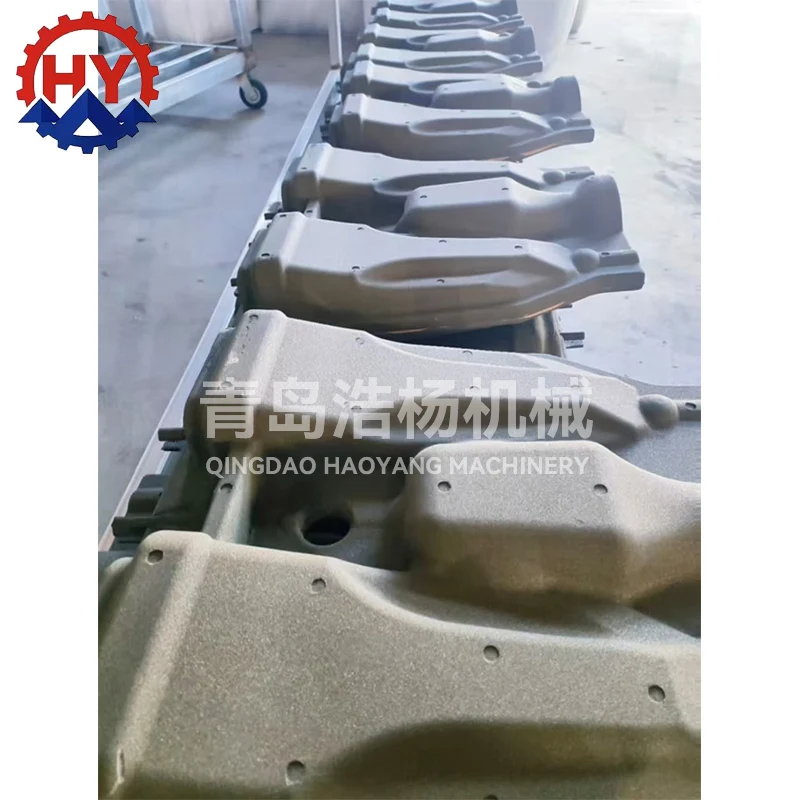

The resin sand shell core method is a meticulous core making process. It fills the core sand containing phenolic resin (referred to as shell core sand) into the heated metal core box for a certain time (5~15s), The resin in the shell core sand near the wall of the core box is melted to bond the sand grains together, and a shell layer in a plastic state with a certain thickness is formed along the inner cavity wall of the core box. After pouring out the excess core sand, continue to heat for a certain time (30~90s), open the core box and push out the shell core, that is, the hollow thin shell sand core with a small wall thickness (only 5~12mm). It only takes 1~2min to make a sand core.

Product application

High production efficiency: The working process of the hot core box core shooting machine is completed at the same time as the sand compaction, and the hot core box is immediately hardened. The production cycle of sand cores for casting is only ten to tens of seconds.

Purpose

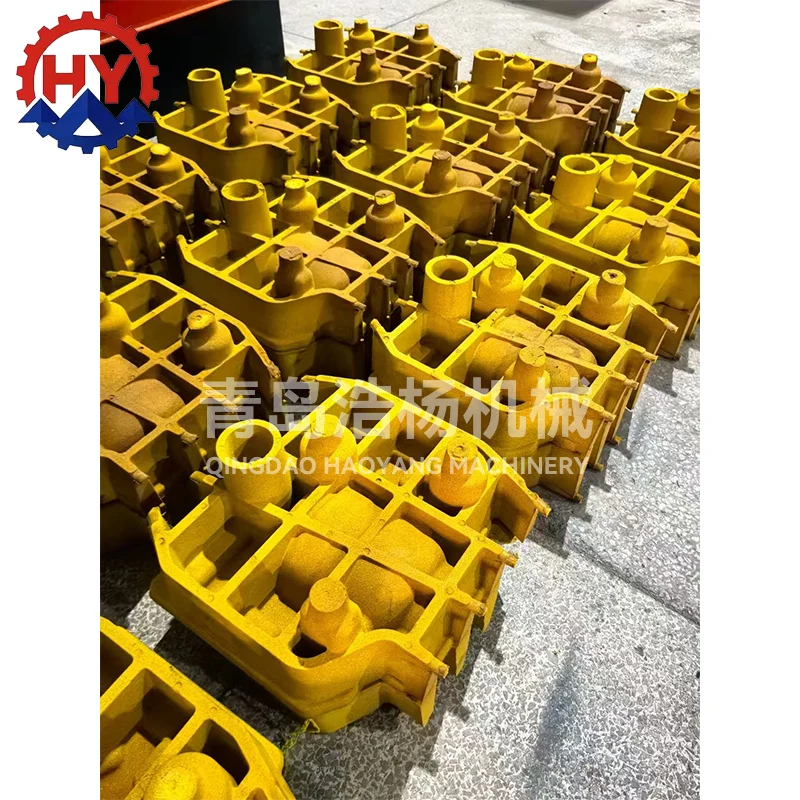

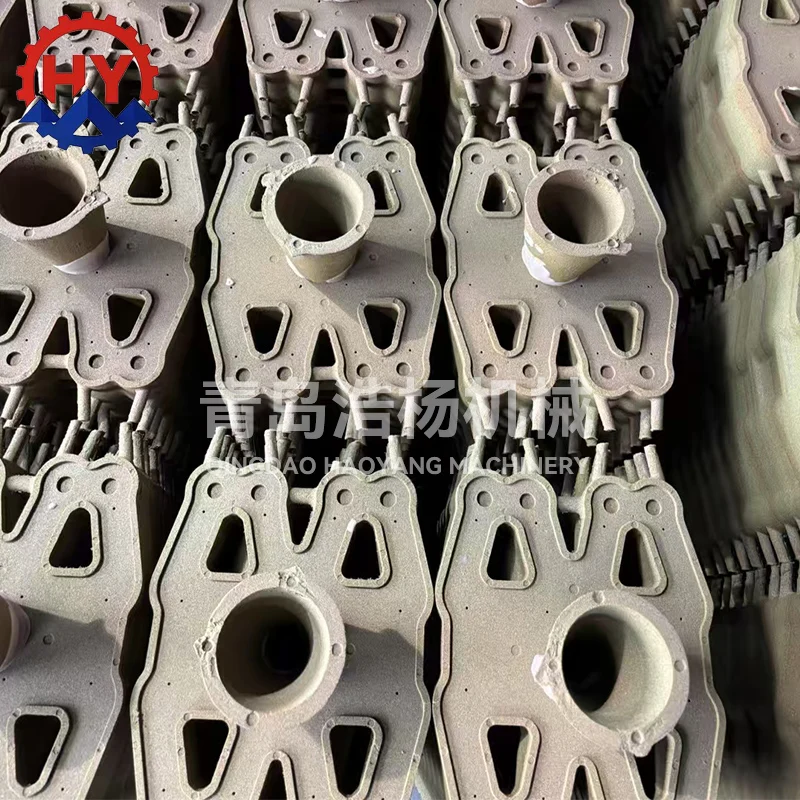

Good quality of sand core: can shoot any complex sand core, accurate size, smooth surface, reduce casting processing allowance.
Many auxiliary equipment and tools for core making can be omitted, such as core drying furnace, dryer, core bone, wax wire, etc.

Reduce labor intensity, flexible and convenient operation, the use of electric heating, temperature can be automatically controlled, the workplace is easy to keep clean, creating conditions for the mechanization and automation of the core process.

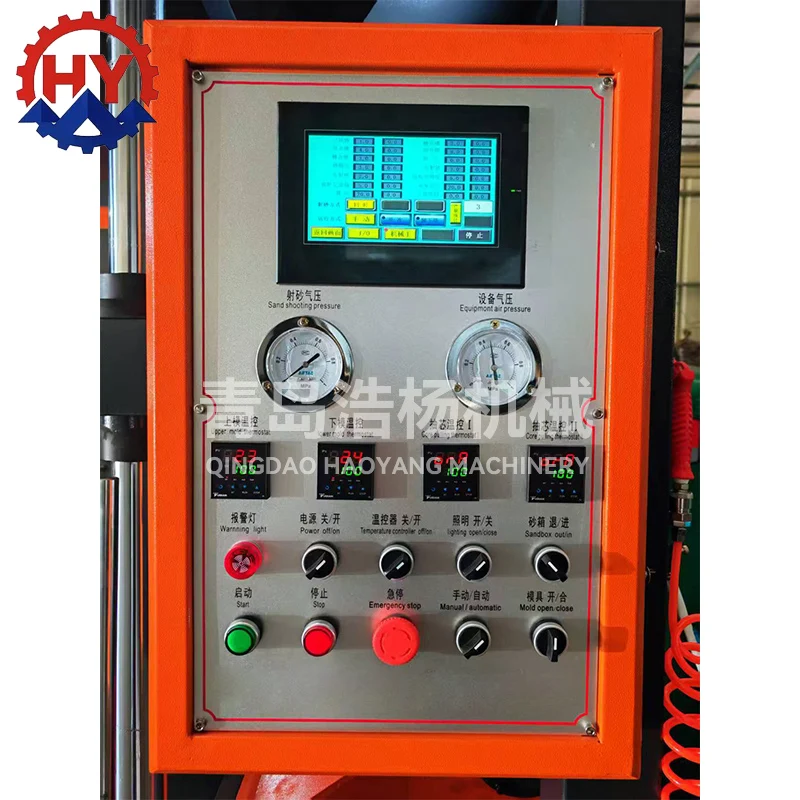

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Specification

item	value
voltage	According to the equipment to determine
power(w)	According to the equipment to determine
machine type	Efficient rotor sand mixer
warranty	1 Year
weight (kg)	3000
place of origin	China
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
brand name	Haoyang
dimension(lwh)	According to the equipment to determine
key selling points	Easy to Operate, Famous brand PLC, Remote Control, Accurate temperature control, Competitive Price, Long Service Life

Company Profile

00:07

01:00

Certificate

Packing & Delivery

PACKING: EXPORT PACKING:big parts on a wooden pallet and wrapping by film, single parts put together on wooden pallet and wrappingby film, precise parts packing by wood. (Packing woods are not recycled.) SHIPMENT MARK(S): On the surface of each package, a corresponding shipping mark in the English language shall be stenciled legiblyin fadeless or shipping labels tie on non-packing packages in the English language

1. Safe Guardianship, Worry-Free Journey

We understand deeply that every item carries your

expectations and trust. Therefore, we employ advanced packaging technologies and materials to ensure that your goods remain undamaged throughout the shipping process. From packing to delivery, every step is meticulously designed and strictly monitored, allowing you to enjoy a hassle-free shopping experience.

4. Hassle-Free, Enjoy Express Delivery

We know how valuable your time is. That's why we offer efficient packaging and transportation services, freeing you from the worries of packaging and shipping. Our logistics team will do their utmost to ensure your goods are delivered to the specified location in the shortest time possible.

2. Professional Packaging, Quality Assurance

Our packaging team possesses extensive experience and expertise, enabling us to provide personalized packaging solutions for various types of goods. Whether it's fragile items, electronics, or heavy cargo, we can ensure they arrive safely and securely at their destination.

5. Attentive Service, Just for the Better You

We always prioritize customer experience. From selecting packaging materials to arranging transportation methods, we strive to do our best. Our customer service team is always on standby to answer any questions and provide assistance. We want you to enjoy the fun of shopping while also feeling our care and attention.

3. One-Click Order, Effortless Delivery

Our packaging and transportation services make shopping more convenient. With just one click, we can provide professional packaging and rapid delivery for your goods. No matter where you are, we can safely and punctually deliver your items to your doorstep.

6.Professional Customization, Meeting Your Unique Needs

We understand that every customer's needs are unique. That's why we offer personalized packaging and

transportation services, tailoring exclusive packaging and transportation solutions to your specific requirements. Whether it's size, weight, or special requests, we will do our utmost to meet your expectations.

FAQ

Q1: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you
thesuitable machine.
Q2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q3 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q4: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
