High Efficiency Automatic Vertical Green Sand Casting Machine Essential Quality Amphibole Metal Production Line

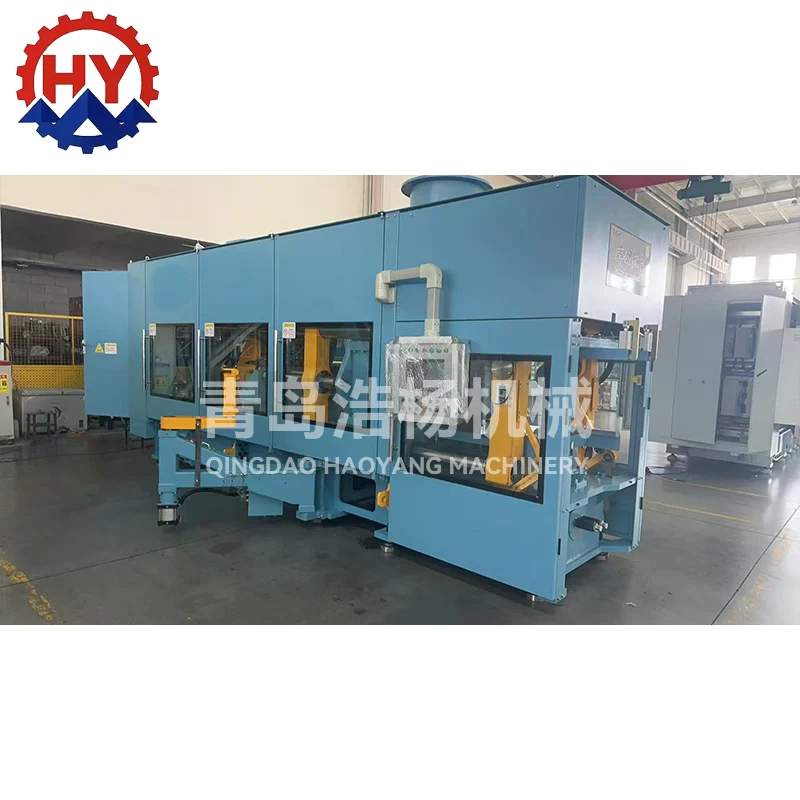

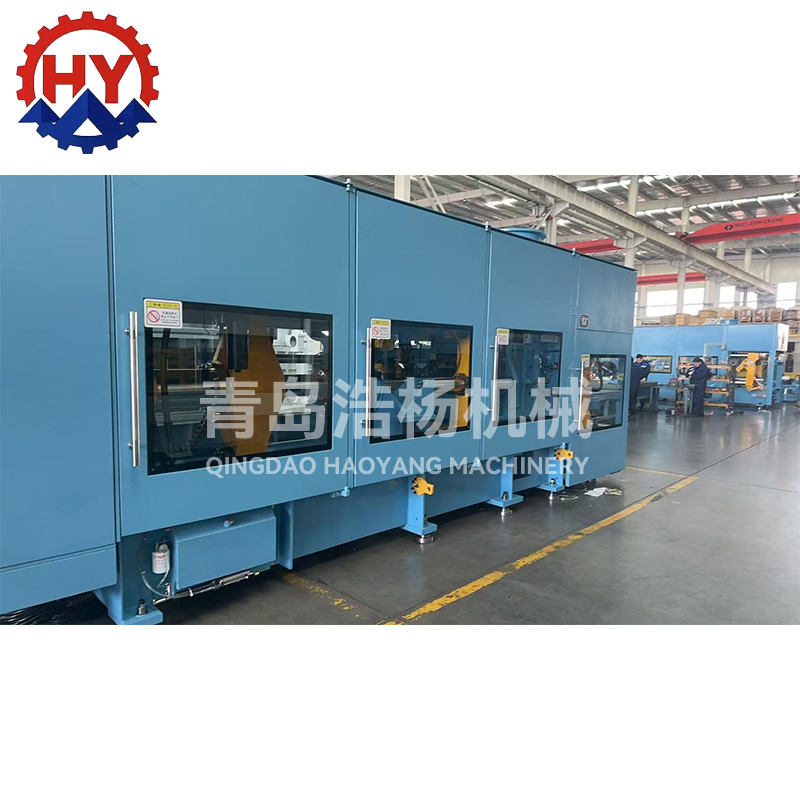

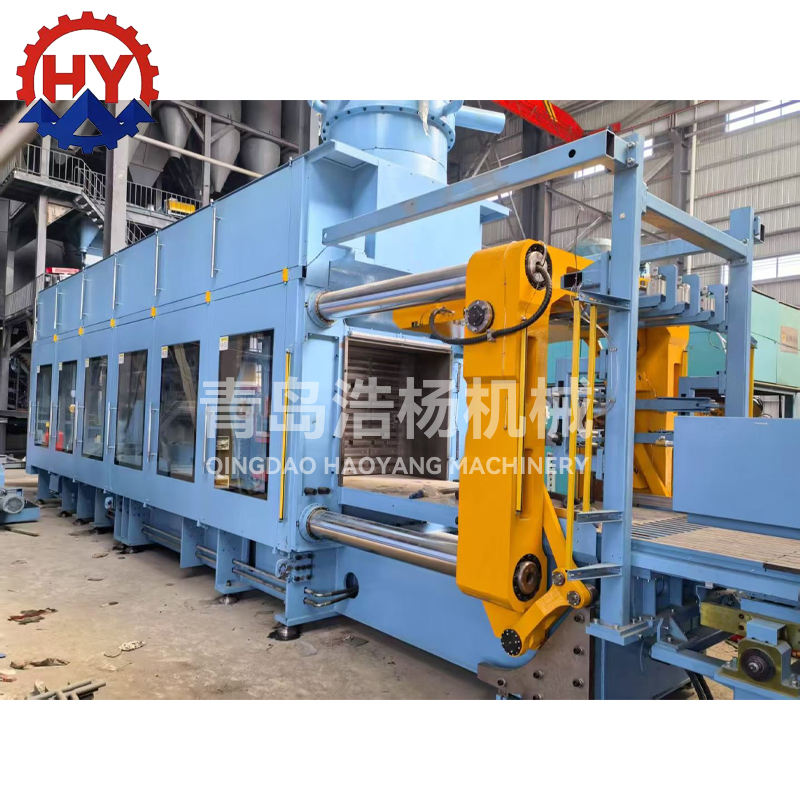

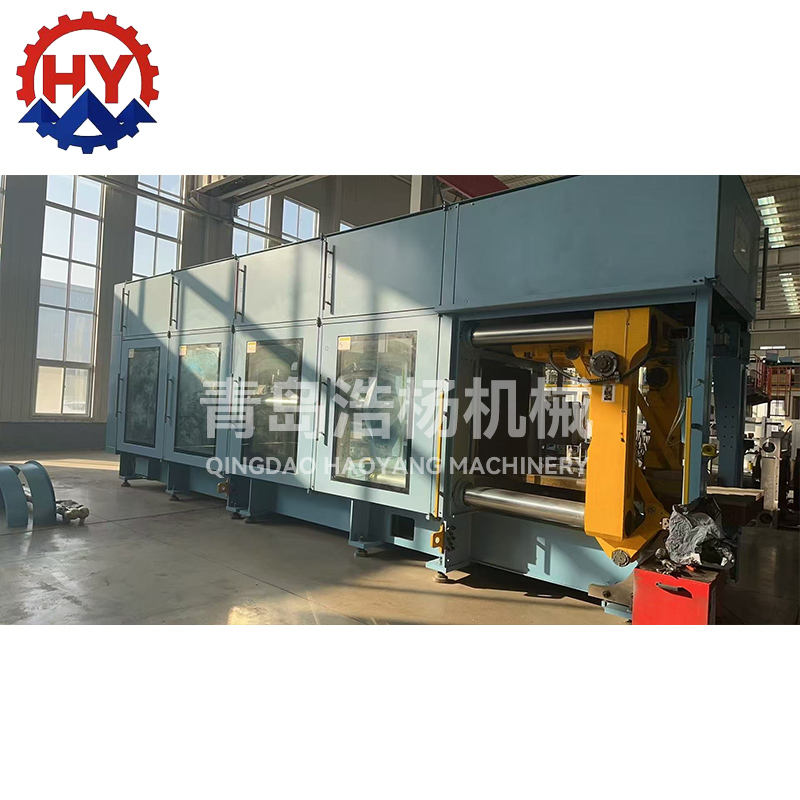

The vertical parting flaskless shooting and pressing automatic molding line is an advanced casting molding equipment, specially designed for efficiently and precisely manufacturing sand molds. It adopts the unique vertical parting flaskless shooting and pressing process and can continuously produce high-quality sand molds in an automated process. It is widely used in various metal casting industries, such as the automotive, machinery, and hardware industries, effectively improving the casting production efficiency and the quality of castings. With the continuous development and transformation of industrial technology, the vertical parting flaskless shooting and pressing automatic molding line will become more intelligent, automated, and digitalized. In the future, there will be more customized casting products, and more high-quality, high-efficiency, and high-reliability casting molds

Vertical Parting Process: It realizes the vertical parting of sand molds, making the dimensions of castings more precise, the parting surfaces clearer, reducing defects such as flash and burrs, and improving the yield and surface quality of castings.

1. Sand Filling Device: It adopts an efficient sand filling system that can evenly add molding sand into the shooting sand barrel to ensure sufficient supply of molding sand during the shooting process. It is also equipped with a sand quantity detection device that can monitor the sand quantity in real time and realize automatic sand filling control.

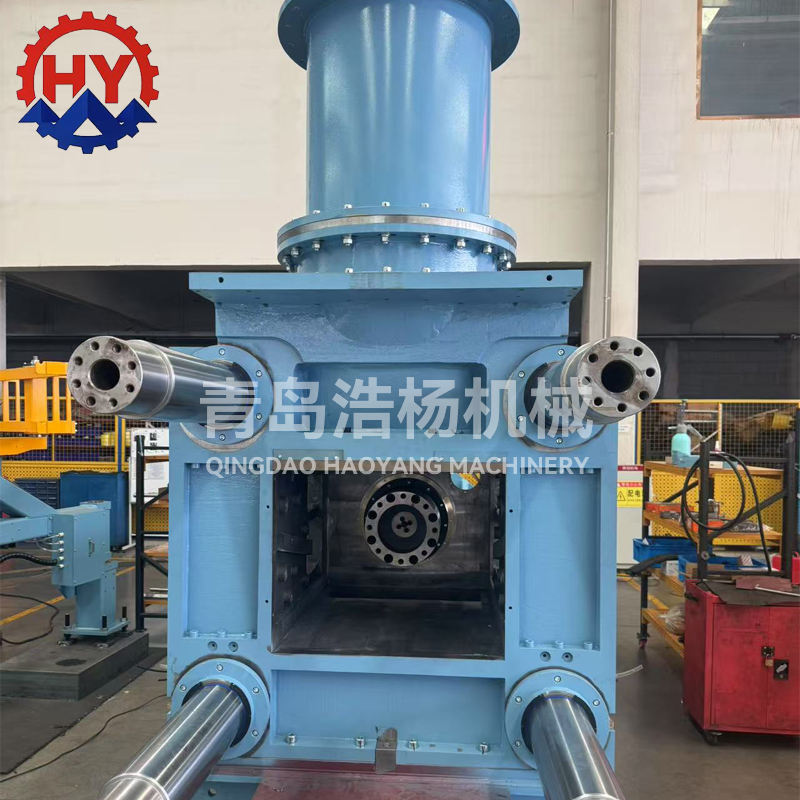

2. Shooting Sand Mechanism: It consists of a shooting sand barrel, a shooting sand valve, and a shooting sand head. The shooting sand valve can be opened and closed quickly, allowing high-pressure gas to instantaneously inject the molding sand into the mold cavity. The structural design of the shooting sand head ensures that the molding sand can evenly fill all parts of the mold.
3. Compacting Mechanism: The compacting plate is driven by a hydraulic or pneumatic system to compact the sand mold after shooting sand, and the compacting pressure can be adjusted according to the process requirements to ensure that the sand mold reaches the required compactness.

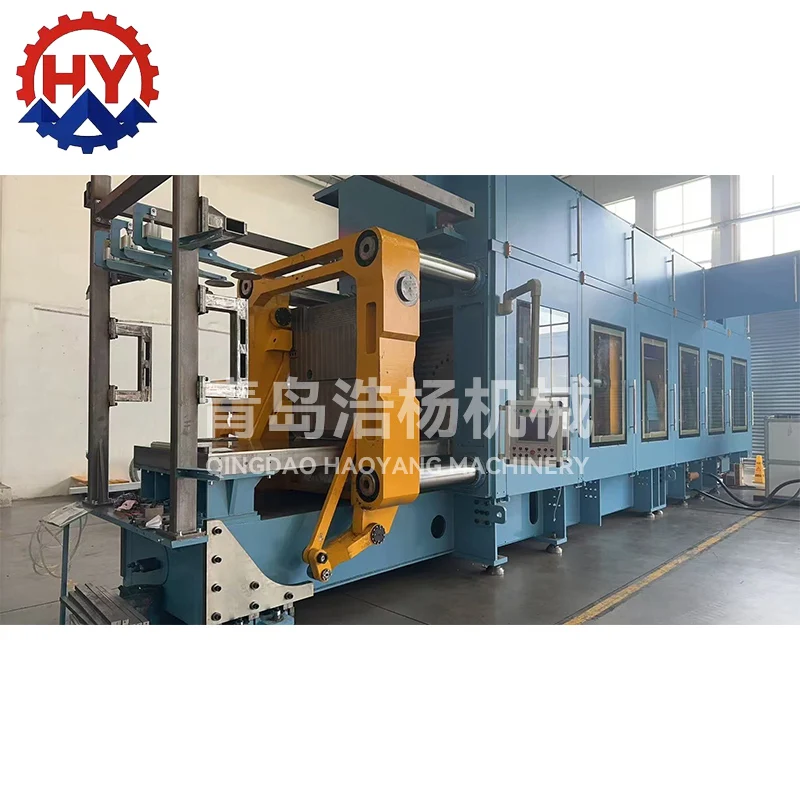

4. Pattern Drawing Mechanism: By using precise mechanical transmission or hydraulic transmission devices, the compacted sand mold is smoothly drawn out from the mold, and the damage to the sand mold during the pattern drawing process is minimal, ensuring the integrity and accuracy of the sand mold.
5. Mold Closing Mechanism: It realizes the accurate closing of the upper and lower sand molds with high closing accuracy, ensuring the uniformity of the wall thickness of the castings. The mold closing mechanism has positioning and clamping functions to prevent the misalignment of the sand molds in subsequent processes such as pouring.
6. Mold System: Molds of various materials and structures can be customized according to the casting requirements of customers. The molds are made of high-quality materials and have good wear resistance, heat resistance, and corrosion resistance, ensuring the service life and molding quality of the molds.
7. Conveying System: It consists of conveyor belts, push plates, etc., and automatically conveys the molded sand molds to the next process, such as pouring and cooling. The conveying process is stable and reliable and can be seamlessly connected with other casting equipment.
8. Control System: It adopts a PLC control system and is equipped with a human-machine interface (HMI) operation panel, which can conveniently perform operations such as equipment parameter setting, operation monitoring, and fault diagnosis. The control system has multiple control modes, such as manual, semi-automatic, and fully automatic, to meet different production needs and debugging requirements.

It is applicable to the casting production of various ferrous and non-ferrous metals and performs excellently in the following fields:
1. Automotive Manufacturing: It is used to produce sand molds for parts such as engine blocks, cylinder heads, crankshafts, and transmission housings, meeting the requirements of the automotive industry for high-precision, high-strength, and large-batch production of castings.
2. Mechanical Engineering: It is used to manufacture sand molds for various mechanical parts, such as pump bodies, valve bodies, gearboxes, and machine tool beds, providing high-quality basic castings for the mechanical industry.
3. Hardware Tools: It is used to cast blanks of various hardware tools, such as wrenches, pliers, and hammers, improving the production efficiency and quality of hardware tools.
4. Pipe Fitting Casting: It is used to produce sand molds for pipe fittings of various materials and specifications, such as cast iron pipes, cast steel pipes, and cast aluminum pipes, meeting the requirements of industries such as construction, chemical engineering, and water supply and drainage for pipe fittings.
