High-Efficiency Industrial-Grade Metal Casting Equipment Film Sand Casting Blending Machinery Pump Motor Engine for Sand Mixing

High-Efficiency Industrial-Grade Metal Casting Equipment Film Sand Casting Blending Machinery Pump Motor Engine for Sand Mixing

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Coated Sand Equipment

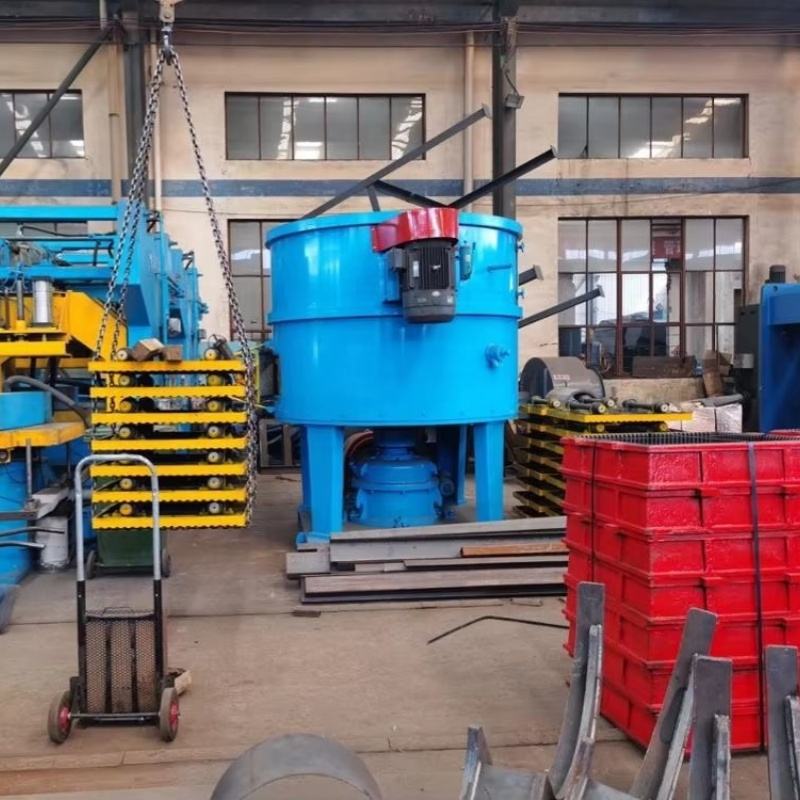

The equipment is mainly used for mixing coated sand in thermalproduction.The working mechanism adopts the relative movement oiscraper and rotor, so that the materials in the machine disk can bestirred evenly in a very short time, so that the sand is coated with filmthe quality of sand mixing is good,the efficiency is high, and the sandblock has good fast crushing ability.

FEATURES AT A GLANCE

Transmission system includes main motor, rotor motor, reducer and transmitte narrow v-belt. As shown in figure 2. The main motor
and the rotor motor installed on the bracket, both by the level of transmitte narrow v-belt couplet of (5 V - 10604) and reducer pulley connection, again through the level of cylindrical gear reduction. The main motor driven hollow shaft by hollow shaft driven in scraper. Rotor motor drives the rotor shaft, drive the rotor and scraper relative motion. Reducer is fixed below the sand mixer chassis, the cabinet is equipped with a magnetic oil plug is used to collect scrap iron in lubricating oil, in order to reduce the gear and bearing wear, prolong its service life.

PRODUCT SPECIFICATIONS

item	value
machine type	continuous casting machine
warranty	1 Year
place of origin	China
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Bearing, Gearbox, Gear
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
key selling points	Easy to Operate, Competitive Price, Long Service Life, Low Noise Level, Low Maintenance Cost, Flexible Manufacturing, High Safety Level

Item	Data
Disc diameter	30 to 1000 mm
Productivity	1.6 t/h
Bottom scraper speed	71 r/min
The rotor speed	71 r/min
Main motor model	Y225S - 8
Power	18.5 kw
Rotor motor model	Y200L - 8

Technical Parameter

Detail technical data,pls confirm with supplier.

This machine is mainly used for thermal process in the production of coated sand mixing, work organization USES scraper and the rotor relative motion, make the material in the machine dish can mix in a very short time, make the sand coated, sand are of good quality and high efficiency, and the sand block has a good ability of fast break.

SALES AND SERVICE NETWORK

Product Application

The advantages of the conveying type vibrating shakeout machine

Because of the speed reducer is only part of the bearing in lubricating oil, the machine adopts forced lubrication measures. The lubrication system by drop tank and is located in the motor on the drop tank, small gear oil pump, oil cylinder, travel switch,and the distribution of the reducer on body composition. Drop tank and the reducer connection with connectors. When the lubrication oil in the motor start drop tank after filtered, driven by pump pressure, small oil cylinder piston, make the trip switch, the main motor can start, distribution of lubricating oil at the same time the body and piping for lubrication. Failure occurs when the lubrication system, oil pressure is reduced, the piston under the action of the spring reset, travel switch off contact, signal control console is in failure, the main motor power, the machine stopped running.

Work consists of scraper and the rotor. Installed in the column on the set of two pieces of scraper and installed on the rotor of the three pieces of scraper, driven by the reducer output shaft relative motion. Two pieces of bottom scraper with hard alloy welded at the bottom of the knife block, in order to reduce wear and tear.

The main motor driven hollow shaft by hollow shaft driven in scraper. Rotor motor drives the rotor shaft, drive the rotor and
scraper relative motion. Reducer is fixed below the sand mixer chassis, the cabinet is equipped with a magnetic oil plug is used
to collect scrap iron in lubricating oil, in order to reduce the gear and bearing wear, prolong its service life.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Company Profile

Packing & Delivery

FAQ

1. who are we?
We are based in Shandong, China, start from 2020,sell to Eastern Asia(50.00%),Africa(30.00%),Mid East(20.00%). There are total
about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
foundry machinery,Clay sand equipment,Resin sand equipment,Coating sand equipment,Old sand recycling equipment

4. why should you buy from us not from other suppliers?
The company has a long history and strong service and operational capabilities, as well as customization capabilities

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,German

Our service:

1.Machine guarantee one year except damage by human wrong operation caused.

2.Provide installation drawings, pit

design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...

3.We can go to your factory to guiding installation and train your stuff.
