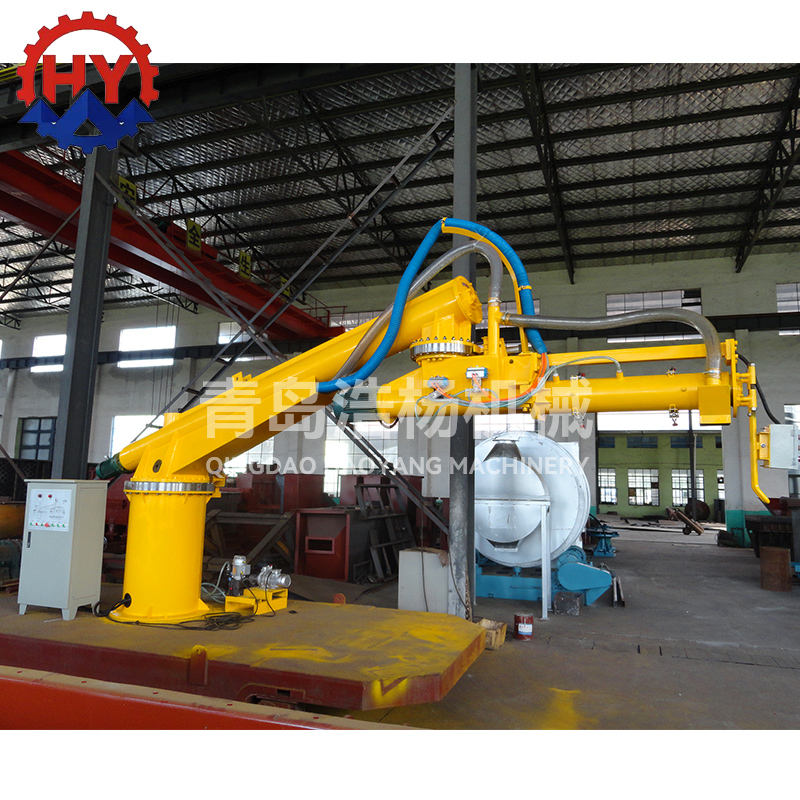

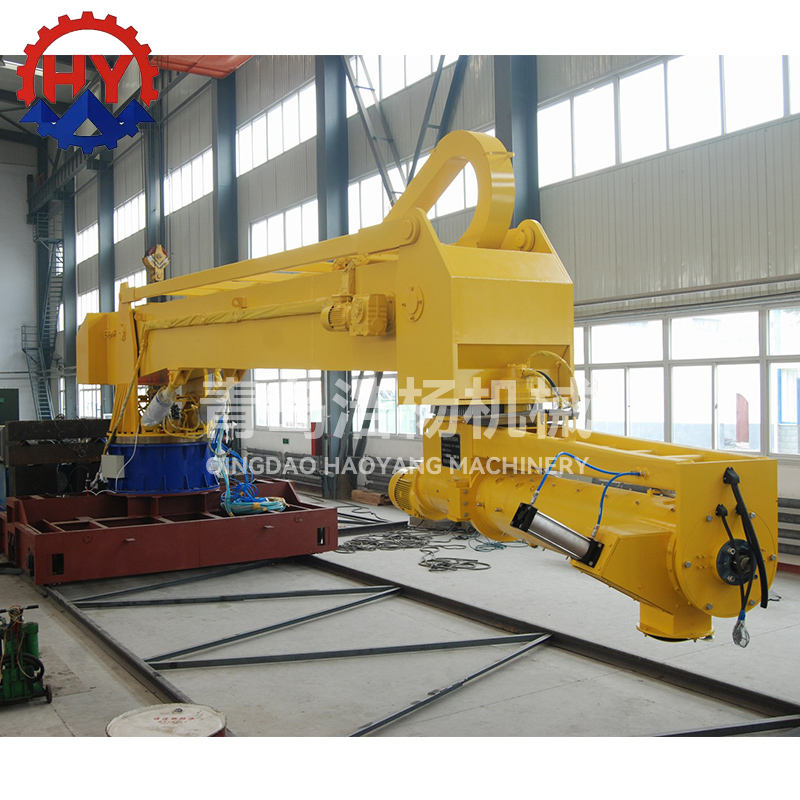

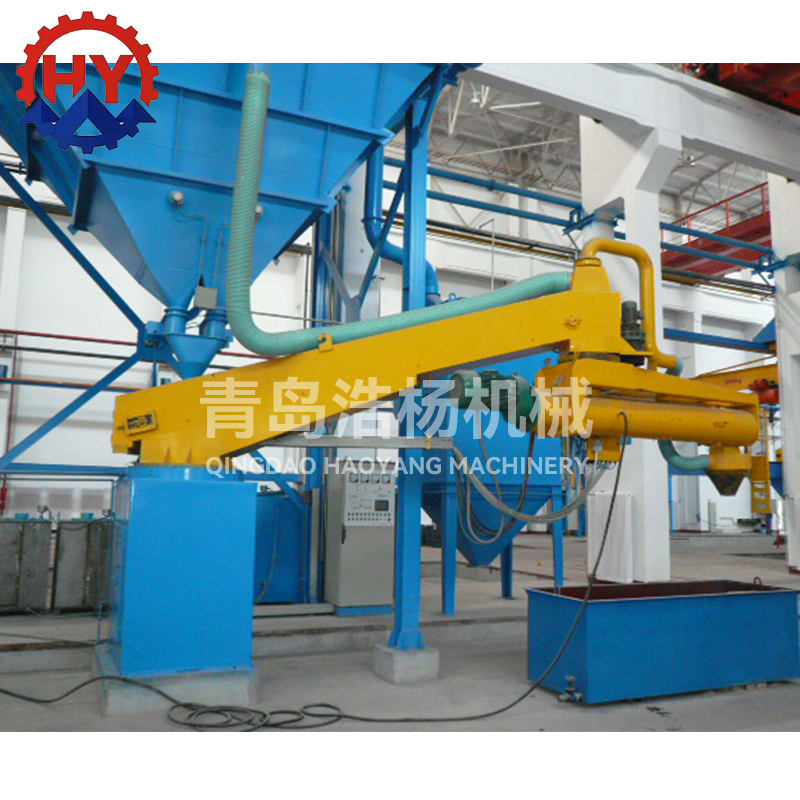

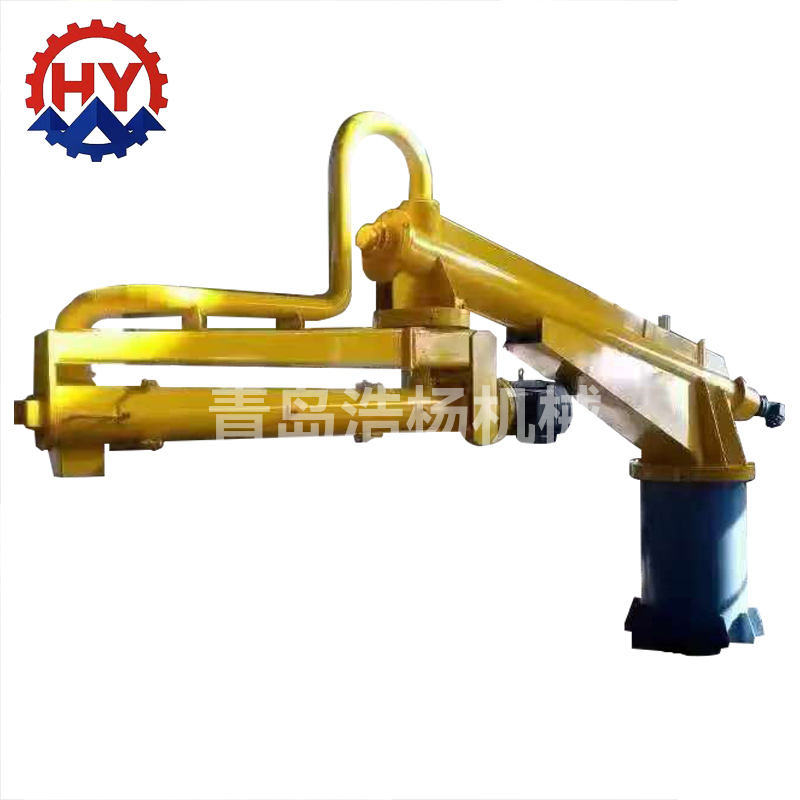

Automatic Double Arm Resin Sand Mixer Furan Alkali Phenolic Resin Mixture Machine for Metal Casting Machinery

Automatic Double Arm Resin Sand Mixer Furan Alkali Phenolic Resin Mixture Machine for Metal Casting Machinery

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Purpose:

It is widely used in the mixing of self hardening sand for large cast iron, cast steel and other castings. The machine is a elevating sand mixer, which is easy to operate and has fullfunctions . It can be adjusted and selected according to diferentcharacteristics of resin sand technology. The machine is mainly composed of sand mixer,traveling mechanism, sand hopper, electriccontrolsystem,air control system, dust removal system, etc.

Professional resin sand processing equipment

00:08

01:00

Technical Parameter

item	value
weight (kg)	7000
warranty	1 years
place of origin	China
brand name	Qingdao Haoyang Casting Machinery Co., Ltd.
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, motor
material	Metal / Coil
producivity(t/h)	3-5/8-10/10-12/12-15/18-25/25-30
key selling points	Easy to Operate
After-sales Service Provided	Engineers available to service machinery overseas
Color	Customers Requirement
Application	Steel plate, beam, pipe, profile, channels etc
Frequency controller	Included

Detail technical data,pls confirm with supplier.

The machine is mainly composed of sand mixer,traveling mechanism, sand hopper, electriccontrolsystem,air control system, dust removal system, etc

Product Application

It is widely used in the mixing of self hardening sand for large cast ron, cast steel and other castings.

It can be adjusted and selected according to diferentcharacteristics of resin sand technology.

Product Features

The binder supply system adopts advanced gear pump, diaphragm pump, liquid detector and accurate measurement. Short mixing time,less head and tail sand. Flexible rotation of both arms, large operation area.

lt adopts split type sand mixing tank with stainless steelinner lining for easy cleaning and maintenance;sand mixing blade is inlaid withhard alloy cutter head for long service life.

The machine head is equipped with head and tail sand control device and odor and dust removal device.

This series of double arm continuous resin sand mixer is mainly used for mixing resin self hardening sand and sodium silicate sand.

The fully open mixing cage wall is convenient for blade cleaning or adjustment and convenient for blade cleaning or adjustment and O convenient for operation and maintenance. The electric appliance is controlled by PLC, with sufficient restriction and protection, analog screen display, stable and reliable operation, and automatic production.controlled by frequency conversion, which can realize fast and slow action; the safety systemis equipped with balance weight, track cleaning and audible and visual alarm devices.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Advantages of resin sand processing equipment

Sand abrasion groove plate and the blade have less abrasion and the engine temperature is lower and mixing sand is uniform, when sand is being mixed.

Workshop

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering
an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing,
installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to become a manufacturer of high-quality casting machinery and smelting equipment!

Company Profile

Packing & Delivery

FAQ

1. who are we?
We are based in Shandong, China, start from 2020,sell to Eastern Asia(50.00%),Africa(30.00%),Mid East(20.00%). There are total
about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
foundry machinery,Clay sand equipment,Resin sand equipment,Coating sand equipment,Old sand recycling equipment

4. why should you buy from us not from other suppliers?
The company has a long history and strong service and operational capabilities, as well as customization capabilities

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,German

Our service:

1.Machine guarantee one year except damage by human wrong operation caused.

2.Provide installation drawings, pit

design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing

lists...

3.We can go to your factory to guiding installation and train your stuff.
