Hook Type Automatic Shot Blasting Cleaning Machine for Castings Forgings Steel Structures

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product description

Equipment Usage

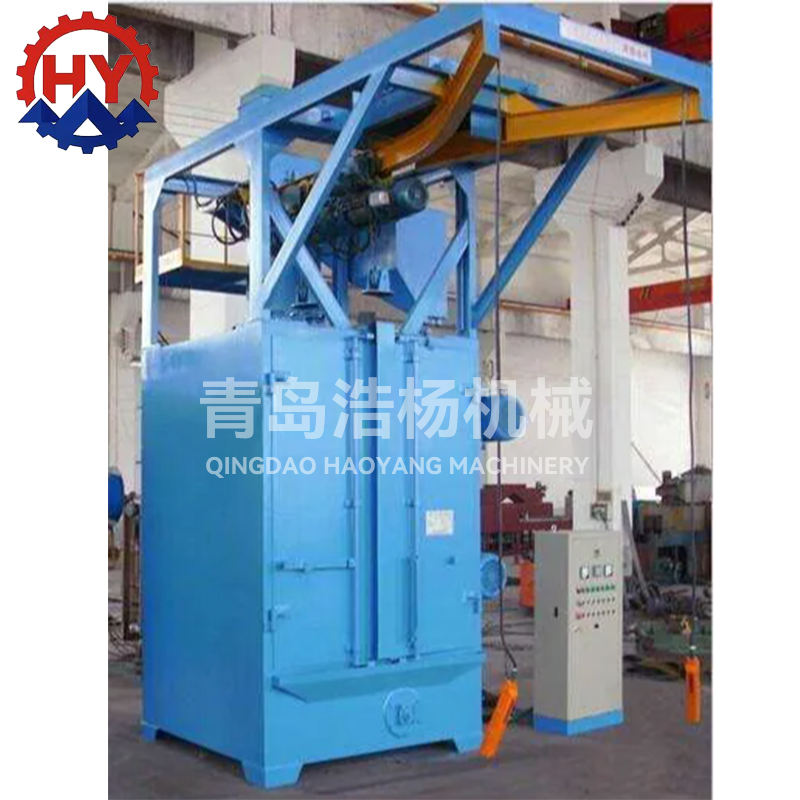

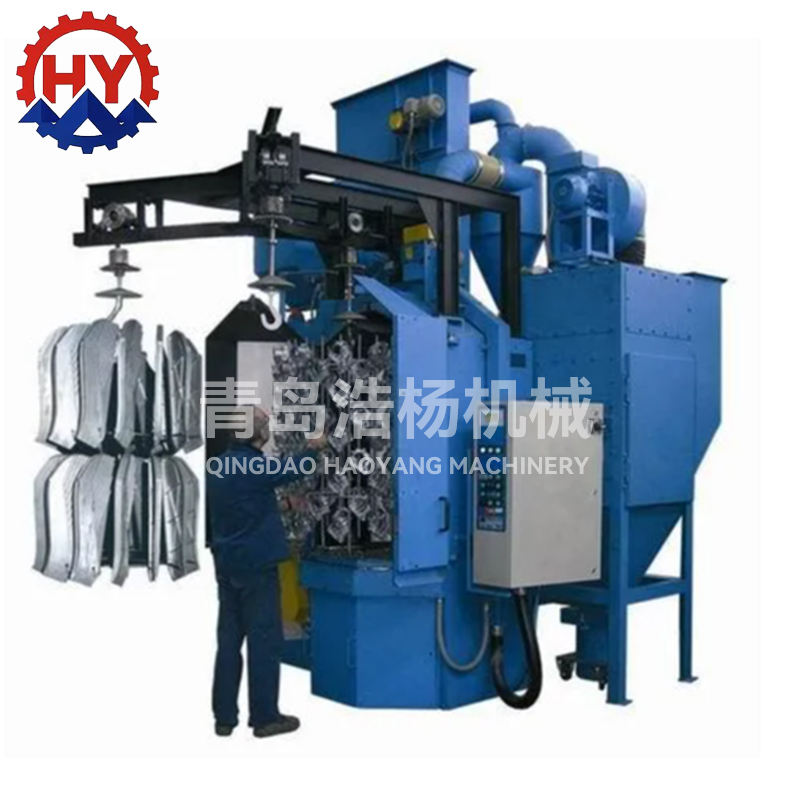

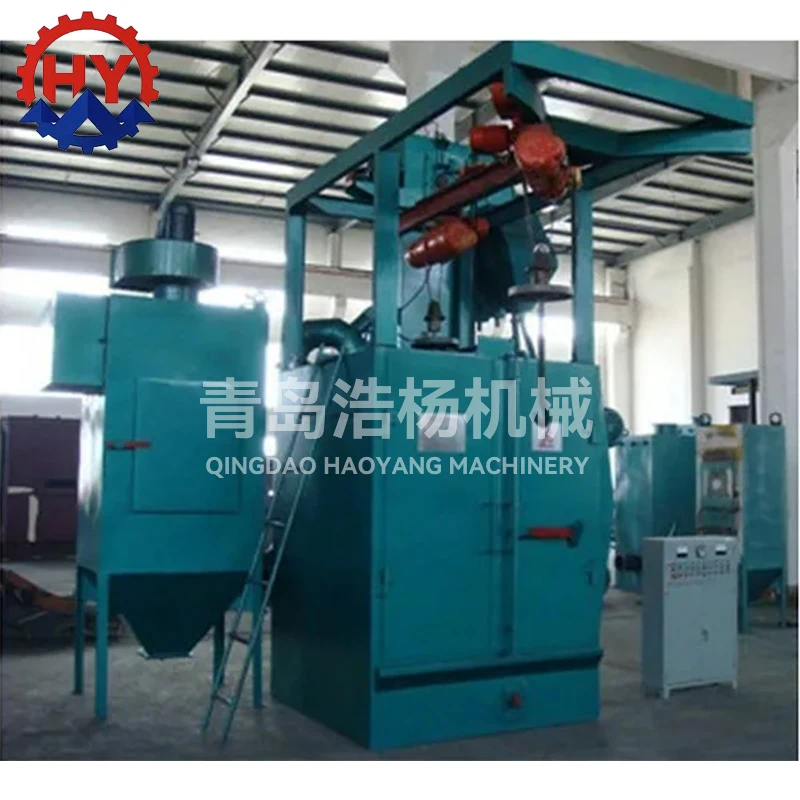

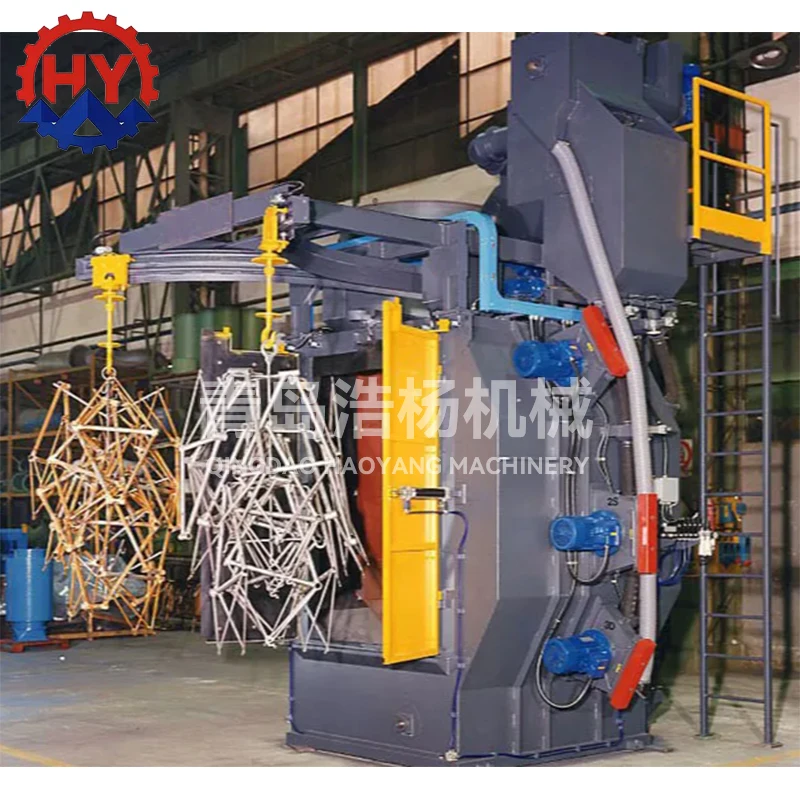

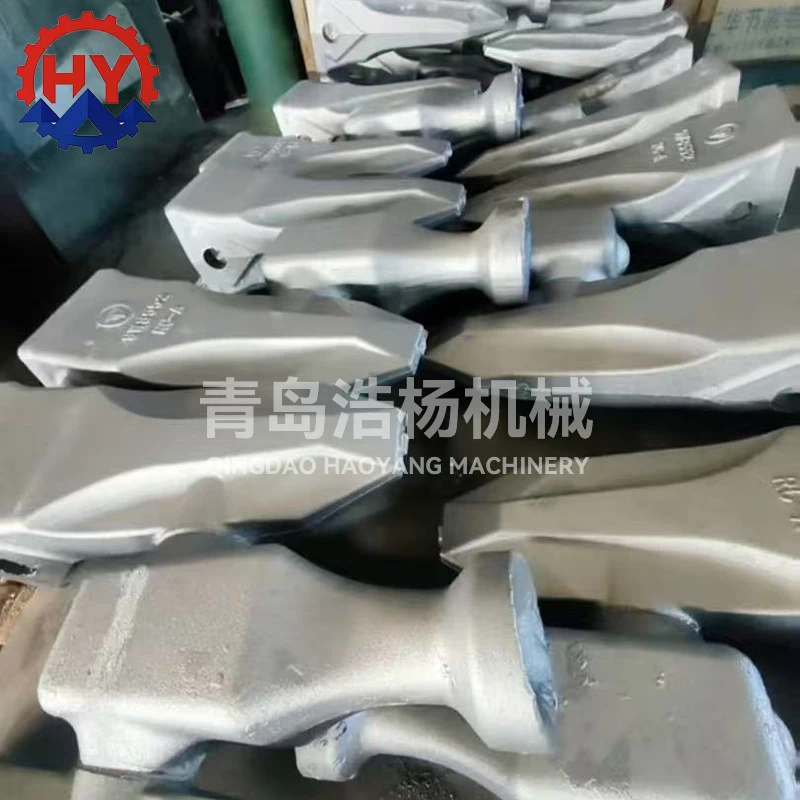

The hook-through shot blasting machine is suitable for the surface cleaning or strengthening of medium and small castings, forgings, and heat-treated parts in batches. The workpieces can run continuously along with the hanging chain, or an advanced accumulating push-rod overhead chain can be used to convey the workpieces. It enables fixed-point loading and unloading of workpieces and fixed-point shot blasting cleaning in a stationary state.

YTQ series of hook type shot-blasting machine

Features:

Tumbling belt shot blasting machine is used for surface cleaning,rust removing,product intensifying for all kinds of medium and
small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes
workpieces.
Q32 Series tumble belt shot blasting machine has advantages of advanced design,reasonable structure,low energy consumption and high efficiency.

Advantages:

1. Wide application, Easy to install and use.
2. Customized, Meet your needs.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
4. Exquisite appearance (mature craft).
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
7. Factory direct selling with competitive price.
8. Over 10 years' production experience.
9. Professional design team to serve you.
10. Mainly electrical control system adoptsinternational brand.
11. CE certificate assure you our quality.

High cleaning effect

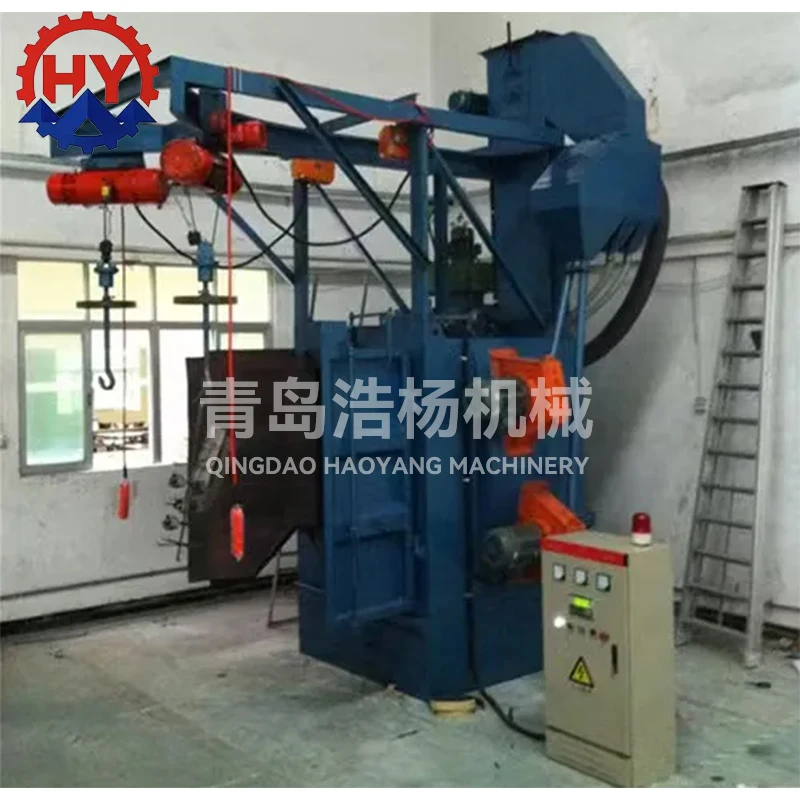

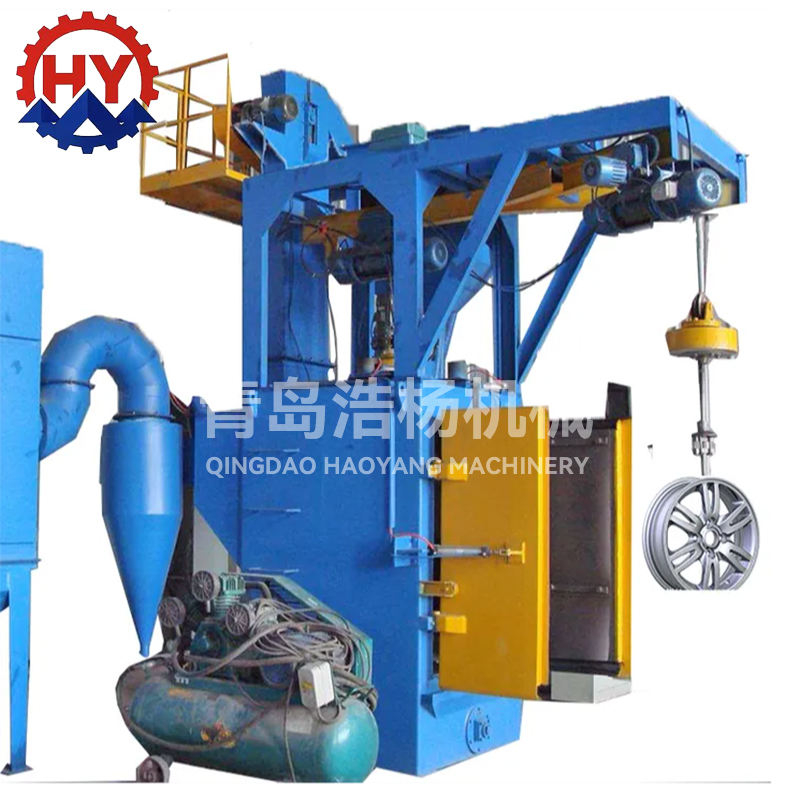

This machine use 2 sets electric hoists, hooks with invert and rotation function, the workpiece can be blasting while rotating.

Electric Control System

Model:Automatic or manual type
Control Unit: PLC .
P L C: Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel .

Specification

Product Paramenters

item	value
power(w)	According to customer requirements
weight (kg)	4000
use	Burnishing, Container / Bottle Cleaning, Deflashing
cleaning process	high pressure cleaning
warranty	1 Year
place of origin	China
brand name	Haoyang
video outgoing-inspection	Provided
machinery test report	Provided
core components	PLC, Engine, Bearing, Gearbox, motor, Pressure vessel
key selling points	Easy to Operate, Famous brand PLC, Remote Control, Competitive Price, Long Service Life

Packing & Delivery

Company Profile

Qingdao Haoyang Casting Machinery Co., Ltd. was established in 2016.
Qingdao Haoyang Casting Machinery Co., Ltd. is located in Qingdao, the hometown of cast-ing, a world-famous coastal city. Covering an area of about 16,000 m', it is a professional equipment manufacturing company integrating design, development, manufacturing, installation and after-sales service.
20-200 tons/h clay sand mechanized molding line sand treatment equipment
Annual output of 1000-10000 tons Casting self-hardening resin sand production line equipment Annual output of 1000-6,000 tons
Casting water glass sand production line equipment
Annual output of 3000-6,000 tons Casting thermal coating sand production line equipment
V-style modeling production line equipment and stand-alone supporting equipment
Disappearing mold production line engineering and stand-alone supporting equipment
Molding machine, molding machine, sandblasting machine, electric furnace, wire feeding machine, environmental protection dust
collector and other casting machinery and smelting equipment
Qingdao Haoyang Casting Machinery Co., Ltd. will adhere to innovation, continue to improve quality service, and make efforts to
become a manufacturer of high-quality casting machinery and smelting equipment!

FAQ

1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation shot blasting machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of shot blasting machine?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. How it control for whole work?
When the mold of the desander box enters the cylinder bodyand rotates to a certain height with the cylinder body, it falls tothe
bottom of the cylinder body by self weight. Under the constantimpact and friction between them, the sand mold and the castingare
separated and reach the grid part of the cylinder body alongthe direction of the spiral piece. The sand enters the old sand system
and thecasting is discharged from the discharge port.

Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit
design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing
lists...
3.We can go to your factory to guiding installation and train your stuff.
